Circle Thermoelectric Cooler from reliable thermoelectric cooler suppliers. High-performance, compact and customizable TEC cooling modules for temperature control, laser, semiconductor, medical and electronics applications. 🟧 Price List Contact Customer Service 🟦 Product Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
| Item | Characteristic Value | Condition | |
|---|---|---|---|
| Maximum Temperature Difference Current | Imax | 3.5A | Th=30℃ |
| Maximum Temperature Difference Voltage | Vmax | 8.15V | Th=30℃ |
| Maximum Temperature Difference | ΔTmax | ≥67℃ | Qc=0 Th=30℃ |
| Maximum Cooling Power | Qcmax | 16W | ΔT=0 Th=30℃ |

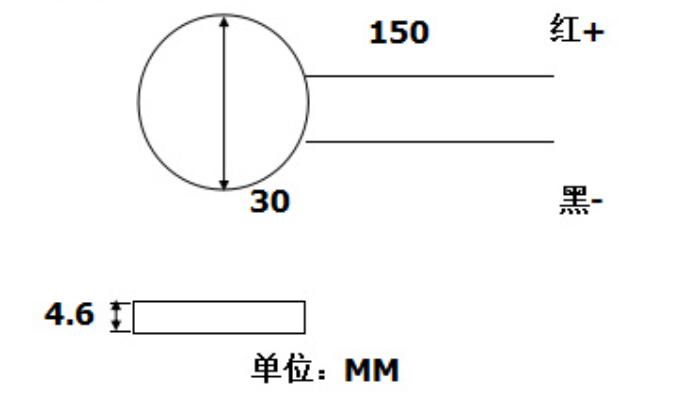

| External Dimensions | Diameter φ30, Thickness 4.6 | ||
| Flatness | ≤0.05mm | ||
| Packaging | Foam + Carton | ||
| Operating Temperature Range | TR | -50 ~ 80℃ | Thickness subject to the actual product |
| Power Lead Wire | 20AWG PVC wire, length 150mm, customizable length as required | ||

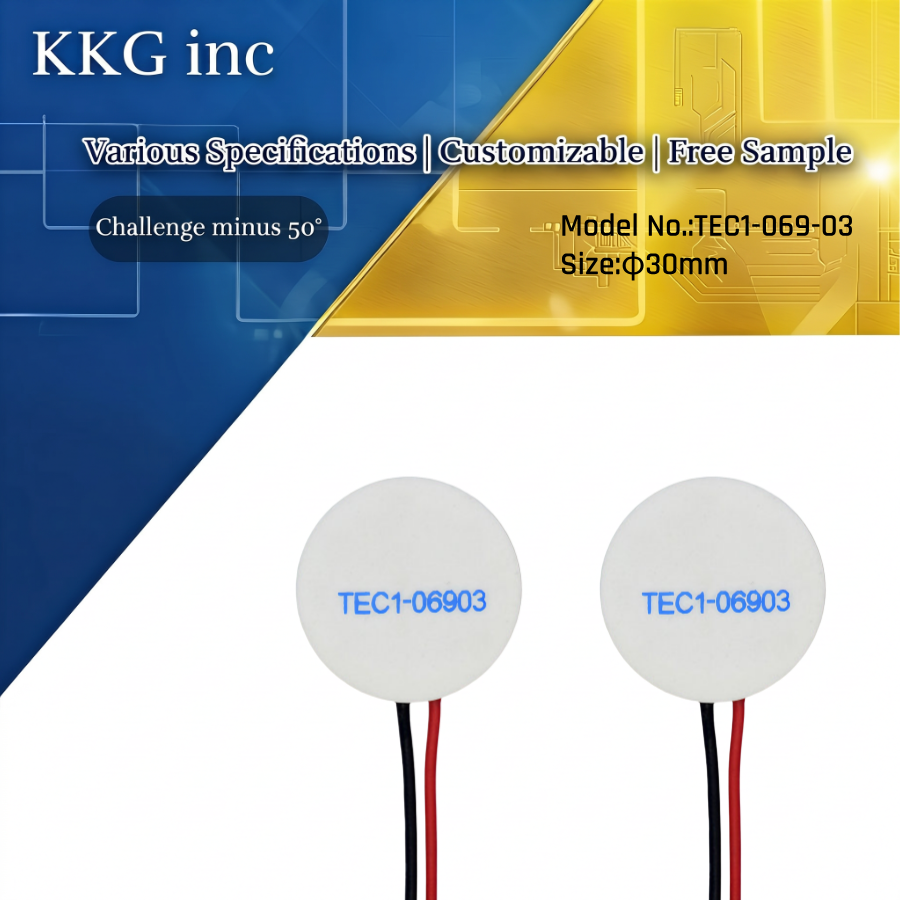

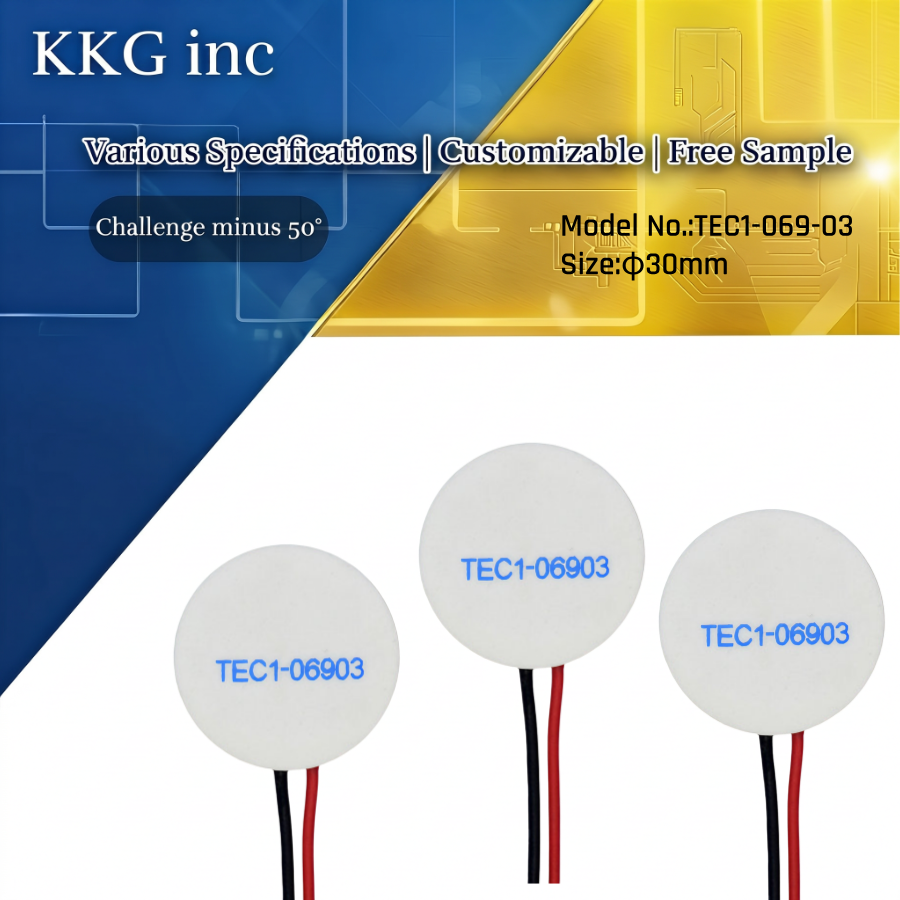

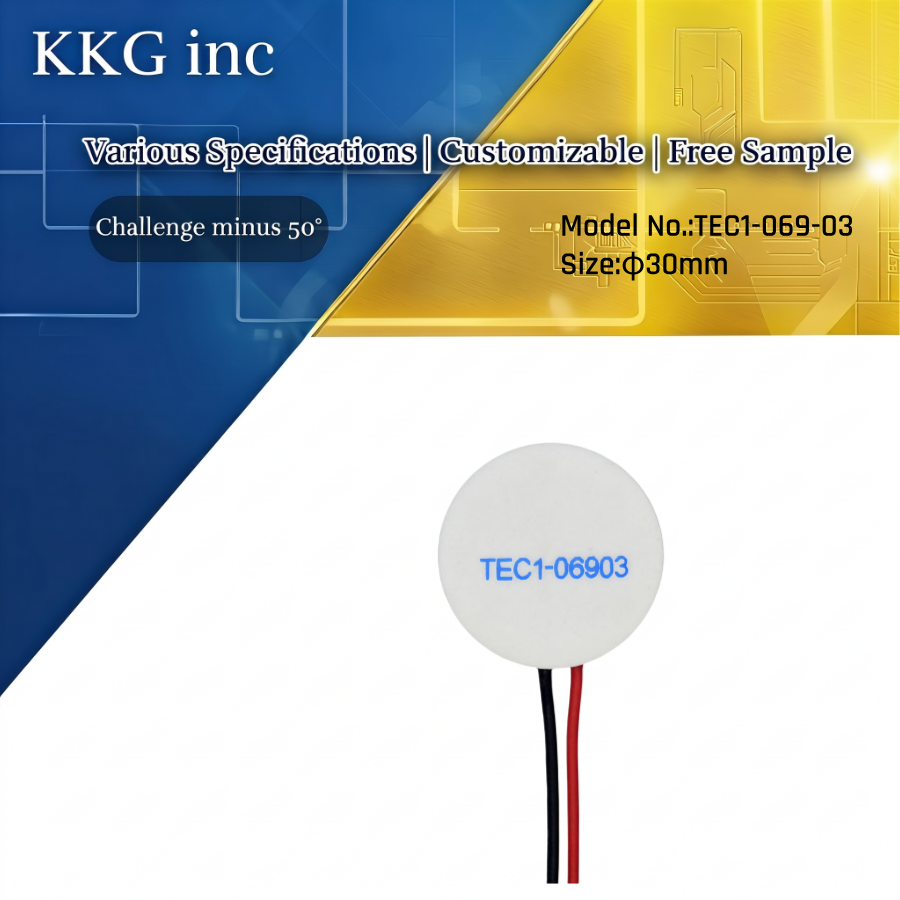

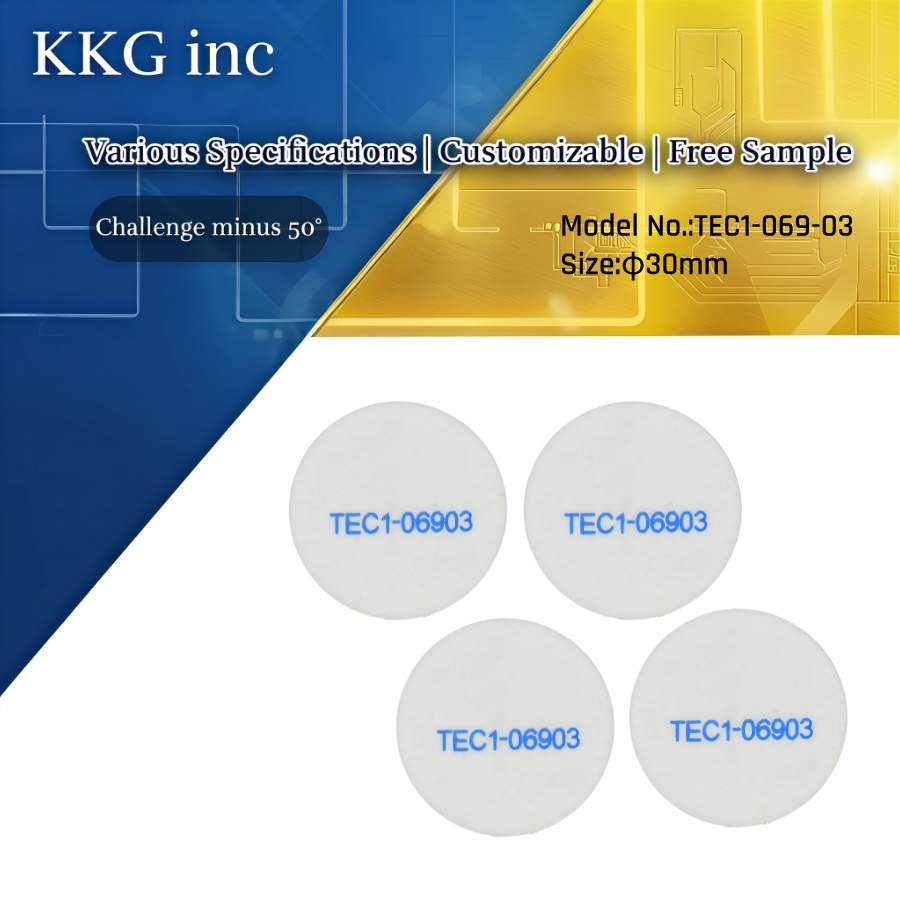

The Circle Thermoelectric Cooler is a compact solid-state cooling module designed for applications requiring precise temperature control in a circular or space-constrained installation area.
Unlike conventional compressor-based cooling systems, thermoelectric cooling modules have no moving parts and can provide direct, reliable temperature control. The circular structure is particularly useful for specialized equipment where the cooling area or installation space has a round geometry.
As experienced thermoelectric cooler suppliers, we can provide standard TEC cooling modules as well as customized thermoelectric cooling solutions for OEM applications.
The Circle Thermoelectric Cooler can be configured for different voltage, current, cooling capacity, dimensions and temperature requirements, making it suitable for precision thermal management across multiple industries.
The circular structure is suitable for specialized cooling systems and equipment with round installation spaces.
The compact solid-state design helps save installation space and allows easy integration into thermal management systems.
Thermoelectric cooling technology enables accurate temperature regulation for sensitive components and equipment.
The TEC module operates without compressors, motors or refrigerants, reducing mechanical complexity.
Dimensions, electrical parameters, wires and other specifications can be customized according to application requirements.
Customized thermoelectric cooling modules are available for OEM equipment manufacturers and system integrators.
The Circle Thermoelectric Cooler can be used in a wide range of precision temperature control and thermal management applications.
Used for temperature stabilization of laser sources, laser diodes and optical components.
Suitable for semiconductor devices, sensors and precision electronic components requiring controlled operating temperatures.
Can be integrated into medical and diagnostic equipment requiring localized temperature control.
Suitable for optical sensors, detectors and precision optical instruments.
Provides localized cooling for electronic components and temperature-sensitive devices.
Can be integrated into industrial temperature control systems and specialized cooling equipment.
Thermoelectric cooling modules can be used as components in compact industrial cooling and thermal management systems.
The Circle Thermoelectric Cooler generally consists of thermoelectric semiconductor elements, ceramic substrates, electrical connections and external lead wires.
The internal semiconductor elements are electrically connected between the ceramic plates. When DC power is applied, heat is transferred from one side of the module to the other, creating a cold side and a hot side.
The circular structure can be customized according to the required cooling surface, mounting area and system configuration.
The Circle Thermoelectric Cooler works based on the Peltier effect.
When direct current passes through the semiconductor elements inside the TEC module, heat is absorbed at one surface and released at the opposite surface. The heat-transfer direction depends on the polarity of the applied DC power.
By reversing the power polarity, the cold side and hot side can be switched.
The TEC system normally requires an appropriate heat dissipation solution on the hot side. A heat sink, water cooling system or other thermal management method can be selected according to the heat load and operating conditions.
A Circle Thermoelectric Cooler is a circular TEC module that uses the Peltier effect to transfer heat from one side to another for cooling or heating applications.
Yes. We provide thermoelectric cooling modules and customized TEC solutions for OEM customers, distributors, equipment manufacturers and system integrators.
Yes. The diameter, thickness, electrical specifications, cooling capacity, lead wires and other parameters can be customized according to application requirements.
Yes. Different TEC configurations can be selected according to the required cooling capacity, temperature difference, current and operating conditions.
They can be used for laser cooling, semiconductor temperature control, medical equipment, optical equipment, electronics cooling and industrial temperature control.
Yes. We support OEM and customized thermoelectric cooling module projects, including dimensions, electrical parameters, wires and structural requirements.
The TEC should be selected according to cooling load, target temperature, hot-side temperature, operating voltage, current, available space and heat dissipation conditions.
Yes. We support bulk orders and provide thermoelectric cooling modules for distributors, OEM manufacturers and industrial equipment suppliers.
