We supply high‑quality TEC1‑06303 30*15 mini peltier heater cooler module, dual‑use heating cooling peltier element for AI industry, industrial temperature control, laboratory & medical equipment. Support OEM, custom thermoelectric heating cooling plate, wholesale available. 🟧 Price List Contact Customer Service 🟦 Product Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|---|---|---|---|---|---|---|
| In APE | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) | |

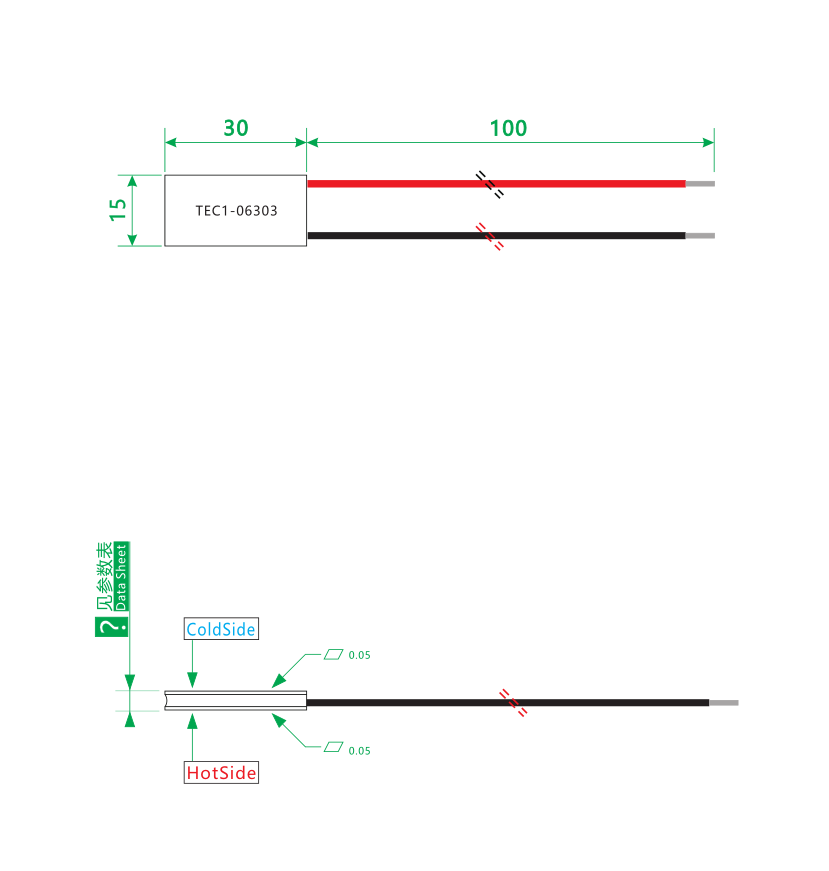

| TEC1-06303 | K10 | 60 | 1.98 | 7.6 | 3 | 23 | 15×30×3.0 |
| K14 | 65 | 15×30×3.4 | |||||
| K18 | 70 | 15×30×3.8 |
| Item | Specification |
|---|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.2mm (sintered process) |
| Lead Wire | Silicone wire 24AWG / L=100mm |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 0.5kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh |
Our TEC1‑06303 3015 mini peltier heater cooler is a compact dual‑use heating cooling peltier element, specially‑designed for AI industry temperature management. This small‑size peltier heater cooler module delivers reliable semiconductor temperature control without refrigerant, achieving precise heating and cooling in limited installation space. Different from large size peltier heater cooler or high power peltier heater cooler, this 3015 mini thermoelectric component features ultra‑small footprint, which perfectly matches compact AI computing hardware, miniature cabinet thermostat and precision electronic cooling projects. As a professional peltier heater cooler supplier, we can provide wholesale thermoelectric cooler service, OEM peltier heater cooler module and custom peltier heating cooling plate to meet your unique project requirements.
Based on the Peltier effect, this peltier heater cooler thermoelectric component can transfer heat from one ceramic side to another when direct current passes through. By reversing the DC current direction, the hot side and cold side will swap, realizing dual‑use heating cooling function. It achieves contact‑free solid‑state temperature regulation for AI equipment and other precision devices, no compressor or cooling fluid required.
Q1: Can this TEC1‑06303 30*15 mini peltier heater cooler work for AI chip cooling?
A1: Yes, this compact dual‑use heating cooling peltier element is specially optimized for AI industry miniature temperature‑control projects.
Q2: Are you a peltier heater cooler supplier that supports OEM service?
A2: Sure, we offer OEM peltier heater cooler module and custom peltier heating cooling plate, you can send your drawing for custom‑made requirement.
Q3: Can I buy this mini thermoelectric component in bulk?
A3: Wholesale thermoelectric cooler service is available, competitive bulk price for distributors and project buyers.
Q4: What is the difference between this mini model and high power peltier heater cooler, large size peltier heater cooler?
A4: High‑power & large‑size models are for heavy‑load industrial chiller, this 30*15mm mini‑type is designed for small‑space, low‑power precision temperature management like AI hardware.
