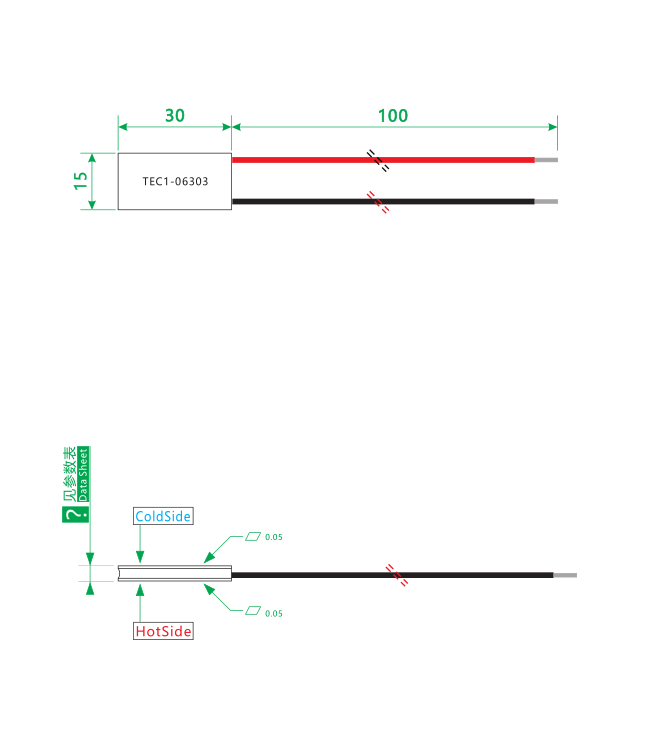

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-06303 | K10 | 60 | | | | | 15×30×3.0 |
| K14 | 65 | 1.98 | 7.6 | 3 | 23 | 15×30×3.4 |
| K18 | 70 | | | | | 15×30×3.8 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.2mm (sintered process) |
| Lead Wire | Silicone wire 24AWG / L=100mm |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 0.5kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh |

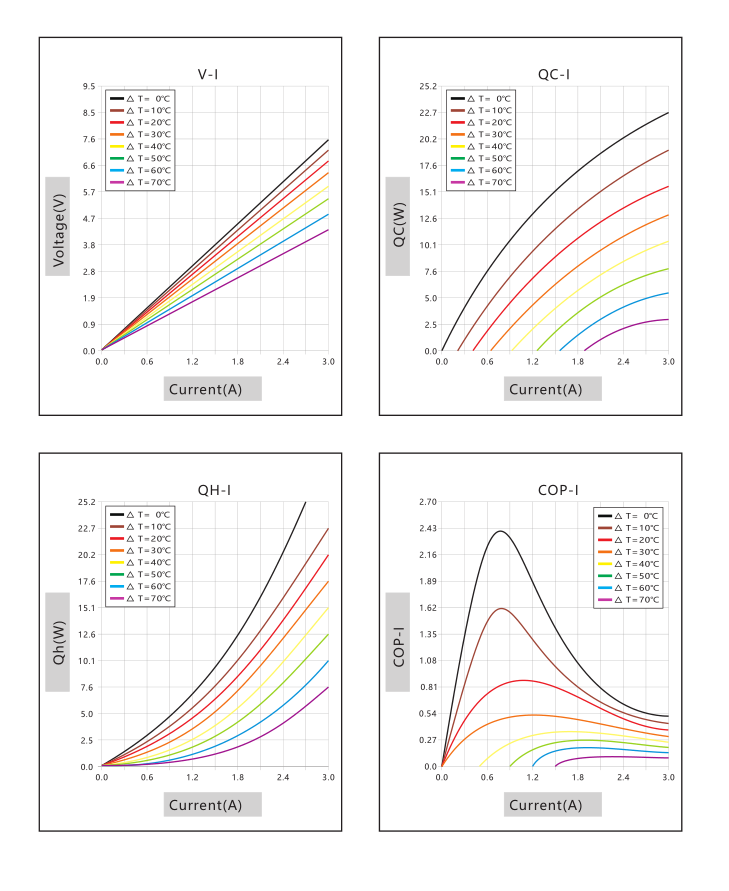

🔷 Performance Curve
![]()
🔷 Product Overview
Our Mini Peltiers 30*15mm For Automotive TEC1‑06303 is a compact thermoelectric generator module designed for heat‑to‑power conversion. This small‑size thermal generator can capture waste heat and convert thermal energy into usable electricity. It is widely used for automotive waste heat recovery, stove thermoelectric power generation, industrial thermal energy harvesting and other off‑grid power‑supply projects. As a reliable thermoelectric generator supplier, we provide wholesale thermal generator module and OEM TEG generator module service to global buyers.
🔷 Product Features
- Ultra‑compact dimension: 30*15mm mini footprint, perfect for narrow‑space automotive installation
- Stable heat‑to‑power output, ideal for waste heat recovery projects
- High‑quality semiconductor ceramic substrate, good thermal conductivity
- Support custom thermoelectric power‑generation plate modification, OEM and wholesale bulk orders
- No moving parts, vibration‑free, maintenance‑free long‑time operation
🔷Product Applications
- Automotive waste heat recovery systems
- Industrial thermal energy harvester equipment
- Stove thermoelectric power generation
- Small‑scale heat‑to‑power off‑grid power supply
- Custom thermal power‑generation test projects
🔷 Product Structure
![]()
🔷Operation Principle
This thermal generator works on the Seebeck effect. When there is a stable temperature difference between the hot side and cold side of the peltier module for heat‑to‑power, thermal energy will be converted directly into DC electric power. The bigger the temperature gap, the higher the output voltage and generating power.
🔷FAQ
Q1: Can this 30*15mm mini peltier module be used for waste heat recovery?
A1: Yes. TEC1‑06303 is a compact thermoelectric generator well‑suited for low‑medium temperature waste‑heat‑to‑power conversion.
Q2: Do you offer wholesale thermal generator module bulk price?
A2: We are a professional thermoelectric generator supplier, we support wholesale, large‑volume discount and OEM TEG generator module customization.
Q3: Can you make custom thermoelectric power‑generation plate with special size?
A3: Custom thermal generator solutions are available, you can send us your technical drawing and requirement for quotation.
