I. The Semiconductor  cooler‘s Physical Characteristics

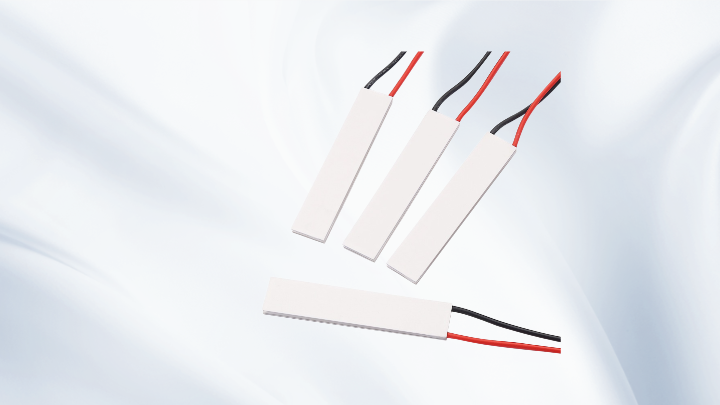

Dimension and Structural Optimization Ultra-thin elongated design:

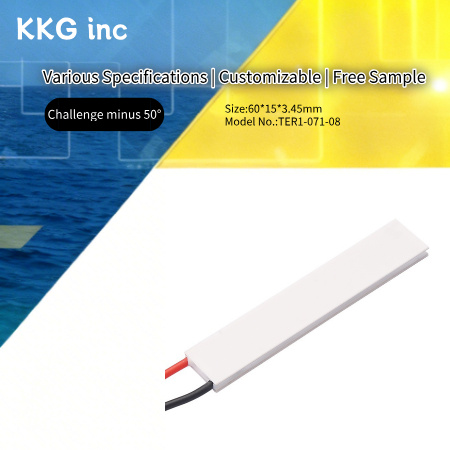

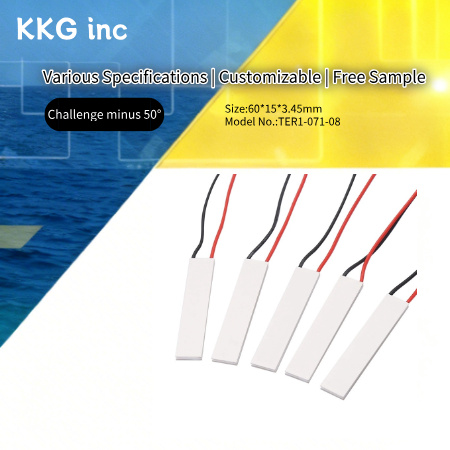

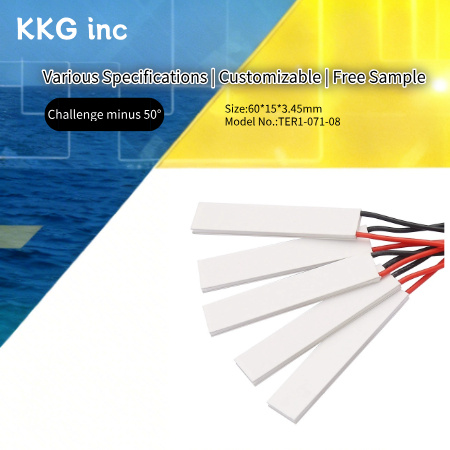

Length 60mm, width 15mm, thickness only 3.45mm, suitable for embedding in confined spaces (e.g., electronic device heat sinks, miniature instrument interiors). Thermocouple pair arrangement: To accommodate the elongated structure, thermocouple pairs may be densely arranged along the length to enhance cooling/heating efficiency. Lightweight: Compact size and low weight (ranging from a few grams to over ten grams) facilitate integration into portable or wearable devices.

2. Material and Process Upgrades

a. High-Density Welding: Utilizes laser welding or ultrasonic welding technology to ensure stable thermocouple connections within ultra-thin structures.

b. Flexible Substrate (Optional): Select models may employ flexible printed circuit (FPC) substrates to accommodate curved surface installations (e.g., wearable devices).

c. Miniaturized Packaging: Surface may be coated with an ultra-thin insulating layer (e.g., polyimide film) to balance moisture resistance and heat dissipation.

II. Semiconductor  Heat sink'S Performance Parameters

A. Cooling/Heating Capacity

1. Enhanced Power Density: Higher cooling power per unit area (e.g., ≥50W/cm²), though total power is constrained by dimensions (typically ranging from several watts to tens of watts).

2. Temperature Differential Response: Extremely thin thickness shortens heat conduction paths, enabling faster establishment of temperature differentials between hot and cold ends (perceptible temperature changes within 30 seconds after power-on).

3. Heating Efficiency Optimization: Concentrated heat release in heating mode suits localized rapid warming (e.g., thawing electronic components, medical heat therapy). Electrical Characteristics

4. Low-Voltage Drive: May support 5V or 12V low-voltage inputs, compatible with portable device power sources (e.g., USB-powered).

5. Current Control: Requires precise regulation of operating current (e.g., 0.1A–2A) to prevent damage from localized overheating in the ultra-thin structure.

6. Internal Resistance Design: Resistors may feature lower values (e.g., ≤0.05Ω) to minimize energy loss and enhance energy efficiency.

B. Efficiency and Dynamic Response

1. Rapid Temperature Adjustment: Supports PWM (Pulse Width Modulation) control for millisecond-level temperature regulation (e.g., ±0.5℃ accuracy).

2. Minimal Thermal Inertia: Lightweight construction and low thermal mass enable short temperature fluctuation recovery times (e.g., ≤5 seconds).

III. Semiconductor cooling fin's Reliability and Adaptability

A. Enhanced Environmental Adaptability

1. Vibration-Resistant Design: Ultra-thin structures may incorporate reinforced frames or shock-absorbing materials to improve impact resistance (e.g., passing MIL-STD-810G vibration testing).

2. Expanded Temperature Range: Optimized soldering materials may extend temperature tolerance to -50°C to +150°C (short-term peak temperatures).

3. Dust and Water Resistance: Select models may achieve IP65 protection rating for outdoor or industrial environments.

B. Lifespan and Stability

1. Extended Lifespan Testing: Withstands 100,000 thermal cycles (-20°C to +80°C) while maintaining over 100,000 hours of operational life.

2. Uniformity Optimization: Laser cutting or chemical etching ensures even thermocouple distribution to prevent localized overheating.

IV. Application Scenarios

a. Consumer Electronics

Mobile Phone/Tablet Cooling: Embedded behind processors to rapidly dissipate heat and prevent throttling.

Wearable Devices: Integrated into smartwatches and AR glasses for localized cooling (e.g., reducing skin contact temperature).

Portable Cooler/Warmer: Serves as core cooling element for lightweight, low-power refrigeration.

b. Industrial & Medical

Micro-Lab Equipment: Enables precise temperature control in DNA sequencers and micro-reactors.

Medical Cold Packs: Combined with flexible substrates to create adhesive cold packs for post-operative pain relief or fever reduction.

Laser cooling: Provides efficient heat dissipation for high-power laser diodes, extending operational lifespan.

c. Specialized Applications

Aerospace electronics: Cooling for miniature instruments in satellites or spacecraft, adapted for extreme temperature environments.

Infrared detection: Maintains stable low-temperature conditions for infrared sensors, enhancing detection sensitivity.

Quantum computing: Serves as a component in cryogenic cooling chains, assisting in cooling qubits to millikelvin levels.
