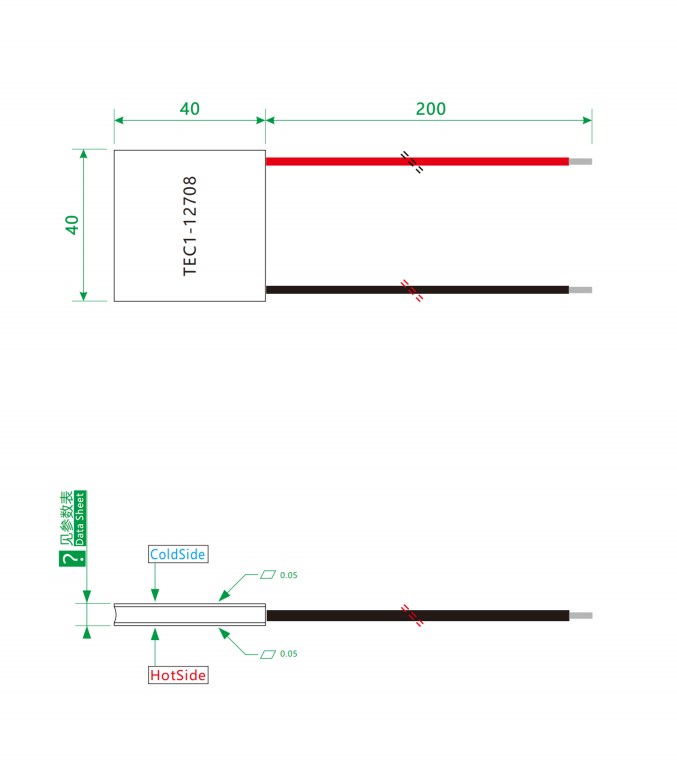

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12708 | K10 | 60 | | | | | 40×40×3.4 |
| K12 | 65 | 1.48 | 15.2 | 8 | 122 | 40×40×3.6 |
| K14 | 70 | | | | | 40×40×3.8 |
🔷 Additional Performance Spec
| Specification Item | Details |
|---|
| Substrate Specification | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Extra-soft silicone wire, 18 AWG, length = 200 mm |
| Terminal Specification | Standard product without terminals (terminals can be added upon request) |
| Assembly Pressure | 4 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin lead-free solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

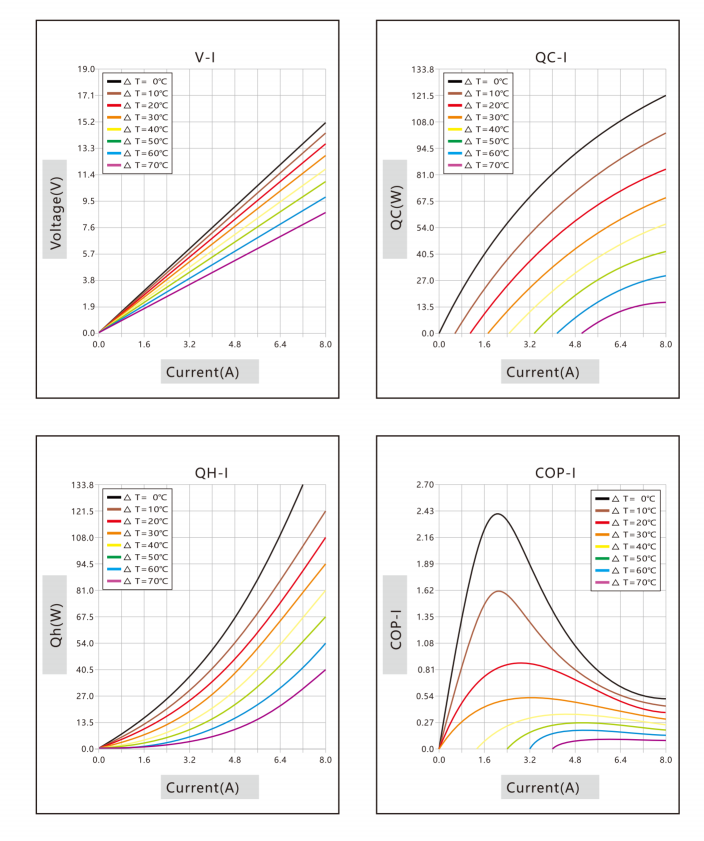

🔷 Performance Curve
![]()
🔷 Product Overview
TEC1‑127‑08 industrial peltier cooler 40403.6mm is a high‑power thermoelectric cooling element manufactured by reliable industrial cooler manufacturer. Unlike passive heat dissipation parts, this peltier module can realize active refrigeration without refrigerant, no vibration and no noise.
We are an experienced industrial chiller producer, this 40x40mm thermoelectric cooler can work independently or be assembled into custom industrial cooling unit. It is widely selected by heavy‑duty industrial cooler supplier for industrial temperature‑control projects, bulk‑order and OEM service are both available.
🔷 Product Features
- Standard 40403.6mm compact dimension, easy‑to‑install, compatible with most standard heat sinks
- Stable high‑power cooling performance, long service life
- Solid alumina ceramic substrate, good insulation & thermal conductivity
- Support custom lead wire, voltage‑matching modification, OEM service from industrial cooler manufacturer
- Refrigeration direction reversible by switching current polarity
🔷Product Applications
This TEC1‑127‑08 40403.6mm industrial peltier cooler is suitable for many high‑precision cooling projects:
Industrial cooler manufacturer for laser equipment：laser module temperature control, laser head cooling
🔷 Product Structure
![]()
🔷Operation Principle/ Work Principle
Based on Peltier effect. When DC current flows through the thermoelectric module, heat will be transferred from one ceramic side (cold side) to another ceramic side (hot side). Continuous refrigeration can be realized when the hot‑side heat is dissipated timely by heat sink. By reversing DC current direction, the module can switch to heating mode. It is the core cooling component for products supplied by industrial cooler manufacturer wholesale.
🔷FAQ
Q1: Are you an industrial cooler manufacturer? Can I buy TEC1‑127‑08 40403.6mm peltier cooler at wholesale price?
A1: Yes, we are a professional industrial cooler manufacturer supplier. Wholesale thermoelectric coolers, bulk‑order industrial chiller parts are supported.
Q2: Can you become OEM industrial chiller manufacturer to make custom industrial cooling unit based on this TEC1‑127‑08 module?
A2: Custom‑made service is available. Our engineering team can offer technical support for your custom industrial cooling unit projects.
Q3: What heat sink do I need to match this 40*40mm industrial peltier cooler?
A3: We recommend 40×40mm size radiator with cooling fan for high‑power working scenario, suitable for high‑power industrial cooler application.
