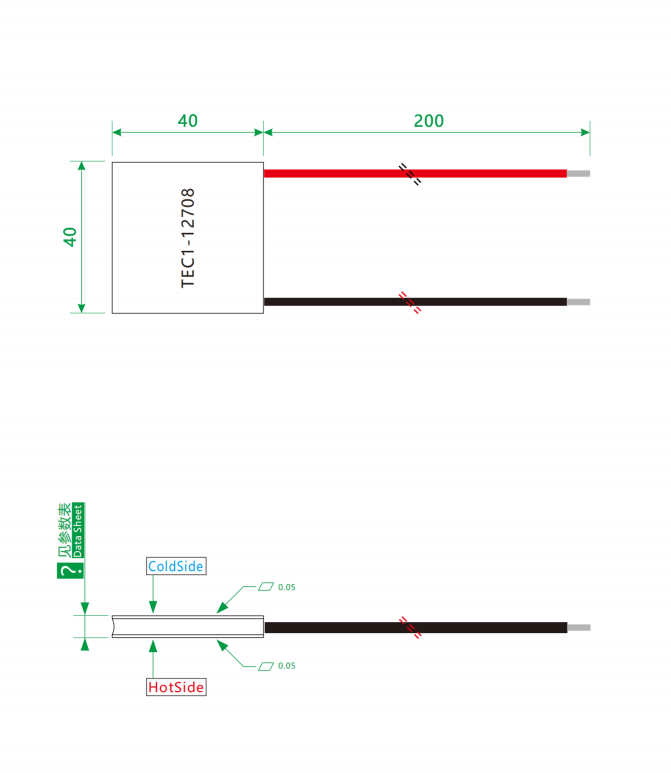

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12708 | K10 | 60 | 1.48 | 15.2 | 8 | 122 | 40×40×3.4 |
| K12 | 65 | | | | | 40×40×3.6 |
| K14 | 70 | | | | | 40×40×3.8 |
🔷 Additional Performance Spec
| Specification Item | Details |
|---|
| Substrate Specification | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Extra-soft silicone wire, 18 AWG, length = 200 mm |
| Terminal Specification | Standard product without terminals (terminals can be added upon request) |
| Assembly Pressure | 4 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin lead-free solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

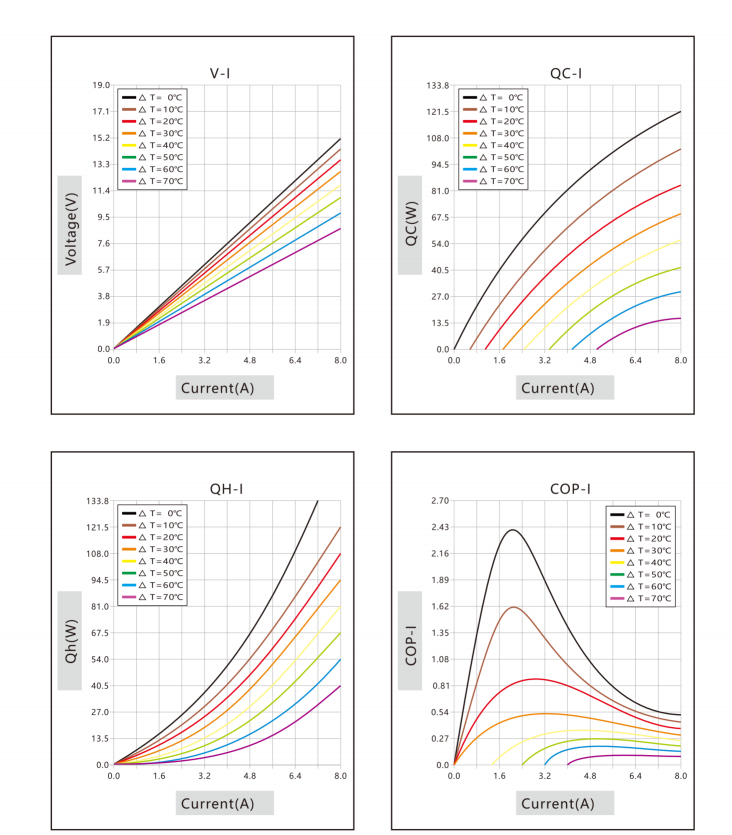

🔷 Performance Curve
![]()
🔷 Product Overview
This Optical TEC Cooler TEC‑12708 4040 peltier module is high‑power solid‑state thermoelectric cooling component. No refrigerant, no noise, rapid cooling response. We are peltier module manufacturer, support peltier module wholesale and bulk peltier module supply. This unit is widely selected by OEM customers for precision temperature control scenarios.
🔷 Product Features
- 40*40mm large ceramic surface, high heat exchange efficiency, belongs to high power peltier module
- Compact solid‑state structure, no vibration, perfect for optical equipment temperature stabilization
- Reversible cooling & heating function, can realize both refrigeration and heating
- Support OEM peltier module and custom peltier module for special dimension & wire requirement
- Stable consistency for bulk order, suitable for mass purchase from peltier module bulk supplier
🔷Product Applications
This 40*40 TEC‑12708 optical peltier module fits multiple industry scenarios:
peltier module for medical cooling
peltier module for cpu cooling CPU
peltier module for dehumidifier
peltier module for beverage cooler
peltier module for lab equipment
peltier module for battery thermal management
Optical instrument laser temperature stabilization
Industrial small chiller equipment
🔷 Product Structure
Top alumina ceramic substrate → N‑type & P‑type thermoelectric pellets → copper conductive tabs → bottom alumina ceramic substrate → lead wires. Two‑sided ceramic insulation structure ensures high‑voltage safety for this peltier module.
🔷Operation Principle/ Work Principle
Based on Peltier effect. When DC current flows through the peltier module, one side absorbs heat for cooling, the other side releases heat. Swap DC current polarity, cooling and heating side will reverse. Realize active precise temperature control without compressor.
🔷FAQ
Q1: Are you peltier module manufacturer? Can I get peltier module wholesale price?
A1: Yes, we are peltier module manufacturer. We support peltier module wholesale and bulk peltier module order, larger quantity gets better unit price.
Q2: Can you do OEM peltier module or custom peltier module for TEC‑12708?
A2: Yes. We support custom wire length, special surface treatment, and OEM marking for this optical TEC cooler. MOQ required for custom peltier module.
Q3: What heat sink should I match for TEC‑12708 4040 peltier module? A3: This is high power peltier module. Must equip high‑efficiency heat sink plus fan, poor heat dissipation will greatly reduce actual ΔT and cooling performance. 问：TEC‑12708 4040 帕尔
Q4: What typical projects use this optical TEC cooler?
A4: Widely used for peltier module for medical cooling, peltier module for lab equipment, battery thermal management, laser instrument temperature control.
Q5: What is the lead‑time for bulk peltier module order?
A5: Standard TEC‑12708 4040 peltier module have stock. Custom OEM peltier module need 7‑15 working days. 问：批量帕尔贴模块订单交期多久？ 答：标准 TEC‑12708 4040 帕尔贴模块有现货；OEM 定制帕尔贴模块交期 7‑15 个工作日。
