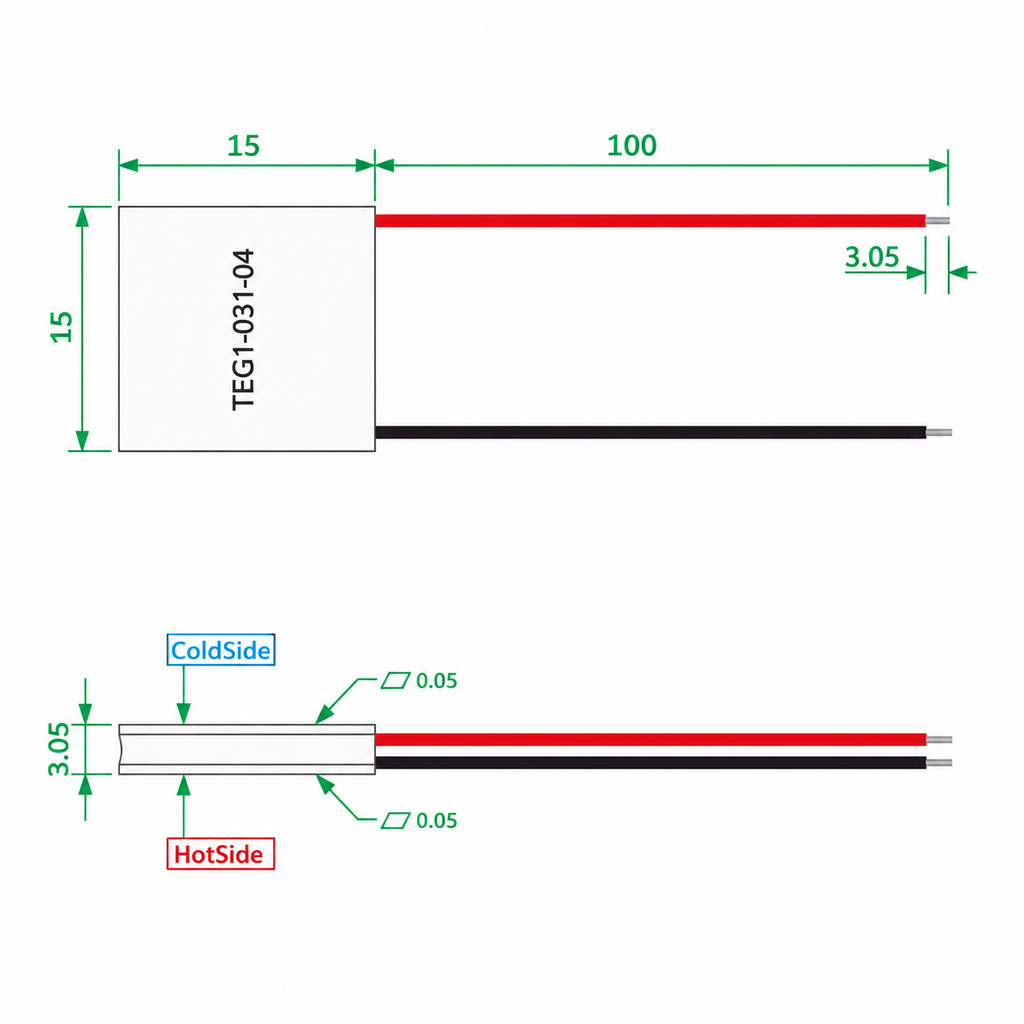

🔷Product Drawing
![]()

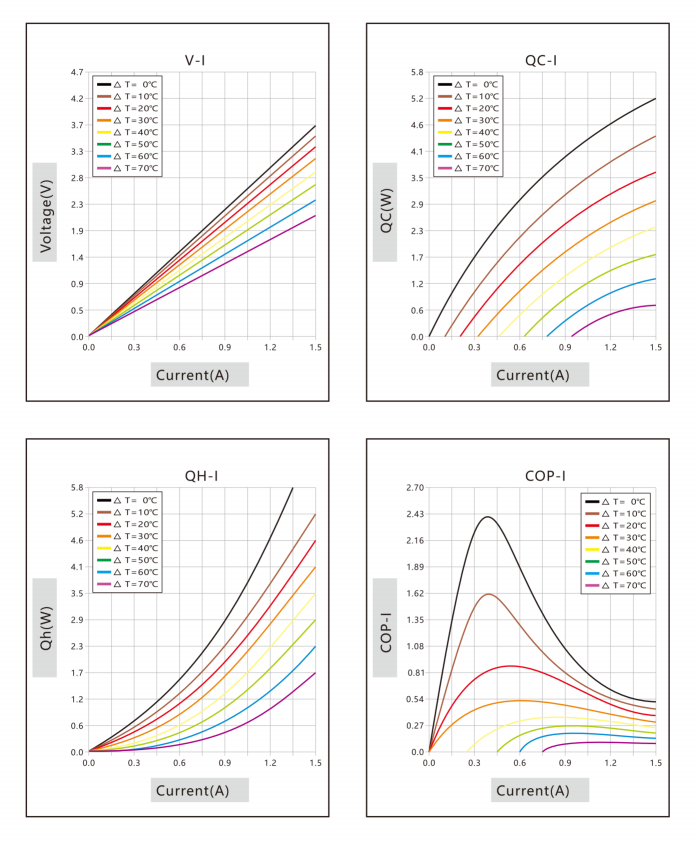

🔷 Performance Curve
![]()
🔷 Product Overview

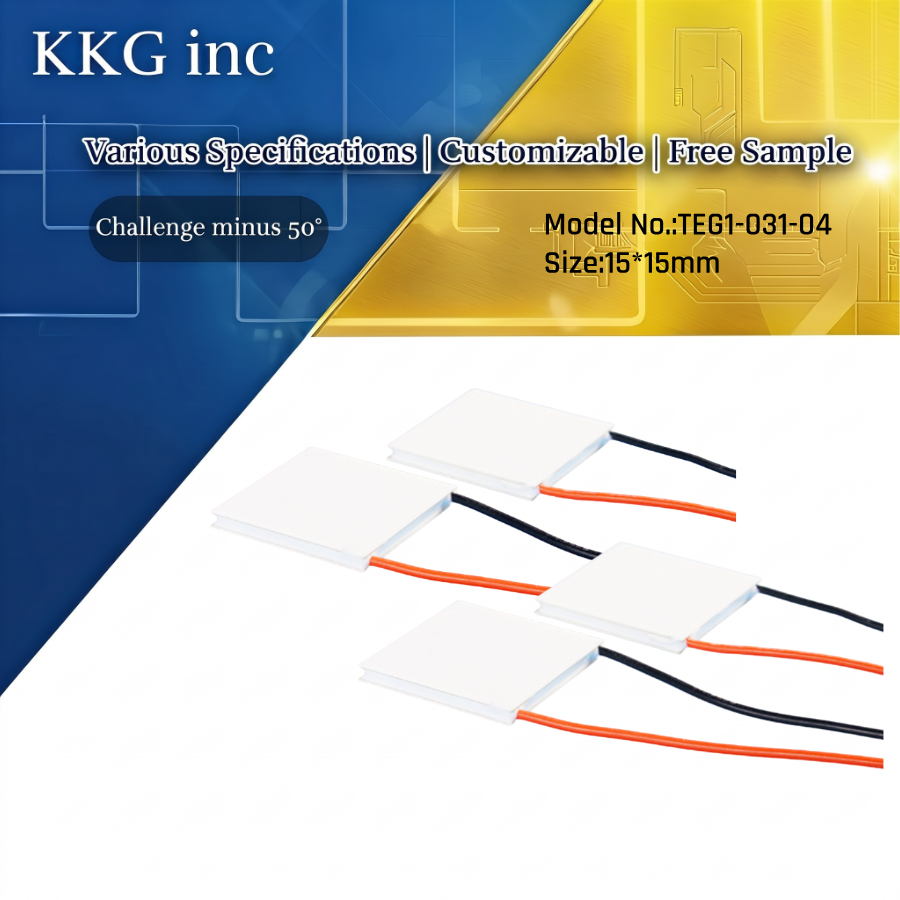

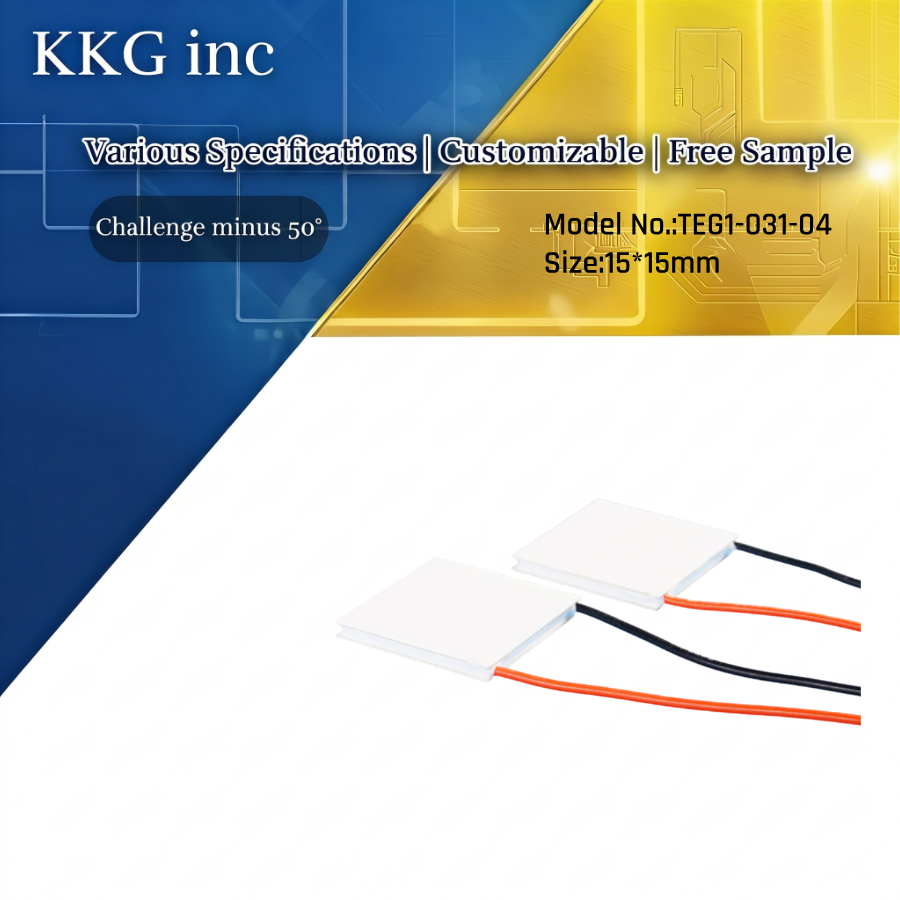

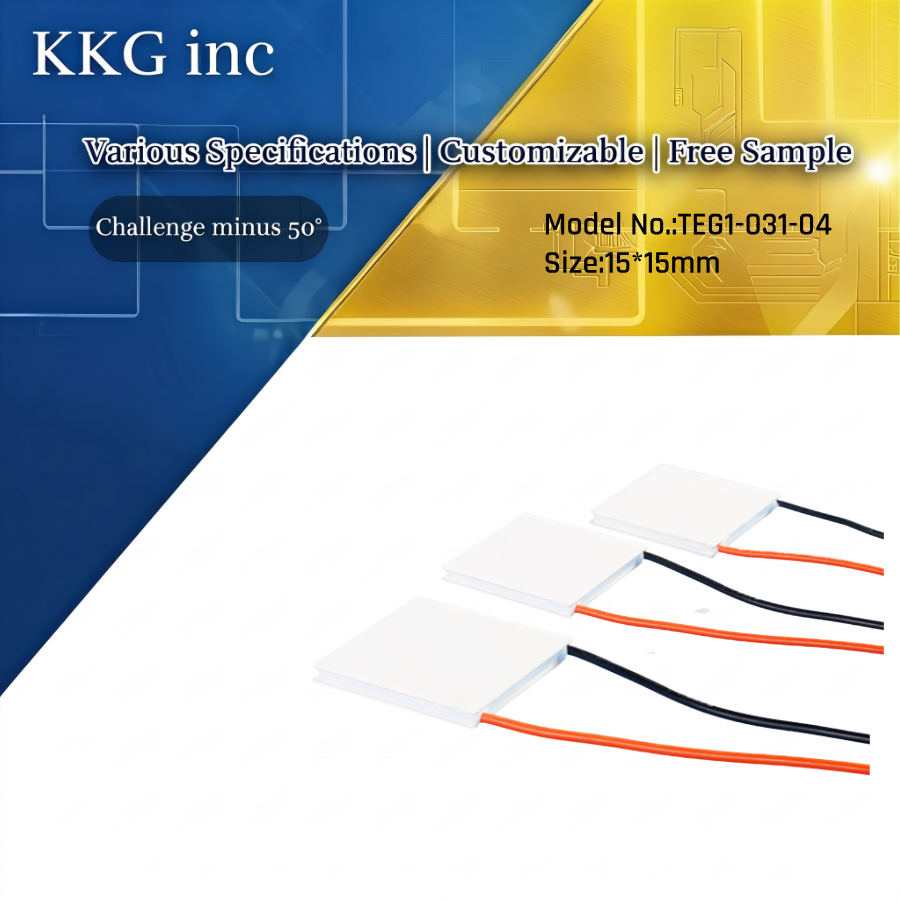

This TEC Peltier Module 15153.05mm 4A is a compact micro thermoelectric cooler, also known as micro peltier module. As a solid-state thermoelectric component, it realizes heat transfer by Peltier effect, no moving parts, low vibration and fast temperature response. Our micro peltier cooler is widely used in mini precision systems with strict space limitation.
🔷 Product Features
- Mini size: 15×15×3.05mm compact micro thermoelectric module, save installation space
- Rated current 4A, stable cooling performance
- Solid state structure, no noise, long service life
- Fast heating & cooling switch, precise temperature control
- Support OEM custom service, available for wholesale
🔷Product Applications
This micro thermoelectric cooler /micro peltier module is suitable for:
・Medical device temperature control
・Optical sensor and laser small module cooling
・Mini analytical instrument temperature stabilization
・Small electronic component thermal management
・Portable precision equipment cooling
🔷 Product Structure
![]()
🔷Operation Principle / Work Principle
Based on Peltier effect: when DC current flows through the micro thermoelectric module, heat will be absorbed on one side and released on the other side. Reverse the current direction, cooling and heating sides will swap. This micro thermoelectric cooler can realize active cooling or heating for your products.
🔷FAQ
Q1: What is the difference between micro thermoelectric cooler and ordinary peltier module?
A: Micro peltier module features smaller dimension, lower power, for tiny precision equipment.
Q2: Can you provide OEM custom micro peltier cooler?
A: Yes, we support custom size, pin type and parameter adjustment for bulk orders.
Q3: What is the MOQ for TEC Peltier Module 15153.05mm 4A?
A: Contact us to get wholesale price and MOQ details.
