🔷Thermoelectric Generator Product Drawing
![]()
🔷Thermoelectric Cooler Performance Basis Spec
| Type mode | In APE | ΔTmax (°C) | AC Rohm (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|
| TEC1-09705 | K10 | 60 | 1.87 | 12 | 5 | 60 | 30×30×3.4 |
| K12 | 65 | 1.87 | 12 | 5 | 60 | 30×30×3.6 |
| K14 | 70 | 1.87 | 12 | 5 | 60 | 30×30×3.8 |
🔷Peltier Module Addition Performance Spec
| Item | Specification |
|---|
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 Sintering Process |
| Lead Specification | Special Silicone Wire 20AWG / L=200mm |
| Terminal Specification | Standard product without terminals, can be added upon request |
| Assembly Pressure | 2.3kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) Foam Box Packaging |
| Sealing Material | 704 Silicone Rubber Seal |
| Maximum Temperature Resistance | Bi-Sn Eco-friendly Solder, Melting Point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |
🔷TEC Cooler Performance Curve
![]()
🔷Product Overview

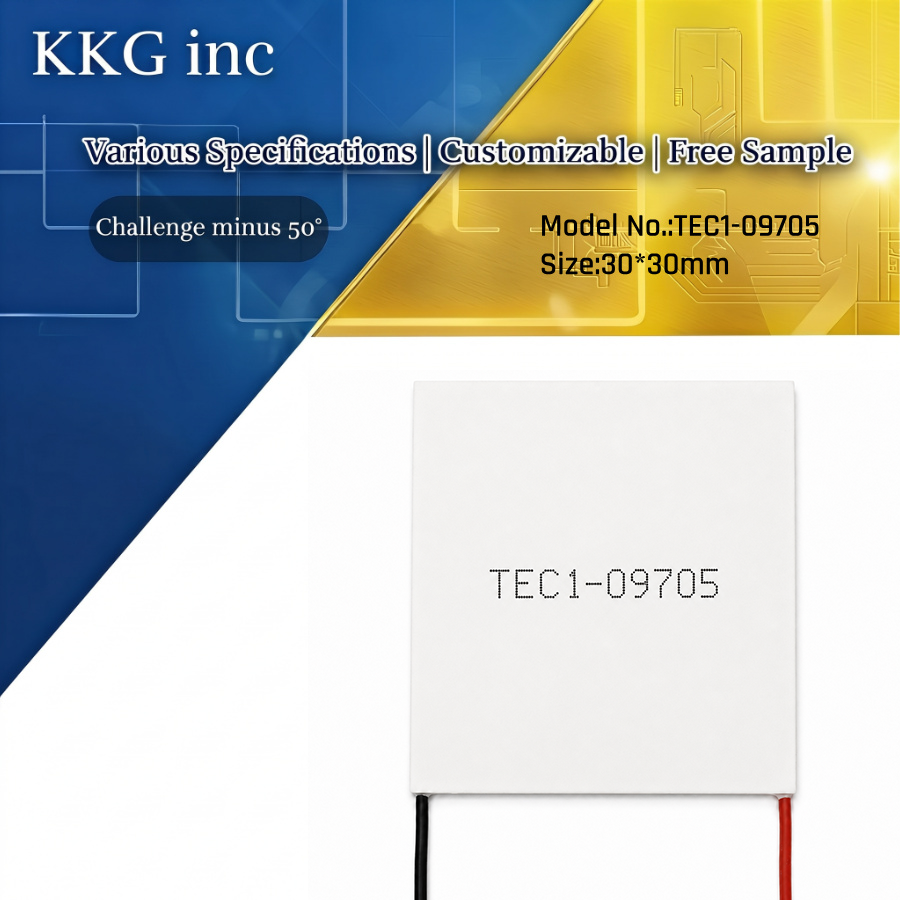

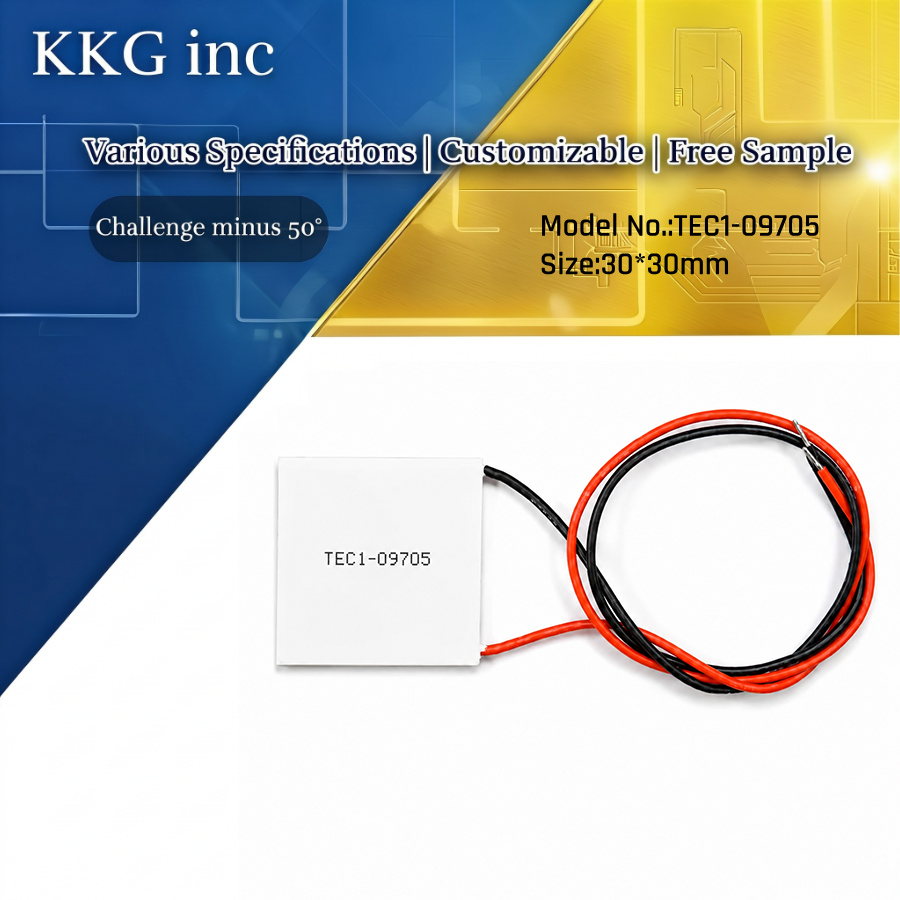

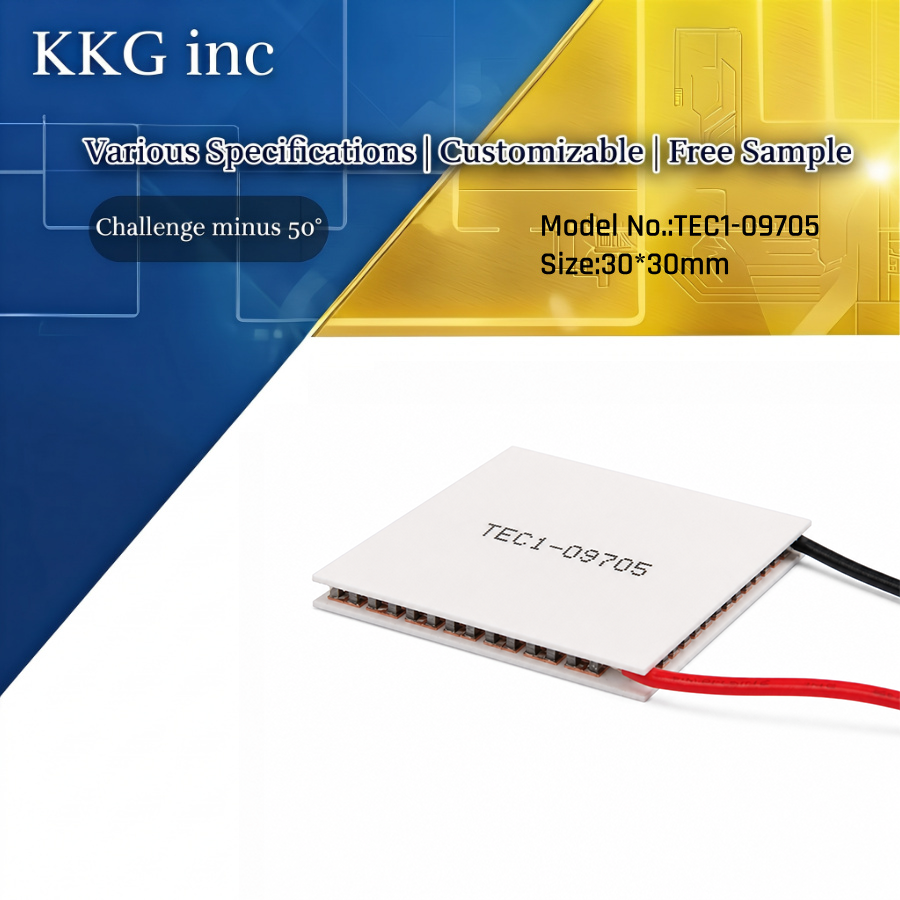

TEC1-09705 thermoelectric cooler peltier 30×30mm is a compact semiconductor cooling module developed for applications requiring accurate temperature management.
As a professional peltier cooler manufacturer, we provide reliable TEC cooling solutions for industrial equipment, electronic devices and temperature control systems.
Based on the Peltier effect, this thermoelectric cooler can realize cooling and heating functions by changing current direction. Compared with traditional refrigeration methods, it has advantages such as compact structure, no refrigerant, low vibration and precise temperature control.
🔷Product Features
1. Compact 30×30mm Structure
The small size design makes TEC1-09705 suitable for limited installation spaces and portable cooling devices.
2. Reliable Semiconductor Cooling Technology
No mechanical moving parts provide stable operation and long service life.
3. Precise Temperature Control
The module supports accurate thermal management for sensitive electronic components.
4. Customization Capability
Professional customization services are available for OEM customers, including size, wire configuration and performance requirements.
5. Efficient Thermal Response
Fast switching between cooling and heating modes improves system control efficiency.
🔷Product Applications
TEC1-09705 30×30mm thermoelectric cooler is widely used in compact thermal management systems and precision cooling equipment.
Main Applications:
- Laser cooling equipment
- Semiconductor temperature control
- Medical instruments
- Optical equipment cooling
- Electronic component cooling
- Mini refrigeration systems
- Laboratory temperature control devices
- Portable cooling equipment
- Industrial temperature control systems

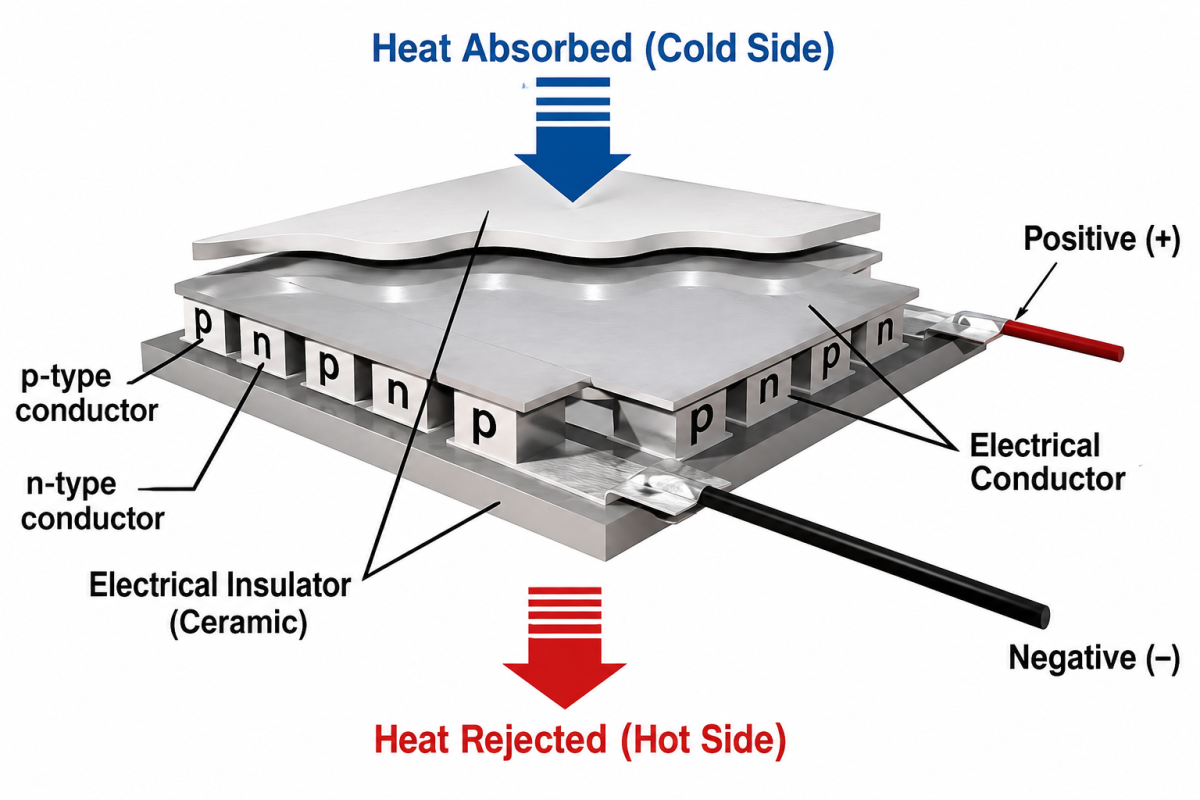

🔷Product Structure
![]()
🔷Operation Principle / Work Principle
TEC1-09705 thermoelectric cooler works based on the Peltier Effect.
When DC current passes through the semiconductor elements, one side absorbs heat and becomes cold, while the opposite side releases heat and becomes hot.
By controlling current direction:
- One side can achieve cooling
- Reverse current direction can achieve heating
- Temperature can be precisely adjusted
This makes Peltier modules ideal for applications requiring compact, accurate and reliable temperature control.
🔷FAQ
Q1: What is TEC1-09705 thermoelectric cooler used for?
TEC1-09705 is mainly used for compact cooling applications such as laser cooling, electronic cooling, medical equipment and temperature control systems.
Q2: Can TEC1-09705 Peltier cooler be customized?
Yes. As a professional peltier cooler manufacturer, we provide OEM customization services including wire length, voltage, current and module specifications.
Q3: What is the size of TEC1-09705?
The standard size of TEC1-09705 thermoelectric cooler is 30×30mm.
Q4: How does a Peltier cooler work?
A Peltier cooler uses semiconductor materials to transfer heat when DC current passes through the module, creating a cooling effect on one side and releasing heat on the other side.
Q5: Why choose a professional Peltier cooler manufacturer?
A professional manufacturer can provide stable product quality, customized solutions, technical support and large-scale supply capability for different industries.
