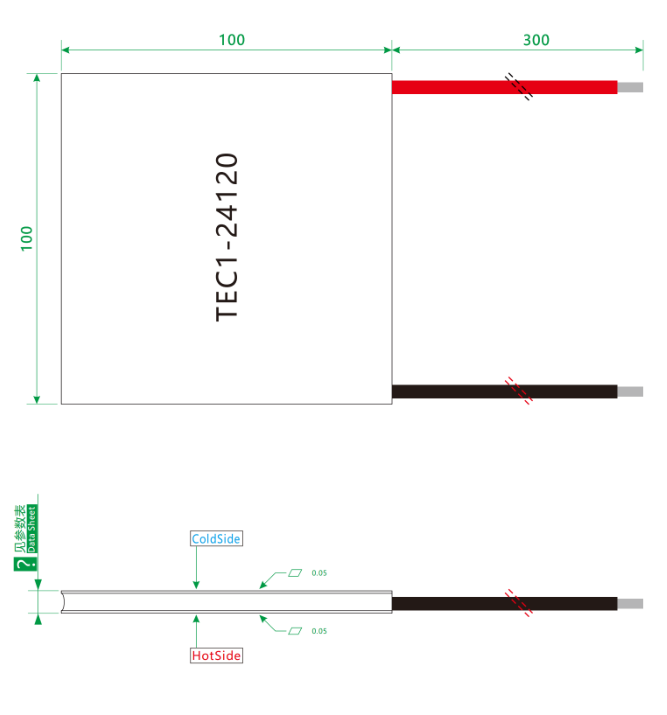

🔷Product Drawing

🔷Basic Performance Spec

🔷Additional Performance Spec

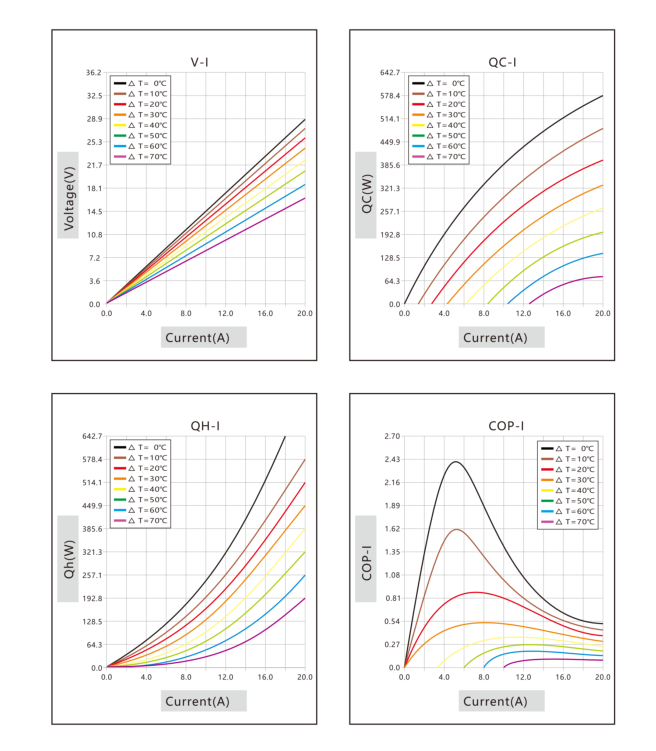

🔷Performance Curve

🔷Product Overview

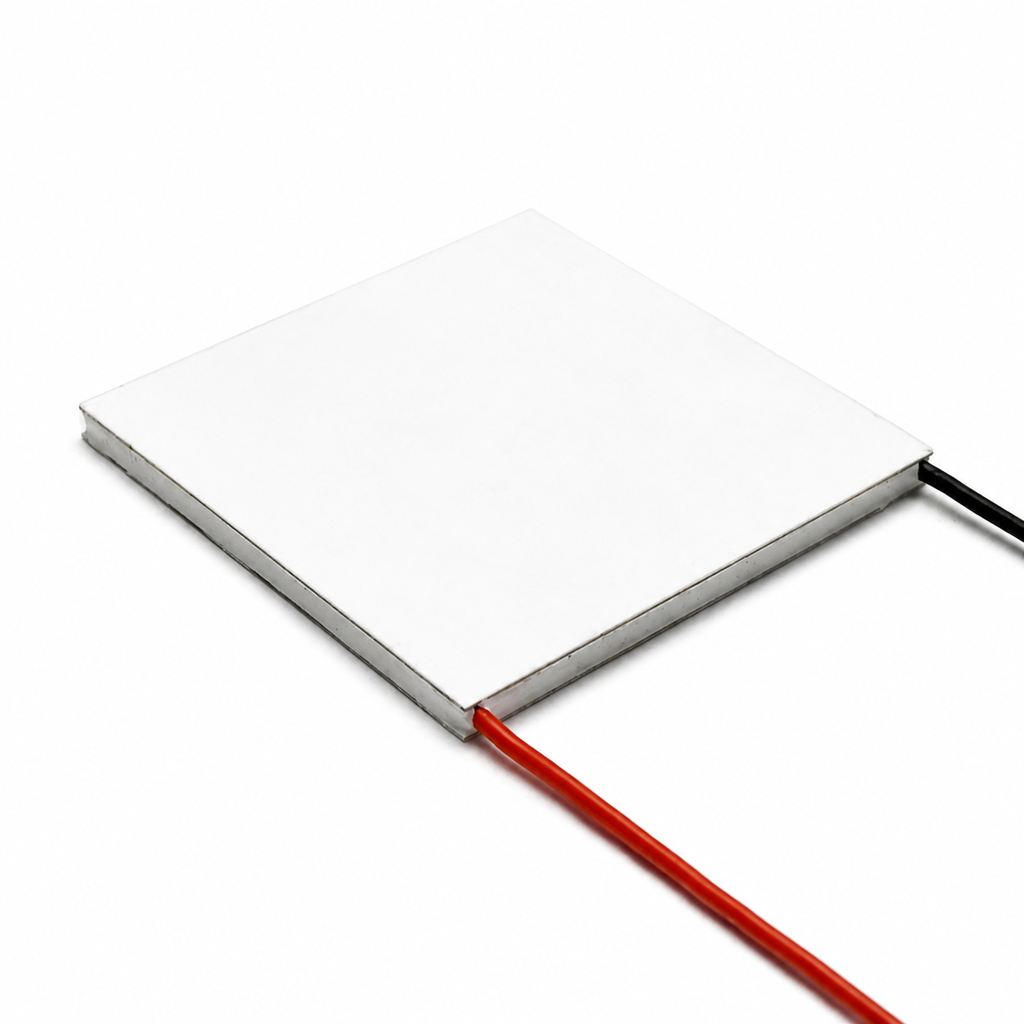

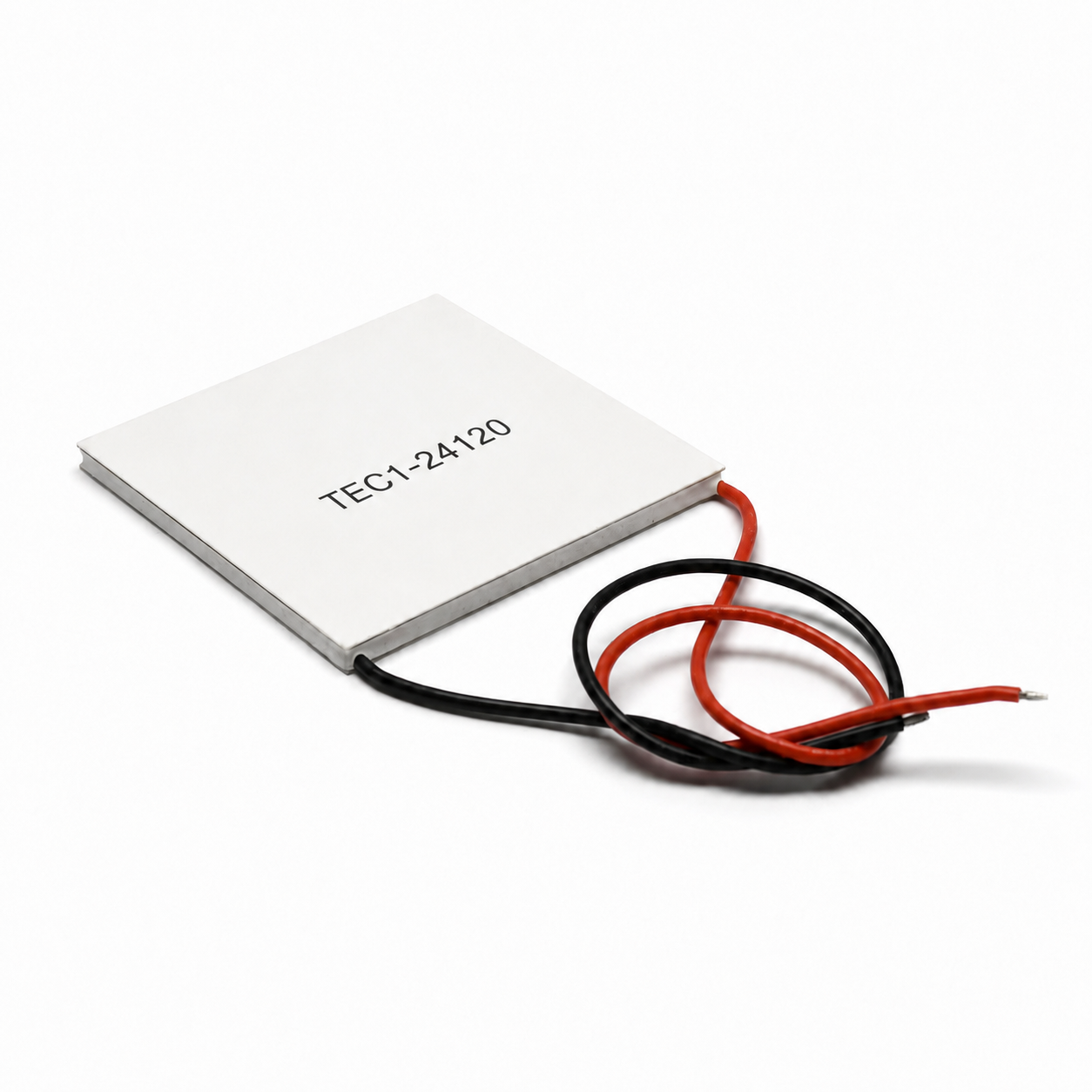

The TEC1-24120 Peltier Module 100x100mm is a large-size thermoelectric cooling module designed for solid-state temperature control applications.

Unlike traditional compressor-based cooling systems, Peltier modules have no mechanical moving parts and can provide compact, reliable, and controllable thermal management when properly integrated with a heat dissipation system.

With its 100x100mm size, TEC1-24120 can be considered for equipment requiring a relatively large cooling surface and compact thermal management structure.

As experienced peltier module suppliers, we support customers in selecting suitable thermoelectric modules according to their application requirements. For projects requiring larger quantities, we can also discuss peltier module suppliers wholesale, OEM, bulk purchasing, and customized requirements.

🔷Product Features

• 100x100mm large-size structure for applications requiring a larger thermoelectric cooling area.
• Solid-state cooling technology with no mechanical moving parts.
• Suitable for compact thermal management system designs.
• Supports temperature control and localized cooling applications.
• Easy to integrate with heat sinks, fans, cold plates, and other thermal components.
• Suitable for OEM and customized thermoelectric cooling projects.
• Designed for professional equipment manufacturers and system integrators.
• Suitable for bulk purchasing and long-term supply projects.
• Can be evaluated for customized cooling solutions according to customer requirements.

For customers looking for a peltier module wholesale supplier, peltier module OEM supplier, or bulk peltier module supplier, TEC1-24120 can be considered as a large-size thermoelectric cooling solution.

🔷Product Applications

The TEC1-24120 100x100mm Peltier module can be used in various thermal management systems, including:

• Industrial cooling equipment
• Industrial temperature control systems
• Laser cooling systems
• Semiconductor temperature control
• Electronic equipment cooling
• Optical equipment cooling
• Laboratory temperature control equipment
• Medical and analytical equipment
• Precision instrument cooling
• Portable refrigeration equipment
• Customized thermoelectric cooling systems
• OEM thermal management equipment

For industrial projects, the Peltier module is normally integrated with a suitable heat sink, fan, cold plate, or liquid cooling system to remove heat from the hot side.

🔷Product Structure

🔷Operation Principle / Work Principle

The TEC1-24120 operates based on the Peltier effect.

When DC electrical current passes through the internal thermoelectric semiconductor elements, heat is absorbed on one side of the module and released on the opposite side. As a result, one surface becomes cold while the other surface becomes hot.

By controlling the electrical current, the thermoelectric system can be used for temperature regulation and localized cooling.

For practical applications, the hot side needs sufficient heat dissipation. A suitable heat sink, fan, cold plate, or liquid cooling system is important because poor heat dissipation can significantly affect the actual cooling performance of the Peltier module.

🔷Product Testing

Before shipment, thermoelectric modules can be inspected according to applicable production and quality-control requirements.

Typical inspection items may include:

• Product dimensions
• Appearance inspection
• Electrical continuity
• Resistance inspection
• Wire and connector inspection
• Ceramic plate condition
• Module assembly quality
• Electrical performance testing
• Cooling performance verification according to applicable test conditions

For bulk and OEM orders, specific inspection requirements can be discussed with customers before production.

🔷Product Packaging

TEC1-24120 Peltier modules are packaged to help protect the ceramic surfaces, wires, and module structure during storage and transportation.

For bulk peltier module orders, packaging methods can be discussed according to order quantity, transportation requirements, and customer packaging specifications.

For OEM projects, customized labeling and packaging requirements can also be evaluated according to the project requirements.

🔷FAQ

1. What is the size of the TEC1-24120 Peltier module?

The TEC1-24120 Peltier module has a nominal size of 100x100mm.

2. What is the TEC1-24120 used for?

It can be used for thermoelectric cooling and temperature control applications, including industrial equipment, laser cooling, semiconductor equipment, electronic cooling, laboratory equipment, and customized thermal management systems.

3. Is TEC1-24120 suitable for OEM projects?

Yes. TEC1-24120 can be evaluated for OEM applications. Customers can provide their system requirements so that the appropriate module configuration can be discussed.

4. Can I buy TEC1-24120 in bulk?

Yes. Bulk purchasing can be discussed according to the required quantity, specifications, packaging requirements, and delivery schedule.

5. Are you a peltier module supplier?

Yes. We provide thermoelectric cooling modules for industrial, commercial, and OEM applications and can support customers with product selection and project requirements.

6. Do you provide wholesale Peltier modules?

Yes. Customers looking for a peltier module suppliers wholesale solution can contact us with their required models, specifications, and quantities.

7. Can you provide customized Peltier modules?

For customized projects, customers can provide requirements such as dimensions, electrical parameters, wire specifications, connector type, and application conditions. We can then evaluate the feasibility of customization.

8. Can you supply Peltier modules for industrial cooling?

Yes. The TEC1-24120 100x100mm module can be evaluated for industrial cooling and temperature-control systems. The final selection should be based on the complete system's cooling load and heat dissipation conditions.

9. What information should I provide when requesting a quotation?

For an accurate quotation and product recommendation, it is helpful to provide the required quantity, module size, voltage/current requirements, target cooling temperature, heat load, hot-side temperature, application, wire requirements, and other relevant specifications.

10. How do I choose a suitable Peltier module?

The selection should not be based on size alone. Cooling capacity, temperature difference, operating current, operating voltage, hot-side heat dissipation, target temperature, and the complete system structure should all be considered.
