High‑quality TEC1‑12705 40*40 thermoelectric cooling devices, peltier module for laser cooling, semiconductor temperature control, thermoelectric cooling for industrial chiller, ideal for AI equipment, medical refrigeration & laboratory cabinet temperature control. Support OEM & wholesale. 🟧 Price List Contact Customer Service 🟦 Product Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

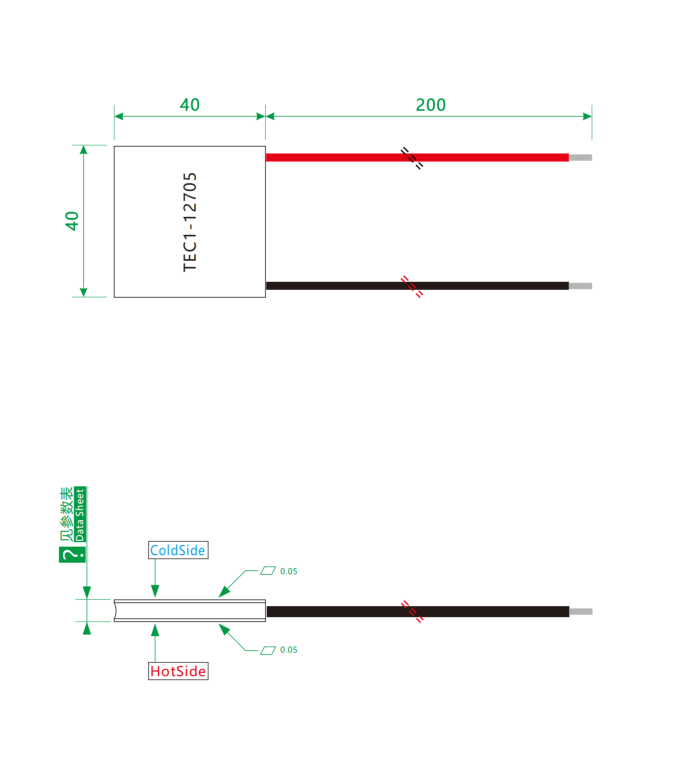

🔷Product Drawing
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|---|---|---|---|---|---|---|
| Type mode | In APE | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12705 | K10 | 60 | 2.37 | 15.2 | 5 | 76 | 40×40×3.4 |
| K16 | 65 | 40×40×4.0 | |||||
| K22 | 70 | 40×40×4.6 |
🔷Basic Performance Spec
| Item | Specification |
|---|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.4mm (sintered process) |
| Lead Wire | Super‑soft silicone wire 20AWG / L=200mm |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 4kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh |

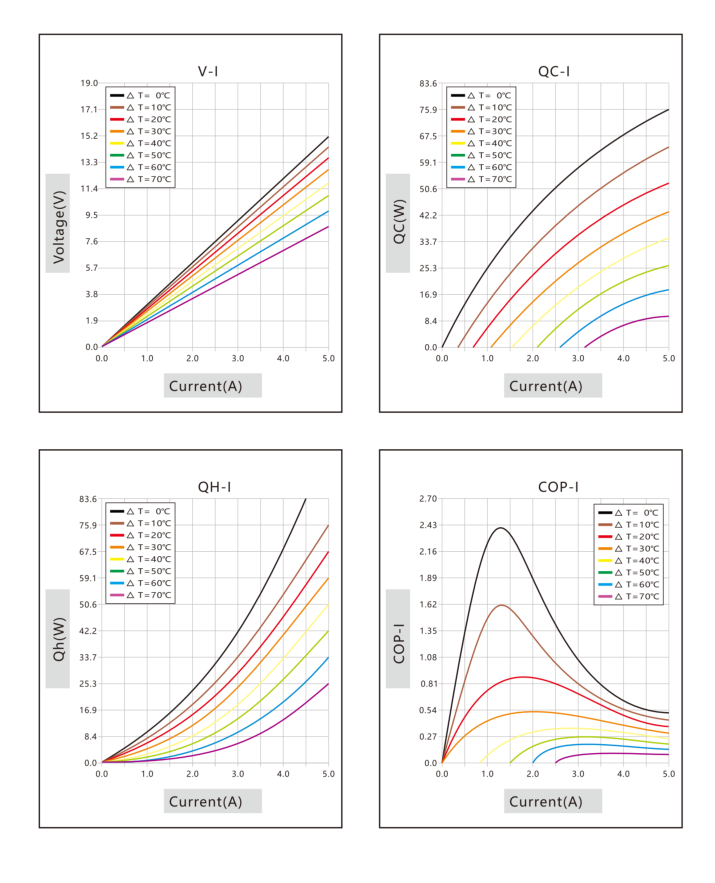

🔷 Performance Curve
🔷 Product Overview
The TEC1-12705 is a 40×40mm high-power thermoelectric cooler (TEC) designed for precise heating and cooling in compact temperature-control systems.
It can be used for AI equipment, laser cooling, semiconductor temperature control, medical equipment and laboratory instruments.
🔷 Product Features
🔷Product Applications
1.Laser Diode & Optical Equipment Cooling
2.Semiconductor Temperature Control
3.AI Equipment Thermal Management
4.Medical Equipment Cooling
5.Laboratory Instrument Temperature Control
6.Industrial Temperature Control Systems
🔷 Product Structure
🔷Operation Principle
Based on the Peltier effect, when DC current flows through thermoelectric cooling devices, one ceramic side absorbs heat (cold side) while the other side releases heat (hot side). By reversing current direction, this peltier module can switch between cooling mode and heating mode. Real‑time current adjustment achieves accurate semiconductor temperature control for AI, laser, medical and lab equipment.
🔷FAQ
Q1: Can the TEC1‑12705 40*40 thermoelectric cooling device be used for laser cooling?
A1: Yes, this high‑power peltier module is a good choice for peltier module for laser cooling, we suggest you match a high‑performance heat sink for the hot‑side.
Q2: Do you support OEM custom thermoelectric cooling devices for industrial chiller?
A2: We provide OEM & wholesale service for thermoelectric cooler modules, including custom wire length, marking and special‑size peltier element.
Q3: Is this 40×40 TEC cooler fit for laboratory cabinet temperature control?
A3: It is suitable for thermoelectric cooling device for laboratory cabinet, low‑power constant‑temperature medical refrigeration and AI chip cooling projects.
