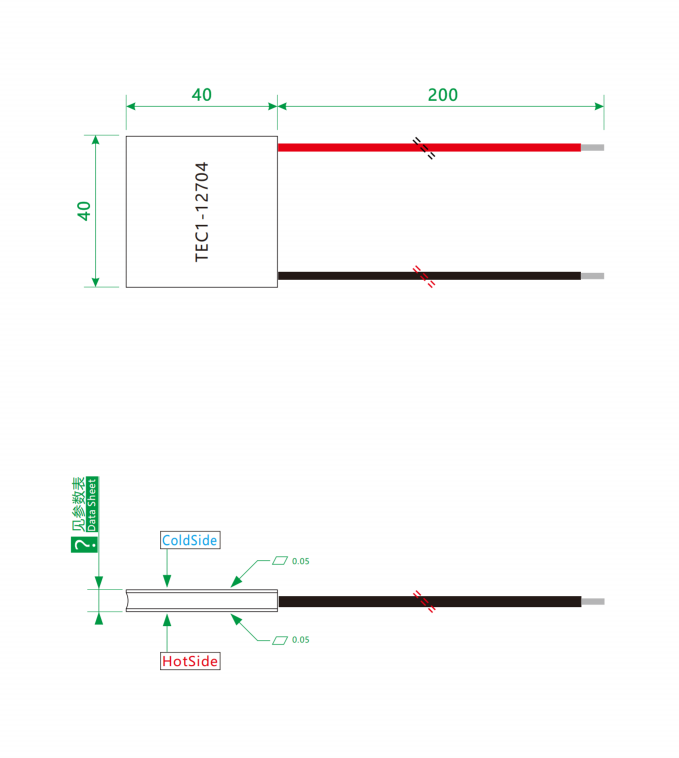

🔷Product Drawing
![]()
🔷Basic Performance Spec
Basic parameters (Th=40°C)
| Type model | In APE | ▲Tmax(°C) | ACRohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
|---|
| TEC1-12704 | K10 | 60 | 2.96 | 15.2 | 4 | 61 | 40x40x3.4 |
| K18 | 65 | 2.96 | 15.2 | 4 | 61 | 40x40x4.2 |
| K26 | 70 | 2.96 | 15.2 | 4 | 61 | 40x40x5.0 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 Sintering Process |
| Wire Specification | Extra soft silicone wire 22AWG / L=200mm |
| Terminal Specification | Standard product has no terminals; can be added upon request |
| Assembly Pressure | 4kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber seal |
| Maximum Temperature Resistance | Bismuth-tin environmentally friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |

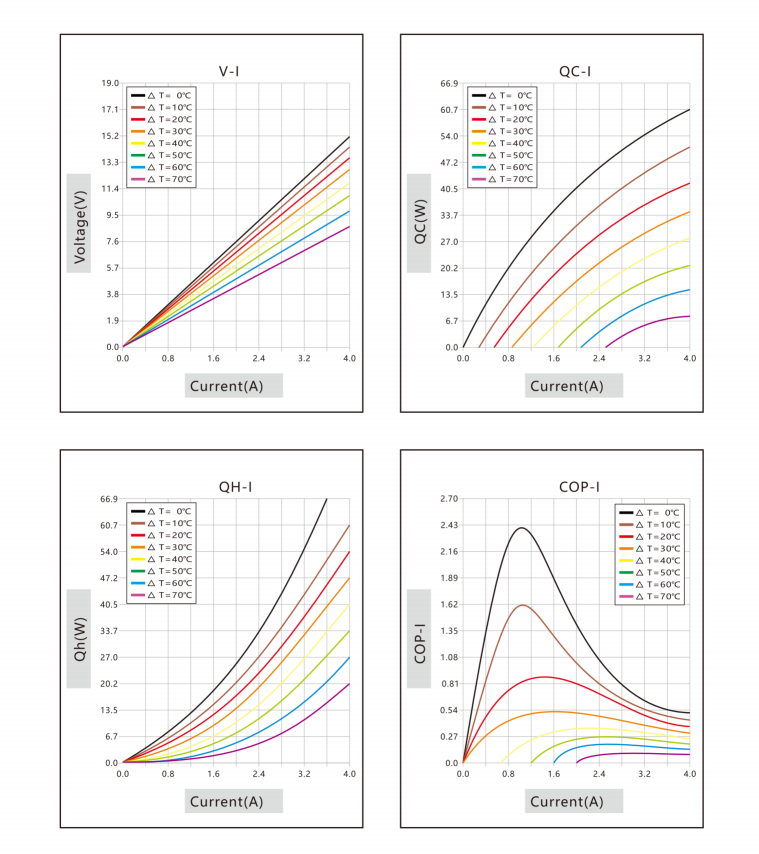

🔷 Performance Curve
![]()
🔷 Product Overview
TEC12704 thermoelectric generator is also a versatile thermoelectric cooler peltier module. We are a reliable peltier module manufacturer India. This unit can realize cooling and power generation based on thermoelectric effect, widely used in laboratory chiller, medical cooling, laser temperature control and semiconductor thermal management. Support bulk order and OEM customization for Indian wholesalers.
🔷 Product Features
- Stable thermoelectric conversion performance, long service life
- Compact solid-state structure, no noise, no moving parts
- Dual function: power generation and cooling
- Customizable options available for India OEM buyers
- Perfect for thermoelectric cooling for laboratory chiller and precision temperature control
🔷Product Applications
- Medical cooling equipment
- Laboratory chiller thermoelectric cooling
- Laser temperature control system
- Semiconductor thermal management
- Industrial temperature control device
- Small thermoelectric power generation unit
🔷 Product Structure
The TEC12704 thermoelectric cooler consists of ceramic substrate, thermoelectric pellets, electrode and soldering layer. Compact layered structure ensures fast heat transfer and stable performance for peltier module used in medical cooling and laser temperature control.
🔷Operation Principle
This thermoelectric generator /thermoelectric cooler works on the Peltier effect and Seebeck effect. When energized, it transfers heat from one side to another for cooling. When there is temperature difference between two sides, it generates electric power. Widely adopted in semiconductor thermal management and laboratory chiller thermoelectric cooling projects.
🔷FAQ
Q1: Are you peltier module manufacturer India? Can I get OEM TEC12704 thermoelectric generator?
A1: Yes, we are thermoelectric cooler supplier. OEM and custom service is available for Indian customers.
Q2: Is TEC12704 suitable for laser temperature control and medical cooling?
A2: Yes, this thermoelectric cooler peltier module is designed for precision temperature control including laser and medical equipment.
Q3: What is MOQ for bulk peltier module order to India?
A3: Flexible MOQ for wholesale thermoelectric cooler shipment to India, contact us for quotation.
