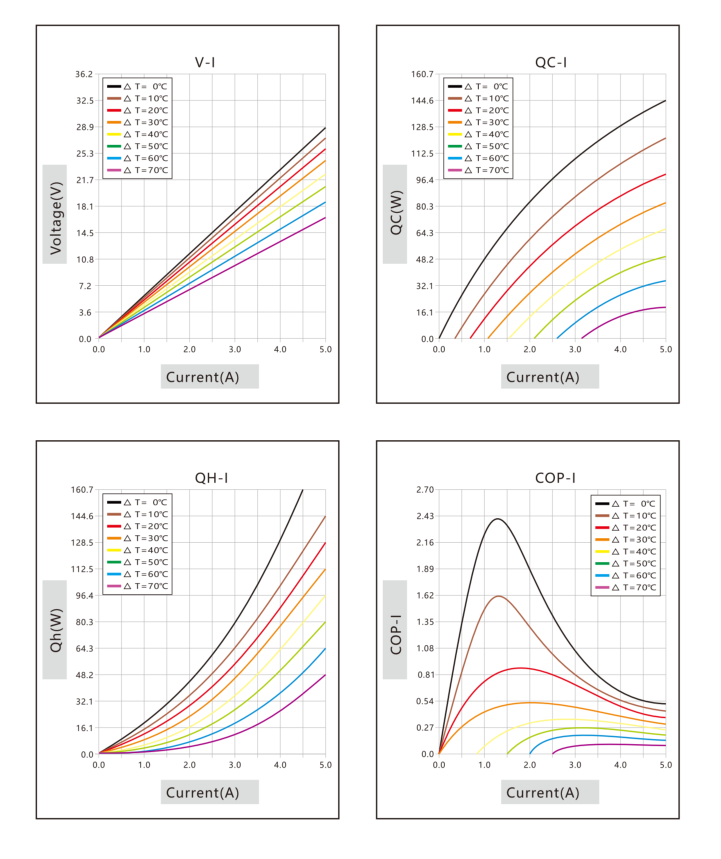

🔷Thermoelectric Cooling Element Basic Performance Spec

🔷Thermoelectric Cooling Device Additional Performance Spec

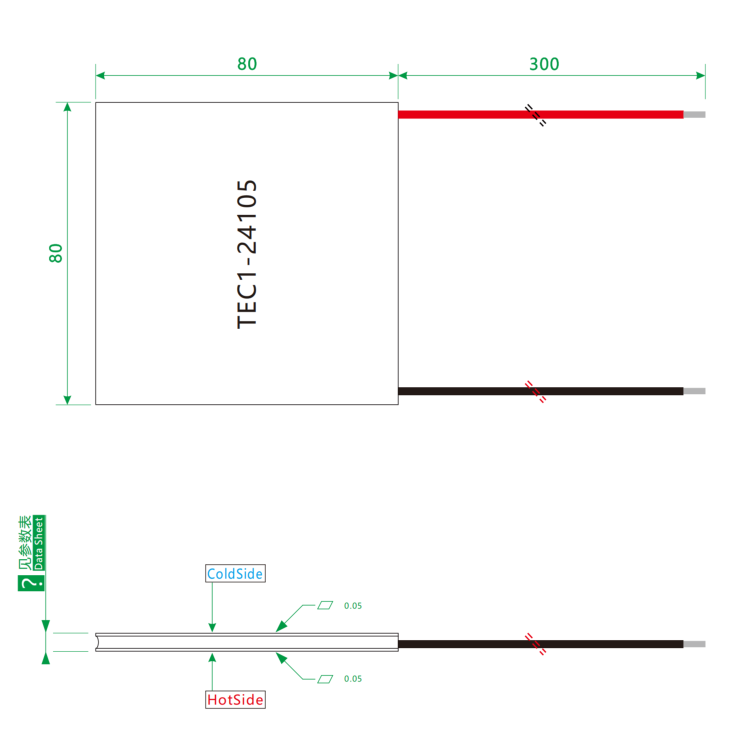

🔷Thermoelectric Generator Modules Product Drawing

🔷Thermoelectric Generator Modules Product Drawing

🔷Peltier Cooling Element Product Overview Peltier

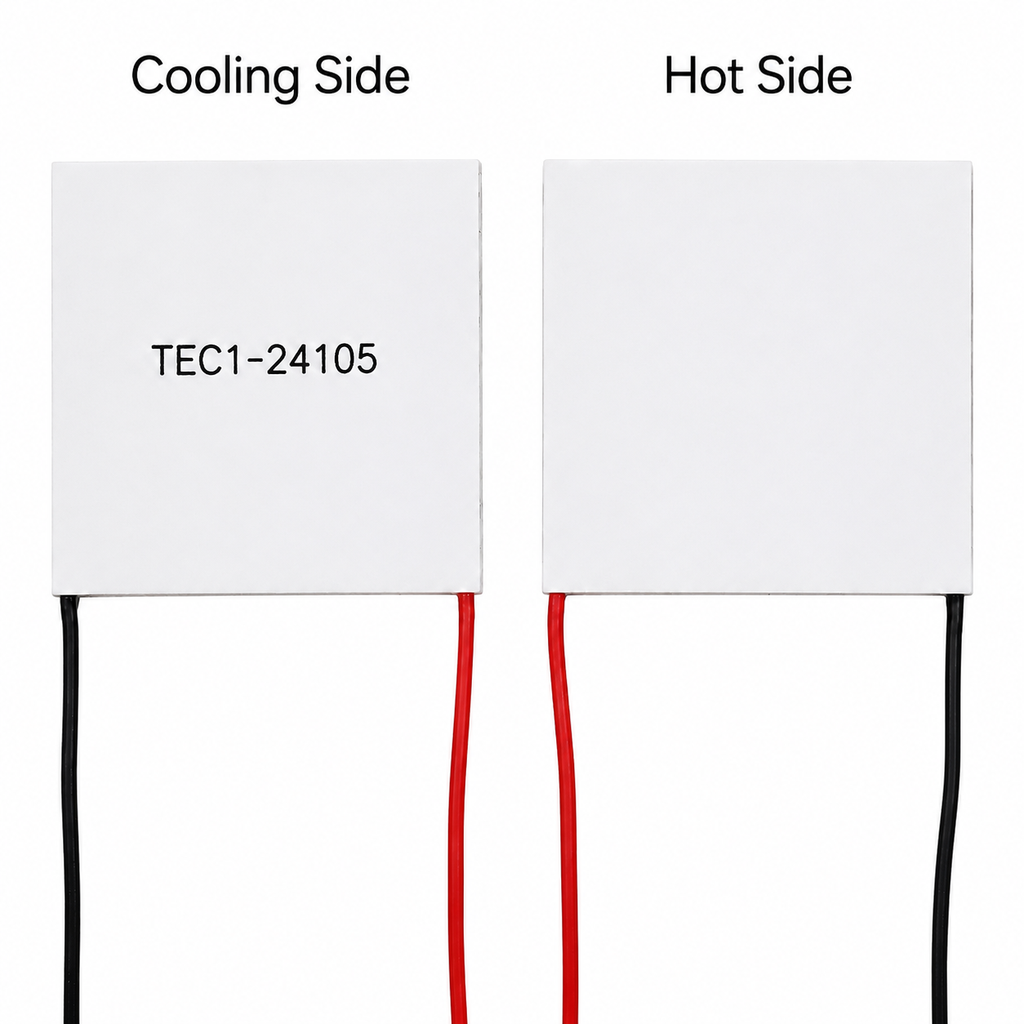

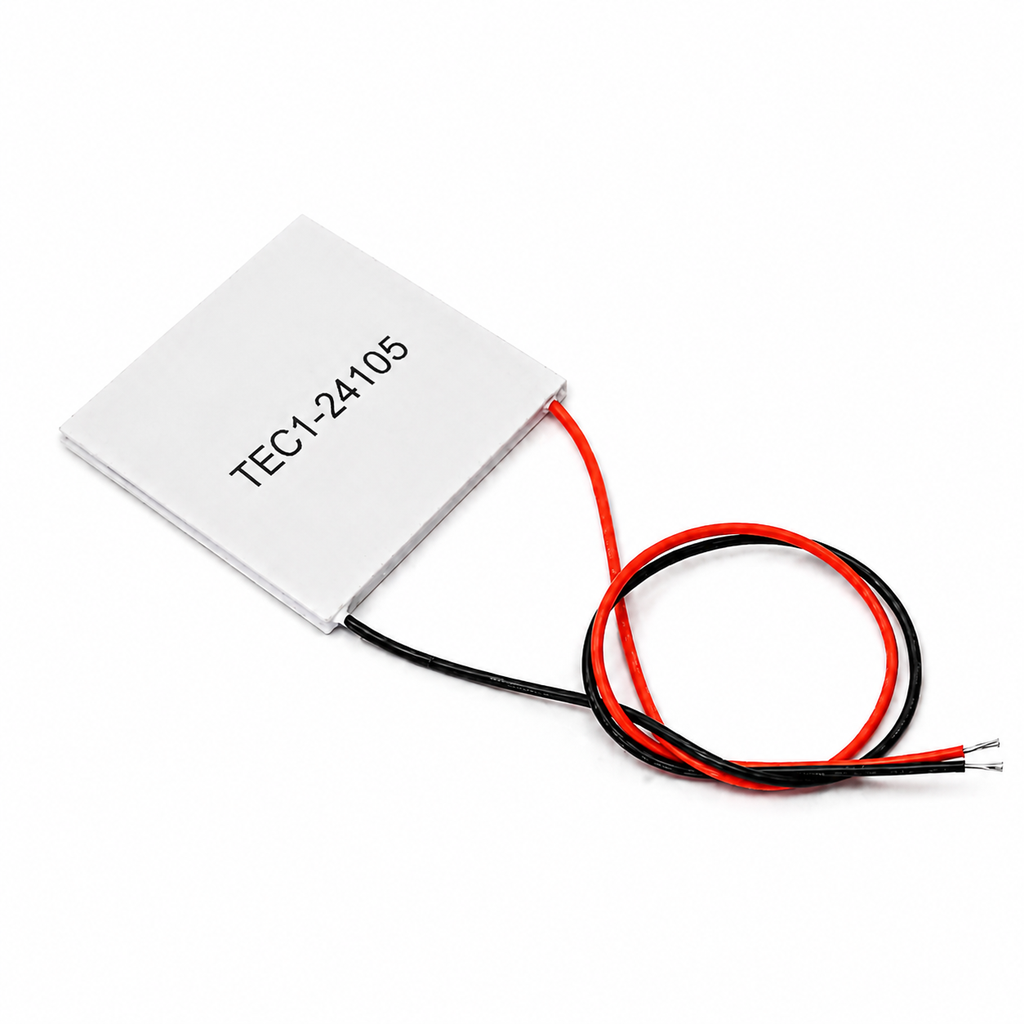

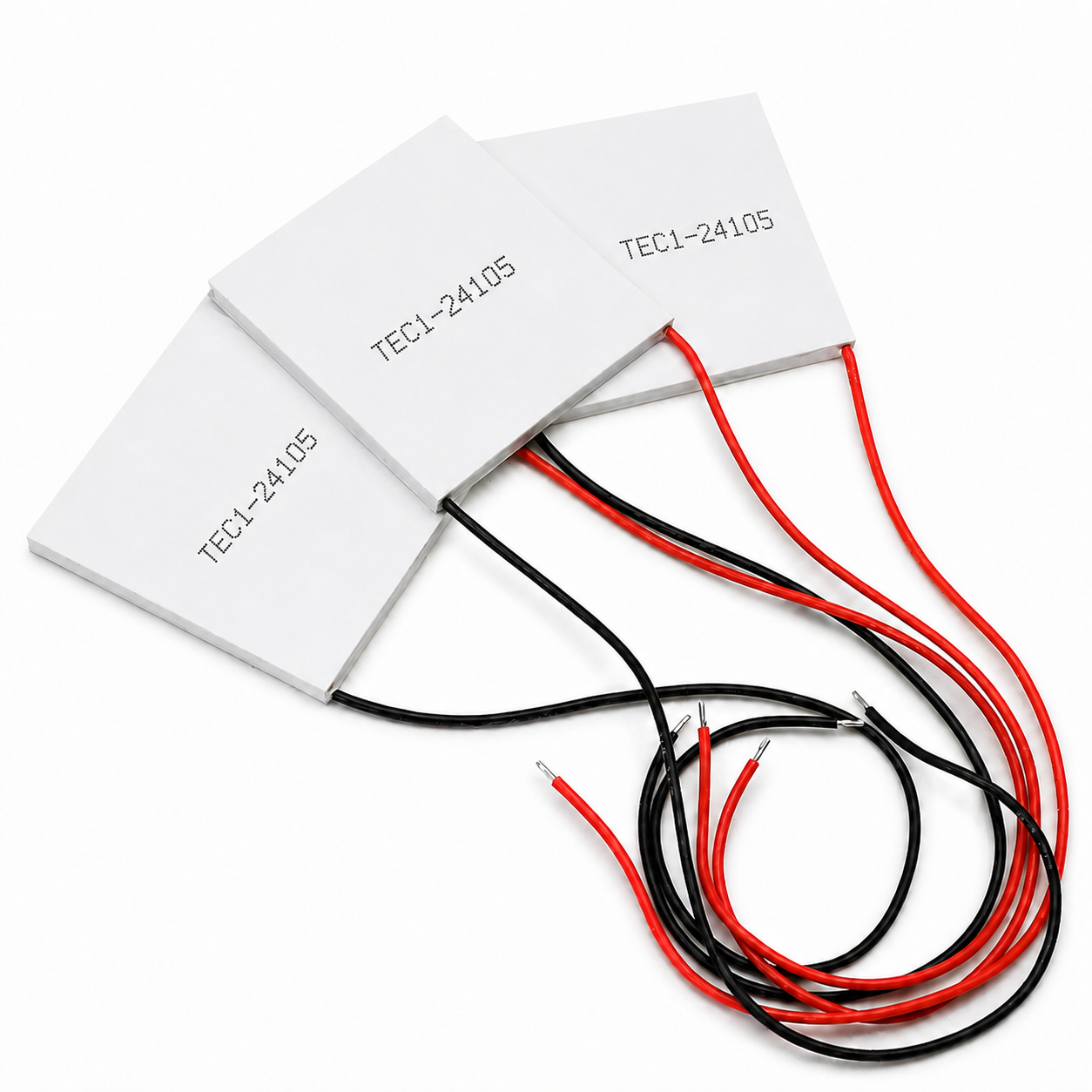

The TEC1-24105 is a high-performance single-stage thermoelectric Peltier module with a physical size of 80×80mm, engineered for reliable and efficient solid-state temperature control. Based on the professional Peltier thermoelectric principle, this semiconductor cooling module achieves rapid heat absorption and heat dissipation by converting electrical energy into thermal energy, realizing accurate bidirectional cooling and heating functions without compressors, refrigerants or any moving parts. With a larger 80×80mm heat conduction area, this module provides more uniform heat transfer and stronger load capacity compared with small-size Peltier modules, making it suitable for medium and high-power thermal management scenarios.

Featuring 241 pairs of high-precision thermoelectric couples, the TEC1-24105 delivers stable and consistent cooling performance with low thermal resistance. It supports a rated working current of 5A and a maximum working voltage of 28.4V, offering stable cooling output and reliable temperature difference performance during continuous operation. Adopting high-purity semiconductor chips and high-strength alumina ceramic substrates, the module ensures excellent insulation, pressure resistance, thermal conductivity and structural stability, effectively preventing performance degradation and burnout under long-term uninterrupted working conditions.

As a solid-state thermal control component, this 80×80mm Peltier module operates completely silently with zero vibration, no pollution and low power consumption. It supports flexible and fast temperature adjustment, enabling precise constant temperature control within a specific temperature range. The reversible cooling and heating function allows flexible switching according to equipment requirements, greatly improving the adaptability of thermal management systems. In addition, the product complies with RoHS environmental protection standards, features long service life, high durability and simple installation, which effectively reduces later maintenance and replacement costs for industrial and commercial equipment.

The TEC1-24105 Peltier module is widely applied in various professional temperature-control fields, including laboratory testing instruments, medical and beauty equipment, industrial electronic heat dissipation, optoelectronic equipment, small industrial constant temperature systems, commercial refrigeration equipment, humidity control devices and customized heating and cooling systems. It is an ideal core component for medium-power precision thermal management solutions due to its stable performance, high cost performance and strong environmental adaptability.
