TEC1-24115 Peltier Module 80x80mm from reliable thermoelectric cooler suppliers. Wholesale, OEM, ODM and custom thermoelectric cooling modules for industrial and electronic cooling applications. 🟧 Price List Contact Customer Service 🟦 Product PDF Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

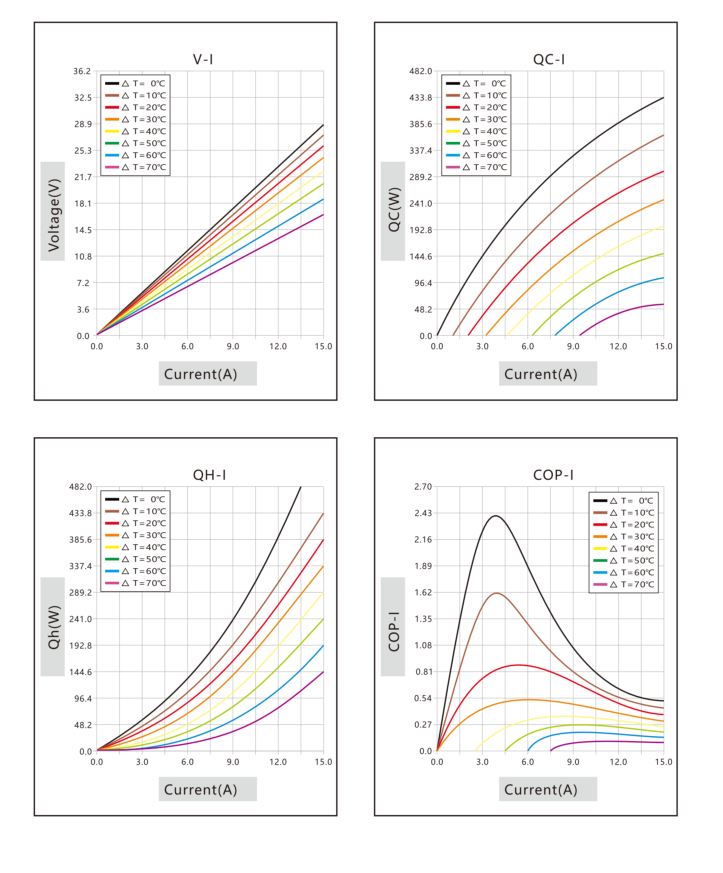

| Type Mode | Chip | ▲Tmax(°C) | ACR ohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
|---|---|---|---|---|---|---|---|
| TEC1-24115 | K10 | 60 | 80x80x3.4 | ||||
| K14 | 65 | 1.51 | 29 | 15 | 435 | 80x80x3.8 | |
| K18 | 70 | 80x80x4.2 |
| Specification Item | Description |
|---|---|
| Substrate | 96% Alumina 0.76mm + Oxygen-Free Copper 0.4mm, sintered process |

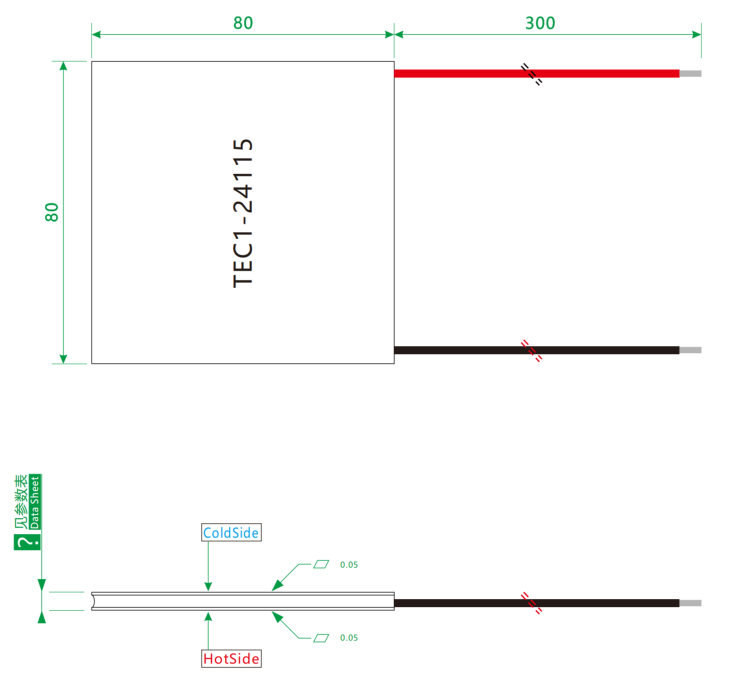

| Lead Wire | Extra-soft silicone wire, 20 AWG, L = 300mm (dual wires) |
| Terminal | Standard product without terminals; can be installed upon request |
| Assembly Pressure | 16 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

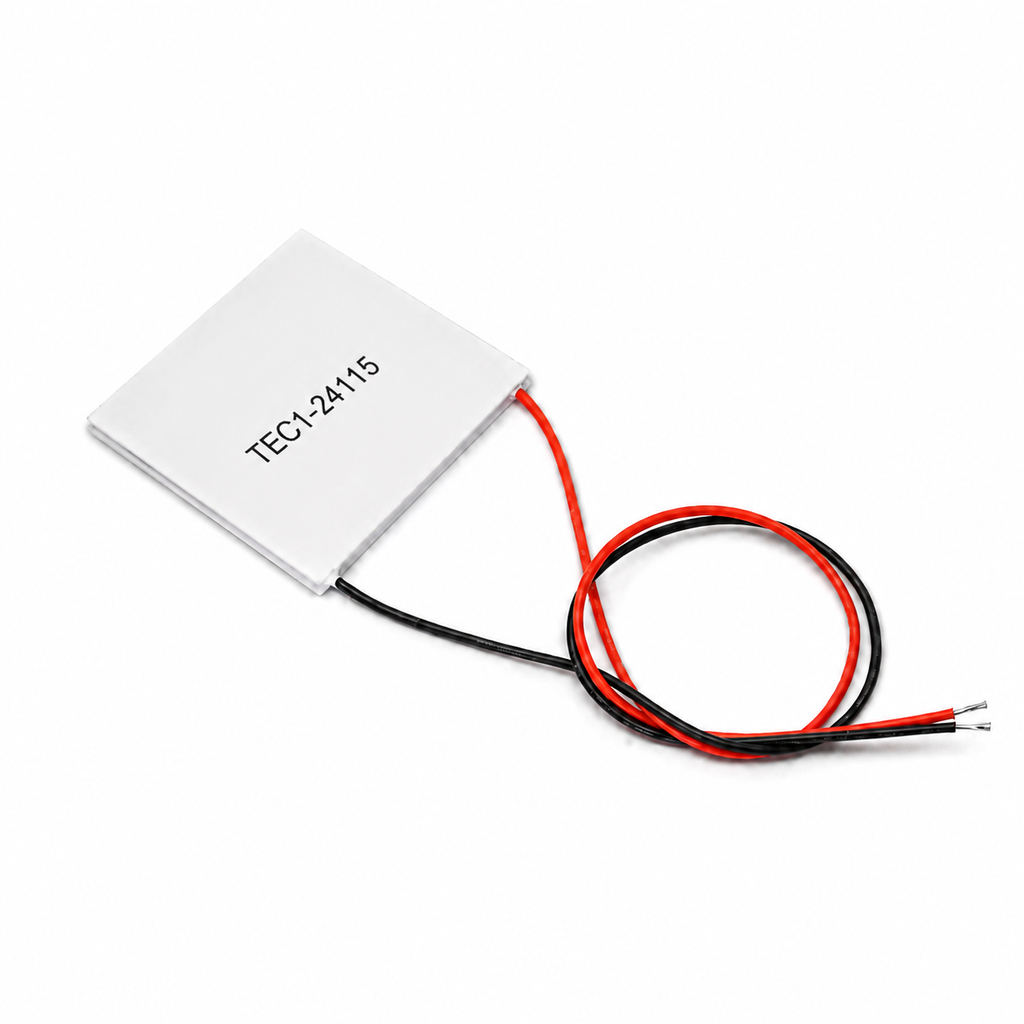

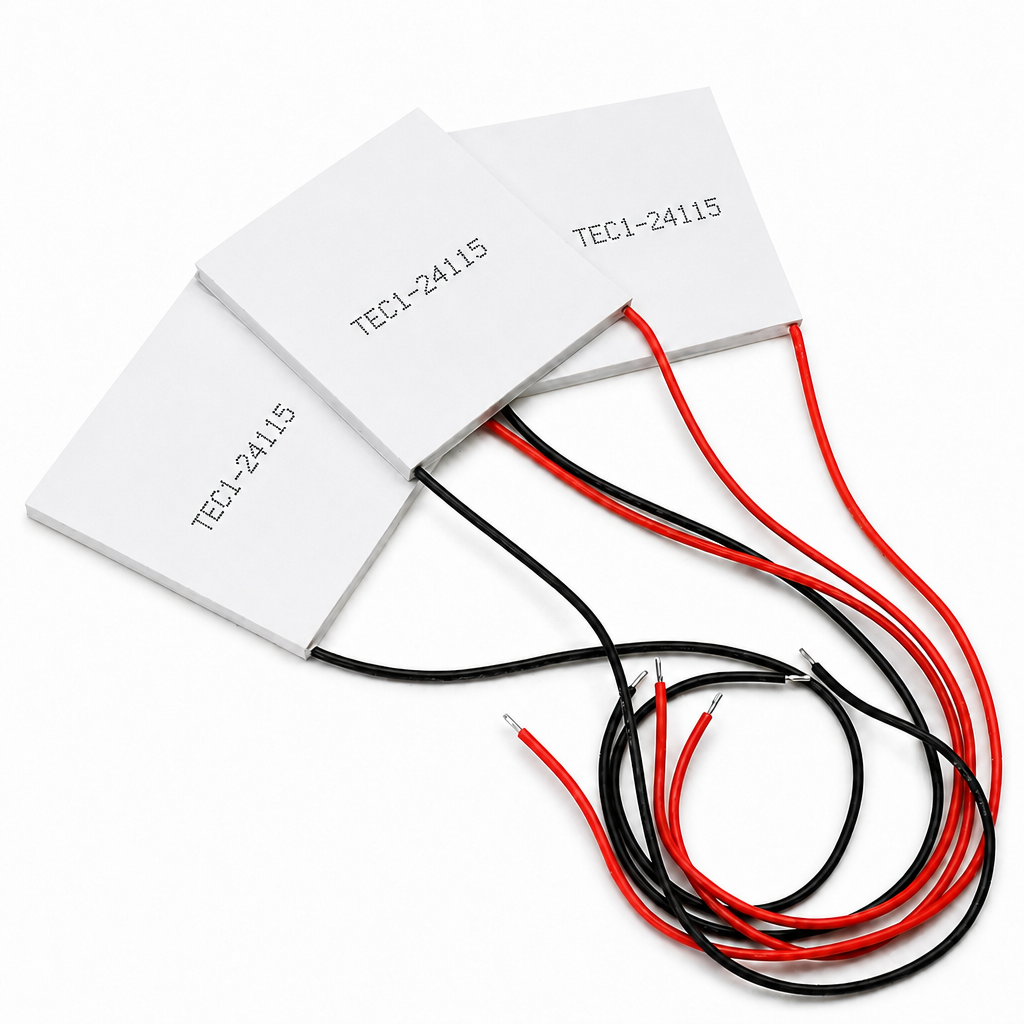

TEC1-24115 Peltier Module 80×80mm is a semiconductor thermoelectric cooling module based on the Peltier effect. When DC power is applied, heat is transferred from one side of the module to the other, creating a cooling side and a heating side.
Compared with conventional compressor-based refrigeration systems, thermoelectric modules have no mechanical compressor or refrigerant circulation system. This makes them suitable for compact temperature-control equipment where small size, precise control, low vibration, and flexible installation are important.
As experienced thermoelectric cooler suppliers, we provide thermoelectric cooling modules for customers requiring standard products as well as OEM and customized solutions.
The TEC1-24115 80×80mm format can be considered for applications where a larger thermoelectric cooling surface is required.
The 80×80mm module provides a relatively large thermoelectric working surface and can be integrated into various cooling assemblies.
The module uses thermoelectric semiconductor technology to transfer heat through the Peltier effect without mechanical moving parts.
The flat ceramic plate structure allows the module to be integrated into compact cooling equipment and customized thermal assemblies.
By controlling the supplied voltage and current, the thermoelectric module can be integrated into temperature-control systems for specific cooling requirements.
The module can be combined with aluminum heat sinks, water blocks, fans, temperature sensors, controllers, and other thermal components.
For customers purchasing in volume, thermoelectric cooler suppliers can provide product selection, specification confirmation, wire configuration, packaging, and other OEM-related support according to project requirements.
The TEC1-24115 Peltier Module can be integrated into different cooling and temperature-control systems, including:
For industrial projects, customers can work with thermoelectric cooler suppliers to select a suitable module according to heat load, target temperature, available power, and heat dissipation conditions.
The TEC1-24115 works according to the Peltier effect.

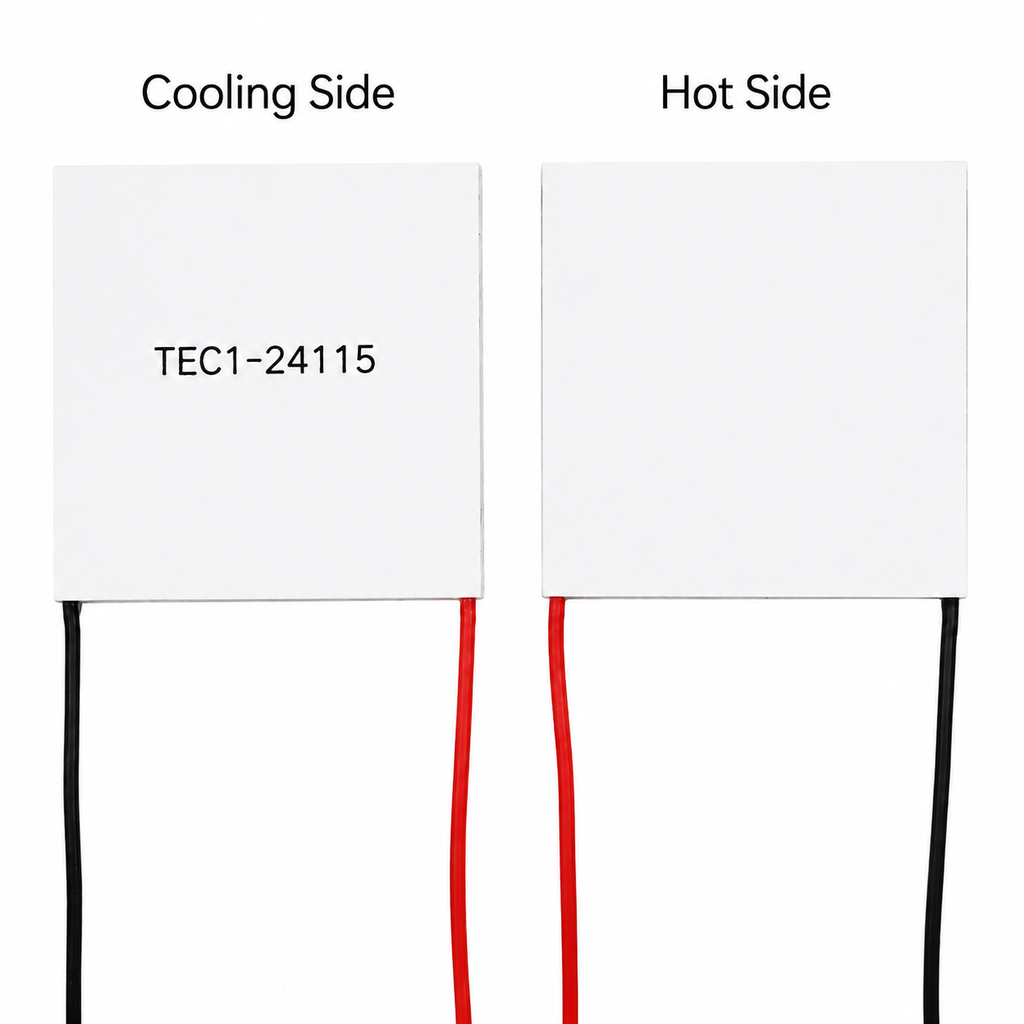

When direct current passes through the semiconductor elements inside the module, heat moves from one side to the other. One surface becomes the cold side while the opposite surface becomes the hot side.
By changing the direction of the DC current, the heat-transfer direction can also be reversed.
The basic working process is:
DC Power → Semiconductor Elements → Heat Transfer → Cold Side + Hot Side
To maintain stable cooling performance, the heat generated on the hot side must be effectively removed. A suitable heat sink, fan, water-cooling system, or other heat dissipation solution is therefore essential.
Before shipment, thermoelectric cooling modules can be inspected according to the applicable production and quality-control requirements.
Typical inspection items include:
For bulk orders, customers can discuss specific inspection requirements with the thermoelectric cooler manufacturer supplier before production.
TEC1-24115 Peltier Modules are packaged to reduce the risk of damage during handling, transportation, and storage.
Depending on order quantity and customer requirements, packaging can be arranged for:
For wholesale and bulk purchasing, packaging requirements can be confirmed before order production.
TEC1-24115 is a Peltier module / thermoelectric cooler with an 80×80mm module size, designed for semiconductor-based cooling and temperature-control applications.
Yes. We provide thermoelectric cooling modules for industrial customers, equipment manufacturers, distributors, and OEM projects.
Yes. Thermoelectric cooler wholesale suppliers can support bulk purchasing requirements, with product specifications and packaging confirmed according to the order.
Yes. Thermoelectric cooler OEM suppliers can provide support for different project requirements, including product configuration, wire options, packaging, and other customization requirements.
For projects requiring customized thermoelectric cooling solutions, thermoelectric cooler ODM suppliers can discuss product structure, performance requirements, and application conditions with customers.
Yes. Thermoelectric cooler custom manufacturers can evaluate customized requirements based on dimensions, electrical parameters, wire specifications, cooling requirements, and installation conditions.
Yes. Peltier module wholesale suppliers can provide bulk purchasing support for standard thermoelectric modules.
Yes. Peltier module OEM suppliers can discuss OEM requirements such as product specifications, wiring, labels, packaging, and order quantities.
It is generally not recommended. A Peltier module transfers heat from the cold side to the hot side, while also generating additional heat from electrical input. The hot side therefore requires an effective heat dissipation system.
The selection should consider the required cooling capacity, target cold-side temperature, hot-side temperature, power supply, heat load, module size, and heat dissipation conditions.
Yes. Customers can discuss requirements with a custom Peltier cooling module manufacturer for customized dimensions, electrical specifications, wires, packaging, and other requirements.
Yes. A custom thermoelectric cooling module supplier can provide standard or customized modules according to project requirements and order quantities.
