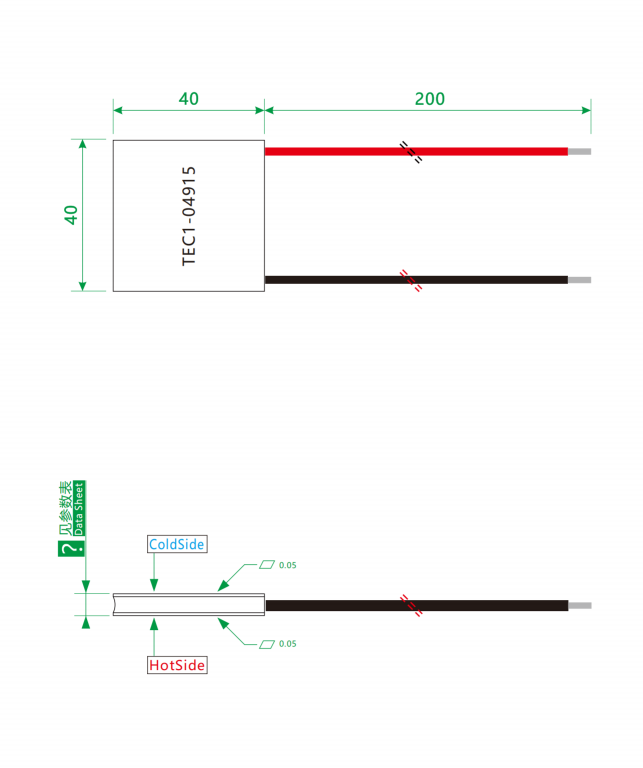

🔷Product Drawing

🔷Basic Performance Spec

🔷Additional Performance Spec

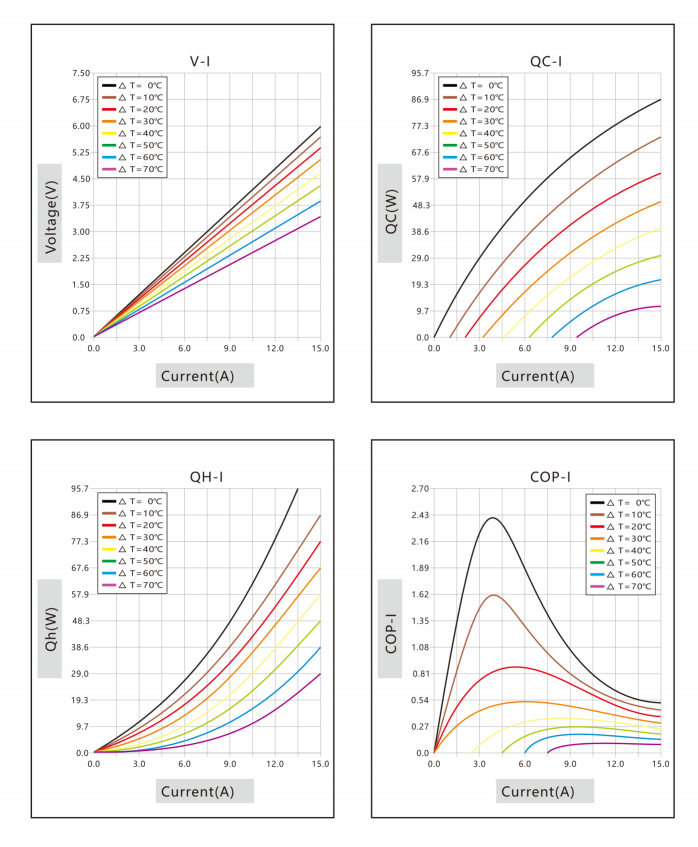

🔷Performance Curve

🔷Product Overview

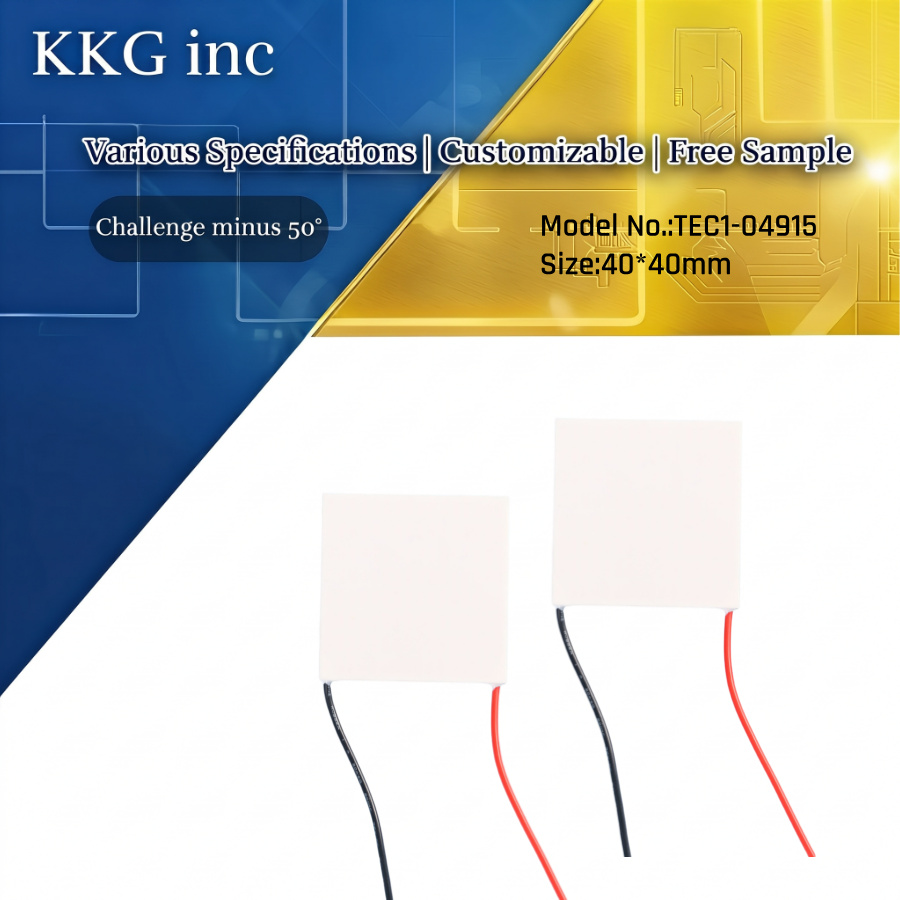

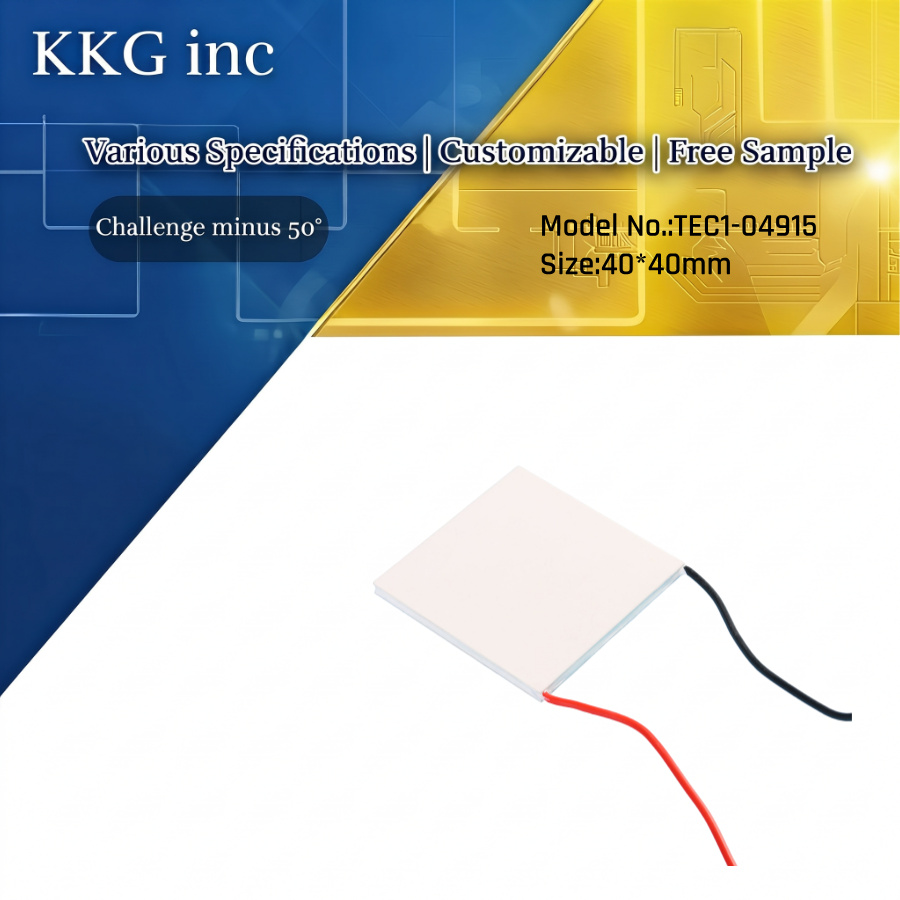

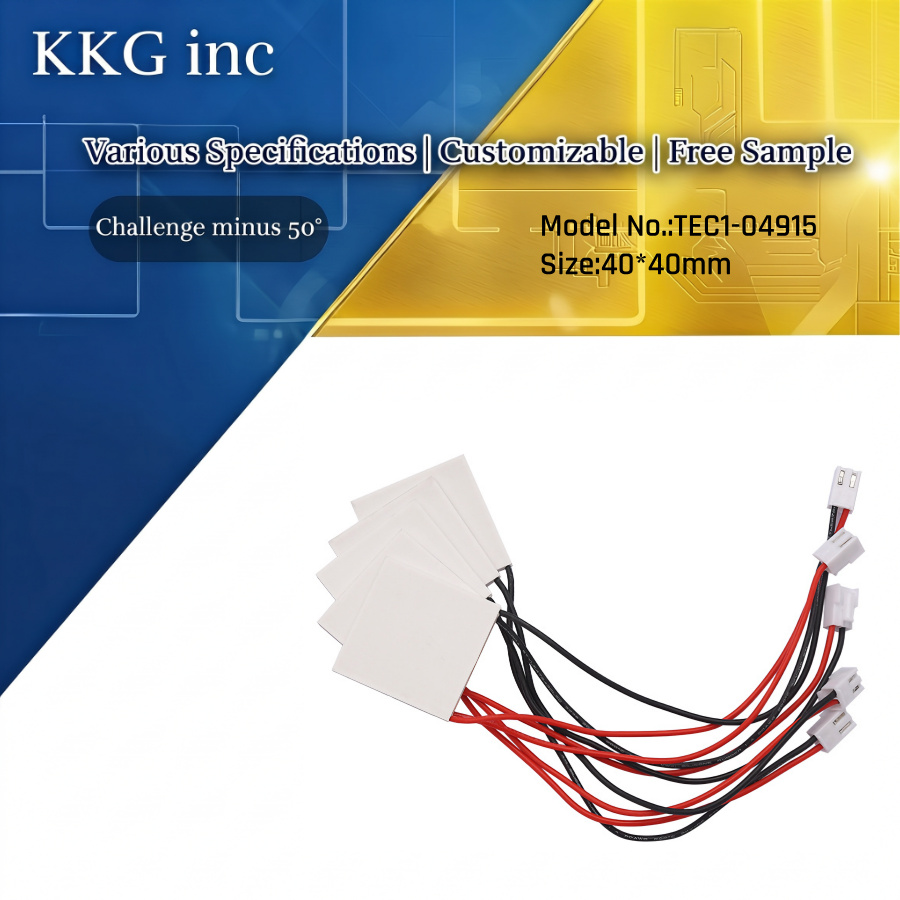

The TEC1-04915 Thermoelectric Cooler 40*40mm is a compact Peltier thermoelectric cooling module designed for applications requiring localized cooling and temperature control.

Based on the thermoelectric cooling effect, the module transfers heat from one side to the other when DC power is applied. This allows engineers to achieve cooling without compressors, refrigerants, or mechanically moving parts.

With its standardized 40*40mm size, the TEC1-04915 is convenient for integration into electronic cooling equipment, temperature control devices, compact cooling systems, and customized thermal management solutions.

It can also be incorporated into a peltier module kit together with heat sinks, fans, thermal interface materials, temperature sensors, and control components according to the requirements of the final application.

🔷Product Features

1. Compact 40*40mm Design

The standardized 40*40mm format makes the TEC1-04915 suitable for compact equipment and space-limited thermal management systems.

2. Solid-State Cooling

The Peltier module operates without compressors or moving mechanical parts, providing a compact solution for localized cooling.

3. Precise Temperature Control

Thermoelectric technology allows the cooling output to be controlled by adjusting the electrical operating conditions.

4. Easy System Integration

The module can be integrated into a complete TEC module kit or customized thermoelectric cooling assembly.

5. Flexible Application

The module can be used in electronic, industrial, laboratory, optical, and temperature-control equipment depending on the required specifications.

6. OEM & Customization Support

For projects requiring different dimensions, electrical specifications, wire configurations, or cooling performance, customized peltier module kits can be developed according to application requirements.

🔷Product Applications

The TEC1-04915 Thermoelectric Cooler 40*40mm can be used in a variety of localized cooling and temperature-control applications.

Electronic Cooling

Used for cooling electronic components and temperature-sensitive devices where compact thermal management is required.

Temperature Control

Suitable for equipment that requires controlled heating or cooling of a specific area or component.

Laser Cooling

A Peltier module can be integrated into laser temperature-control systems where stable thermal conditions are required.

Semiconductor Cooling

The module can be incorporated into semiconductor thermal management systems for localized temperature control.

Industrial Cooling

Suitable for customized industrial cooling equipment and compact thermoelectric cooling systems.

Electronic Equipment

Can be integrated into electronic cooling assemblies, compact cooling devices, and customized thermal management products.

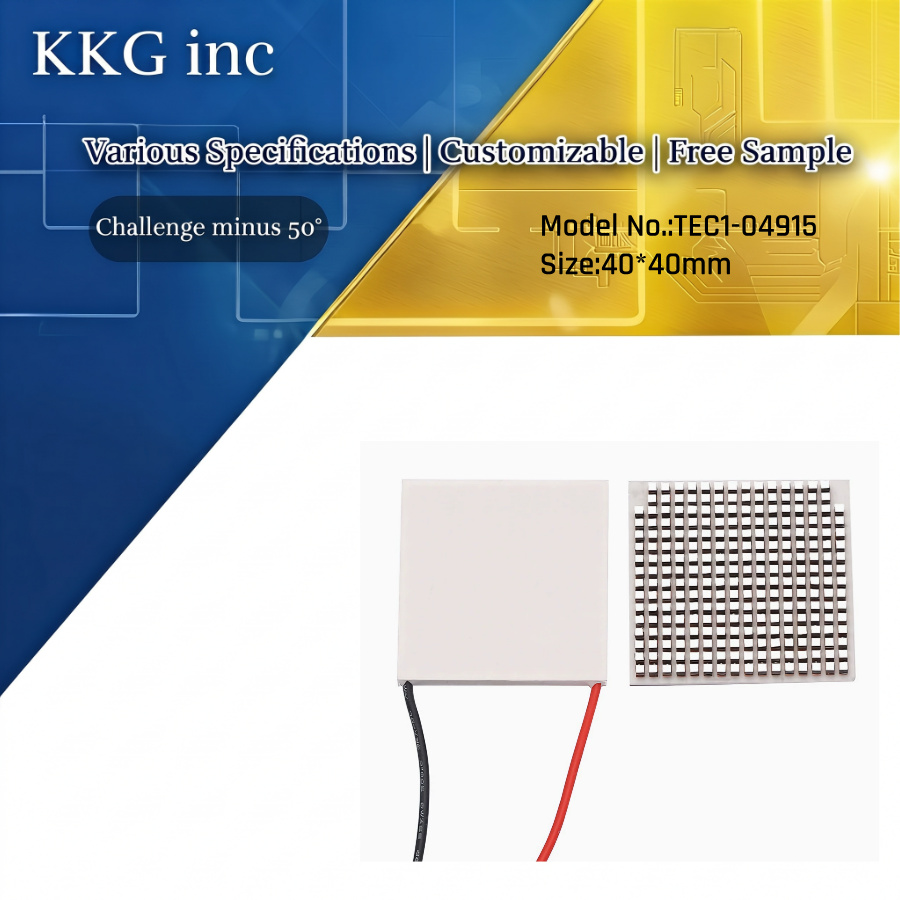

🔷Product Structure

🔷Operation Principle / Work Principle

The TEC1-04915 works based on the Peltier effect.

When direct current passes through the thermoelectric semiconductor elements, heat is absorbed on one side of the module and released on the opposite side. As a result, one surface becomes the cold side while the other becomes the hot side.

The heat generated on the hot side must be effectively dissipated. Therefore, when designing a complete peltier cooling module kit, the heat sink, fan, thermal interface material, power supply, and temperature controller should be considered together with the thermoelectric module.

By controlling the input current and operating conditions, the cooling performance and temperature of the system can be adjusted according to the application requirements.

🔷FAQ

Q1: What is a peltier module kit?

A peltier module kit is a thermoelectric cooling solution that can combine a Peltier module with heat dissipation and control components such as heat sinks, fans, sensors, and controllers.

Q2: What is the size of the TEC1-04915?

The TEC1-04915 listed on this product page has a 40*40mm module size.

Q3: Can the TEC1-04915 be used for temperature control?

Yes. Peltier thermoelectric modules can be used for both localized cooling and temperature-control applications when properly integrated with a suitable power and thermal management system.

Q4: Can this Peltier module be used for laser cooling?

It can be considered for laser cooling applications where the required cooling capacity, temperature range, and thermal conditions match the module's specifications.

Q5: Can you provide a customized peltier module kit?

Yes. Customized solutions can be developed according to requirements such as module dimensions, electrical parameters, wire configuration, cooling capacity, and application environment.

Q6: What is the difference between a TEC module kit and a Peltier module kit?

In most applications, TEC module kit and Peltier module kit refer to thermoelectric cooling solutions based on the same Peltier-effect technology. The exact configuration depends on the application.

Q7: How should the hot side of a Peltier module be cooled?

The hot side normally requires an appropriate heat sink or other heat dissipation system. Effective hot-side heat removal is important for achieving the expected cooling performance.

Q8: Do you support OEM orders?

Yes. Peltier module kit manufacturers and suppliers can provide OEM/custom solutions according to project requirements, including customized module specifications and system configurations.
