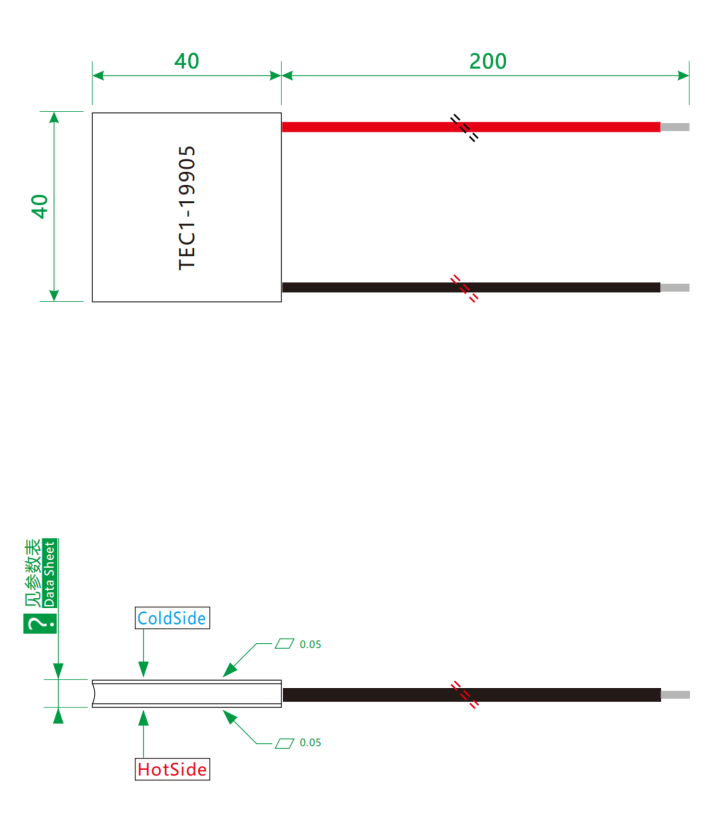

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| ΔTmax (°C) | ACR (ohm) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| K10 | 60 | | | | | 40×40×3.4 |
| K12 | 65 | 3.74 | 24 | 5 | 120 | 40×40×3.6 |
| K14 | 70 | | | | | 40×40×3.8 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.4mm (sintered process) |
| Lead Wire | Super‑soft silicone wire 20AWG / L=200mm |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 4kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh
|

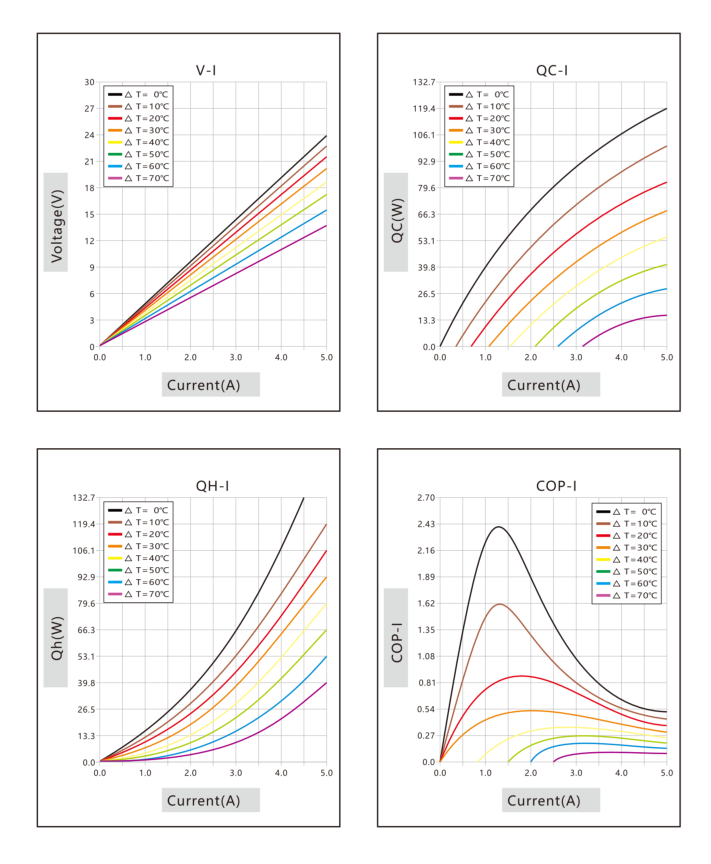

🔷 Performance Curve
![]()
🔷 Product Overview

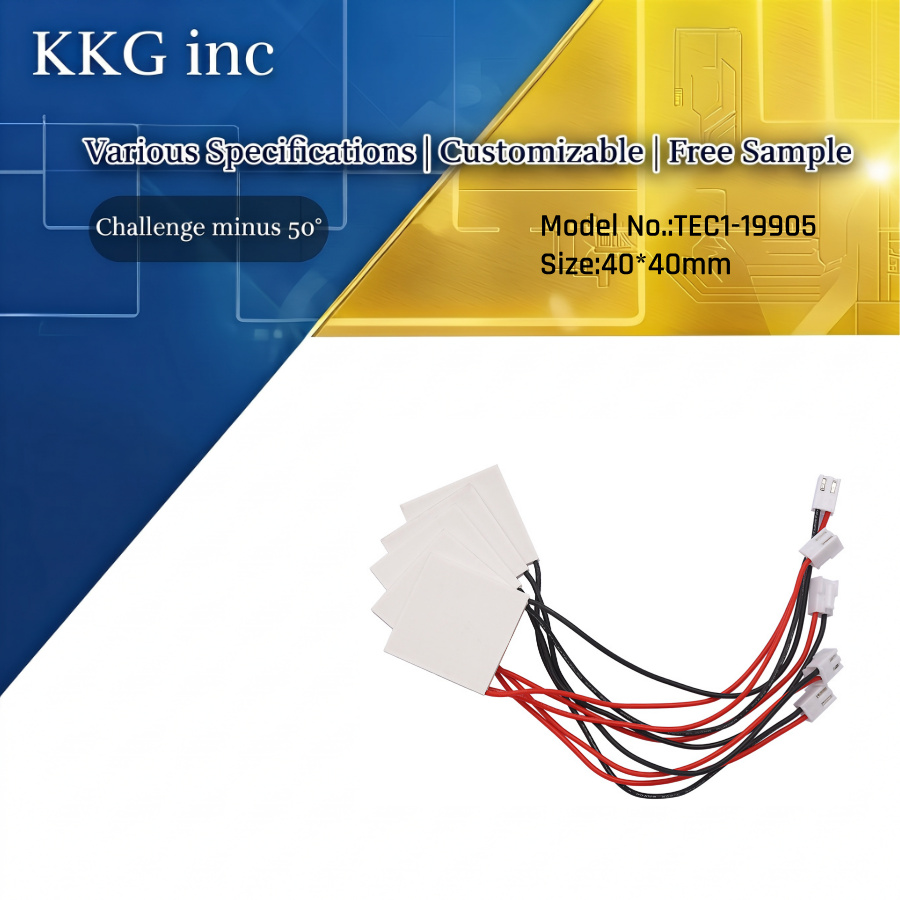

The TEC1‑19905 Thermoelectric Cooler 40*40mm is a high‑current thermoelectric module, also known as peltier thermoelectric module. As a compact‑size industrial thermoelectric module, it realizes heat transfer by the thermoelectric effect without refrigerant, no vibration and low noise.
Our 40×40mm thermoelectric cooling module is a solid‑state cooling component widely used for semiconductor temperature control, small industrial chiller, laser cooling, medical equipment cooling and laboratory thermoelectric refrigeration projects.
We are a professional thermoelectric module supplier that supports wholesale thermoelectric module, OEM thermoelectric cooling module and custom thermoelectric module service for bulk buyers.
🔷 Product Features
- Stable cooling performance, high‑current thermoelectric cooling module for long‑time continuous‑work

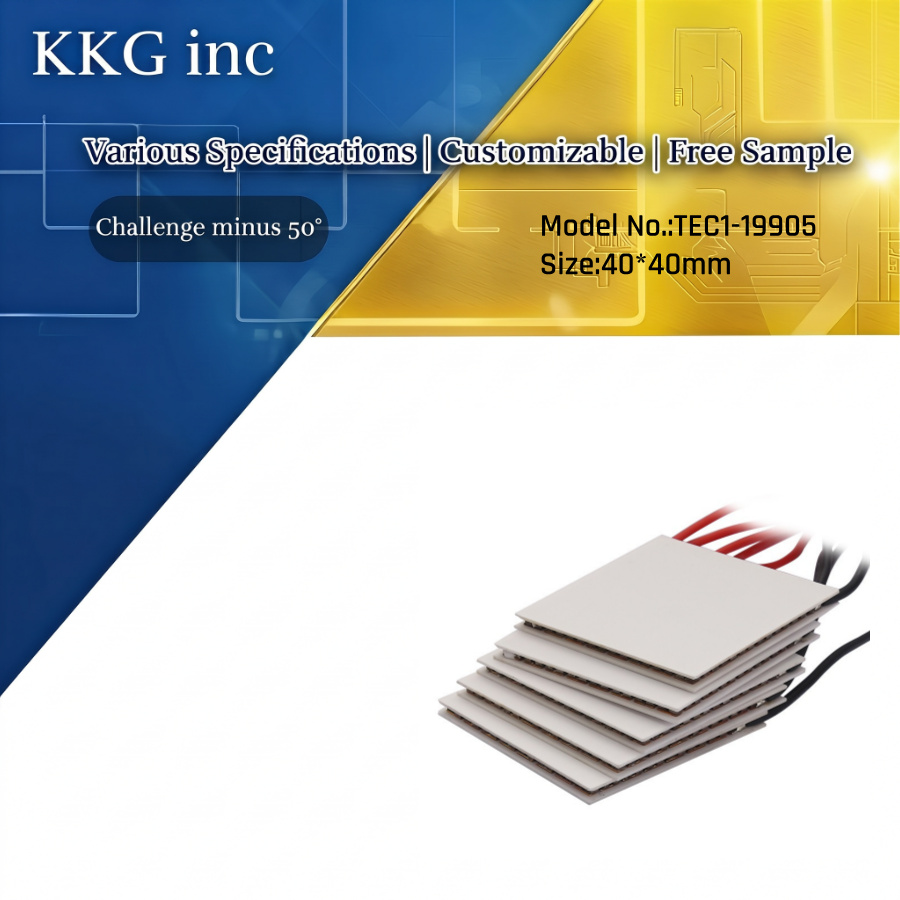

- 40*40mm compact square ceramic plate, easy‑to‑install
- Bidirectional temperature control: cooling & heating available by reversing current
- Refrigerant‑free, environmental‑friendly, no compressor
- Flexible customization: bulk thermoelectric module with custom wire length, pin and solder requirements
- Strict quality inspection for each industrial thermoelectric module before delivery
🔷Product Applications
This thermoelectric module for industrial chiller and laser cooling fits a wide variety of temperature‑control scenarios:
• Semiconductor temperature control
• Small industrial water chiller & cooling systems
• Laser equipment cooling
• Medical equipment cooling
• Laboratory thermoelectric refrigeration
• Electronic component constant‑temperature platform
• Precision instrument thermal management
🔷 Product Structure
![]()
🔷Operation Principle
The thermoelectric cooling module works on the Peltier effect. When DC current flows through the thermoelectric module, heat will be transferred from one ceramic side to the opposite side. One surface turns cold for refrigeration, while the other side generates heat which must be dissipated by a matched heat sink. By reversing the direction of direct‑current, the thermoelectric module can switch between cooling mode and heating mode.
🔷FAQ
Q1: Can I buy TEC1‑19905 thermoelectric module in bulk?
A: Yes, we are a thermoelectric module supplier offering wholesale thermoelectric module and bulk thermoelectric module orders, welcome to send your quantity inquiry.
Q2: Do you provide OEM thermoelectric cooling module and custom thermoelectric module service?
A: Custom service is available, including customized lead‑wire length, soldering terminals, special ceramic size and performance adjustment.
Q3: What heat sink do I need for this 40*40mm thermoelectric cooling module?
A: A matched aluminum or copper heat‑sink is required for the hot side. Without effective heat dissipation, the cooling performance of this industrial thermoelectric module will drop sharply.
Q4: Can this thermoelectric module for laser cooling be used continuously 24 hours?
A: Yes, this high‑current thermoelectric cooling module supports long‑time continuous operation with good heat‑dissipation condition.
