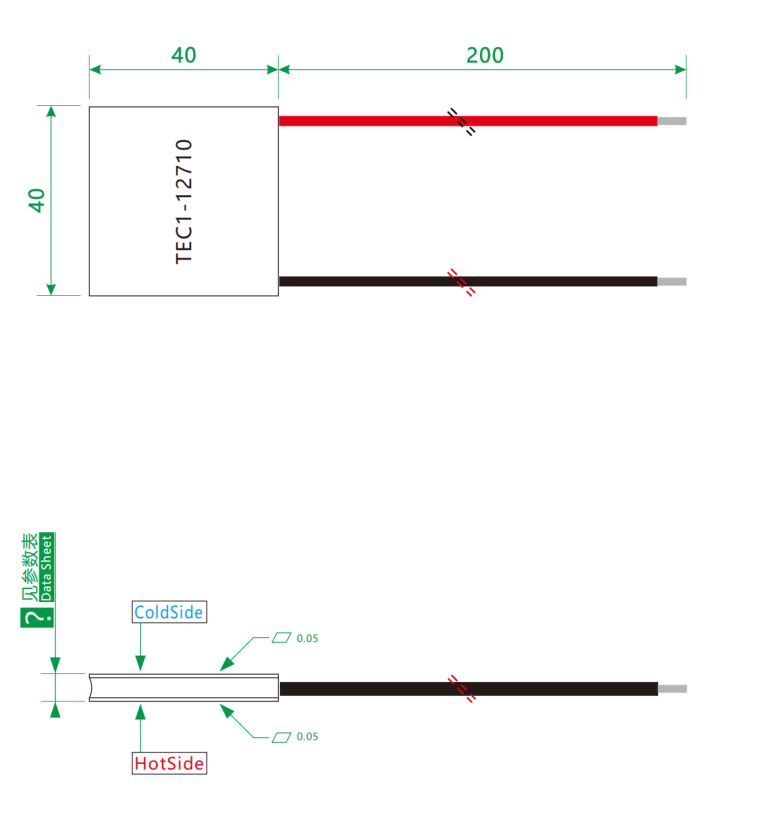

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12710 | K10 | 60 | 1.19 | 15.2 | 10 | 152 | 40×40×3.4 |
| K12 | 65 | | | | | 40×40×3.6 |
| K14 | 70 | | | | | 40×40×3.8 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.4mm (sintered process) |
| Lead Wire | Super‑soft silicone wire 18AWG / L=200mm |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 4kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh |

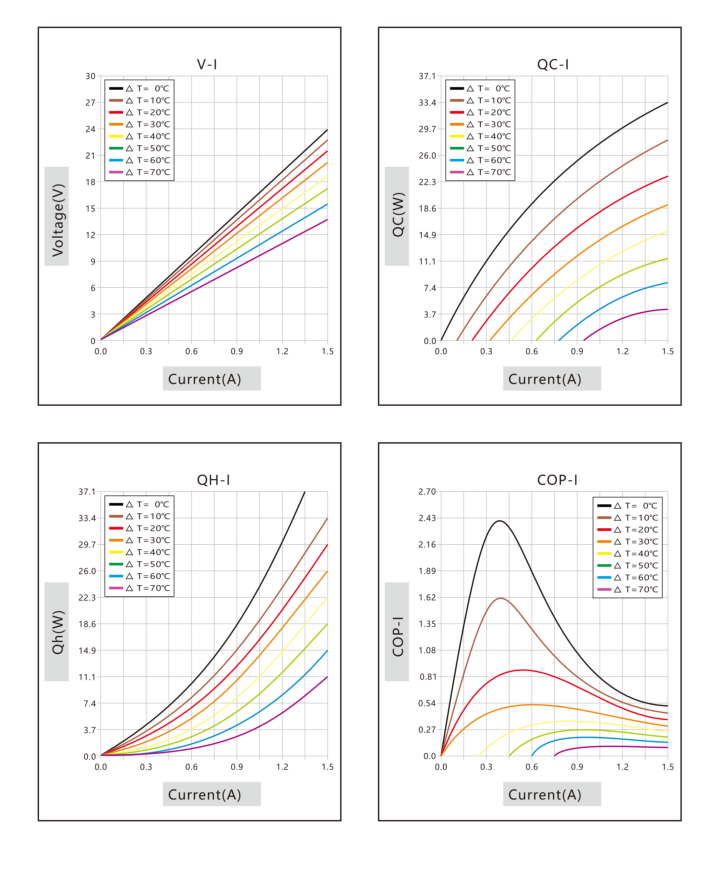

🔷 Performance Curve
![]()
🔷 Product Overview
Our TEC1‑12710 40*40mm element peltier module is a high‑performance thermoelectric cooling chip. As one typical high temperature difference element peltier refrigeration module, it converts electric energy into cold and heat without refrigerant.
This solid‑state element peltier thermoelectric cooler is widely chosen by OEM buyers and system integrators. It delivers stable cooling capacity for small‑scale thermal management projects. We also support wholesale element peltier module and custom element peltier cooling plate service for bulk‑order clients.
🔷 Product Features
- High‑power element peltier element with strong cooling capacity
- Compact 40×40mm size, easy‑to‑install thermoelectric cooler
- Large temperature difference, excellent thermal stability
- Industrial‑grade quality, long service life
- No vibration, no noise, zero refrigerant
- Flexible cooling & heating control, reversible temperature function
- Available for wholesale, OEM and customized service
🔷Product Applications
This element peltier thermoelectric cooling module fits a wide range of temperature‑control fields:
✅ Laser cooling: Element Peltier for laser equipment heat dissipation
✅ Industrial chiller: Element Peltier thermoelectric cooling for industrial chiller
✅ Electronic thermal management: Element Peltier for semiconductor temperature control
✅ Medical refrigeration: Element Peltier refrigeration for medical equipment
✅ Small cooling boxes, beauty instruments, laboratory thermostat, battery cooling systems
🔷 Product Structure
![]()
🔷Operation Principle
The element peltier thermoelectric cooler works on the Peltier effect. When DC current flows through the element peltier module, one ceramic side absorbs heat and becomes cold, the opposite side releases heat and turns hot. By reversing DC current direction, you can switch heating and cooling mode freely. No compressor or coolant is required during operation.
🔷FAQ
Q1: Are you an element peltier supplier? Can I buy TEC1‑12710 in bulk?
A: Yes, we are a professional element peltier supplier. Wholesale thermoelectric cooler including TEC1‑12710 40*40mm is available, competitive prices for large‑volume orders.
Q2: Can you provide OEM Element Peltier cooler service?
A: Sure, OEM TEC modules and custom element peltier cooling plate are supported, we can adjust wire length, surface treatment and parameters according to your drawings.
Q3: What cooling projects is this high‑power element peltier module suitable for?
A: This 40×40mm TEC1‑12710 element peltier fits laser cooling, semiconductor temperature control, medical refrigeration, small industrial chiller and other thermal‑control systems.
Q4: How long is the service life of this industrial‑grade element peltier cooler?
A: Under rated working current and good heat dissipation condition, its service life can reach more than 50,000 hours
