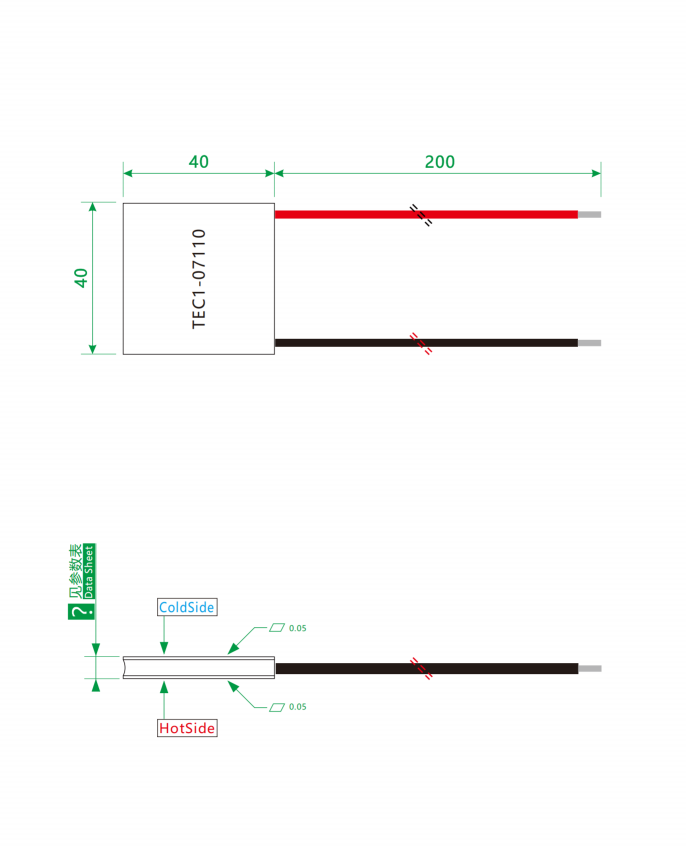

🔷Product Drawing

🔷Basic Performance Spec

🔷Additional Performance Spec

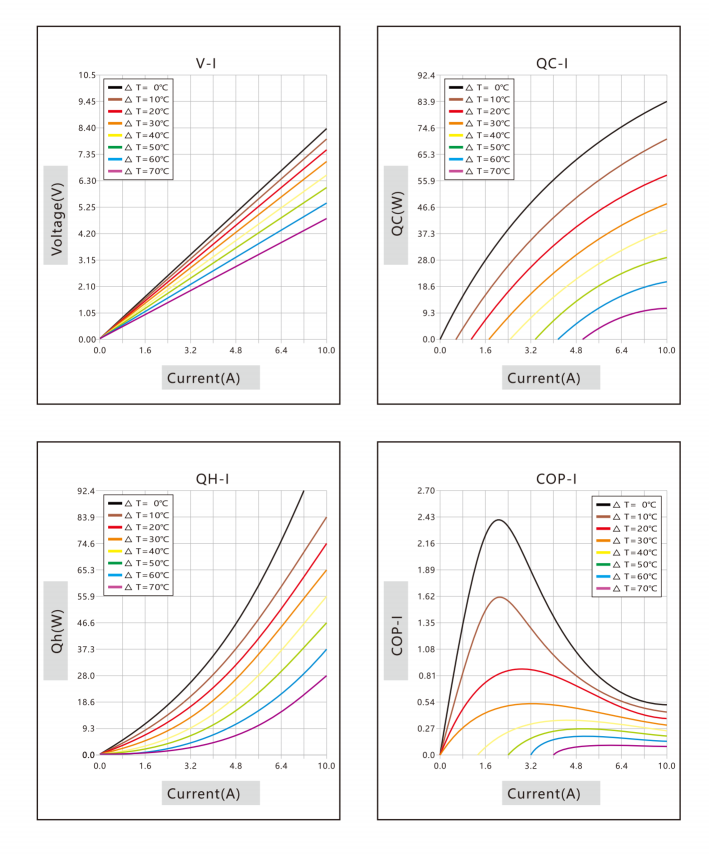

🔷Performance Curve

🔷Product Overview

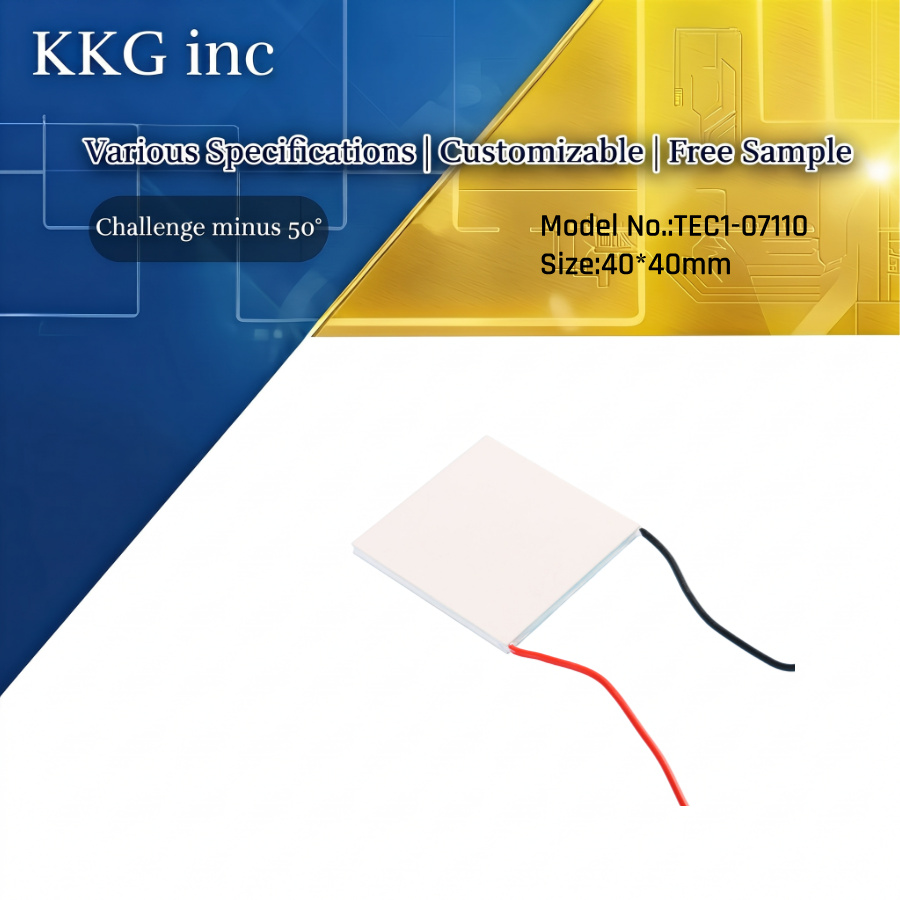

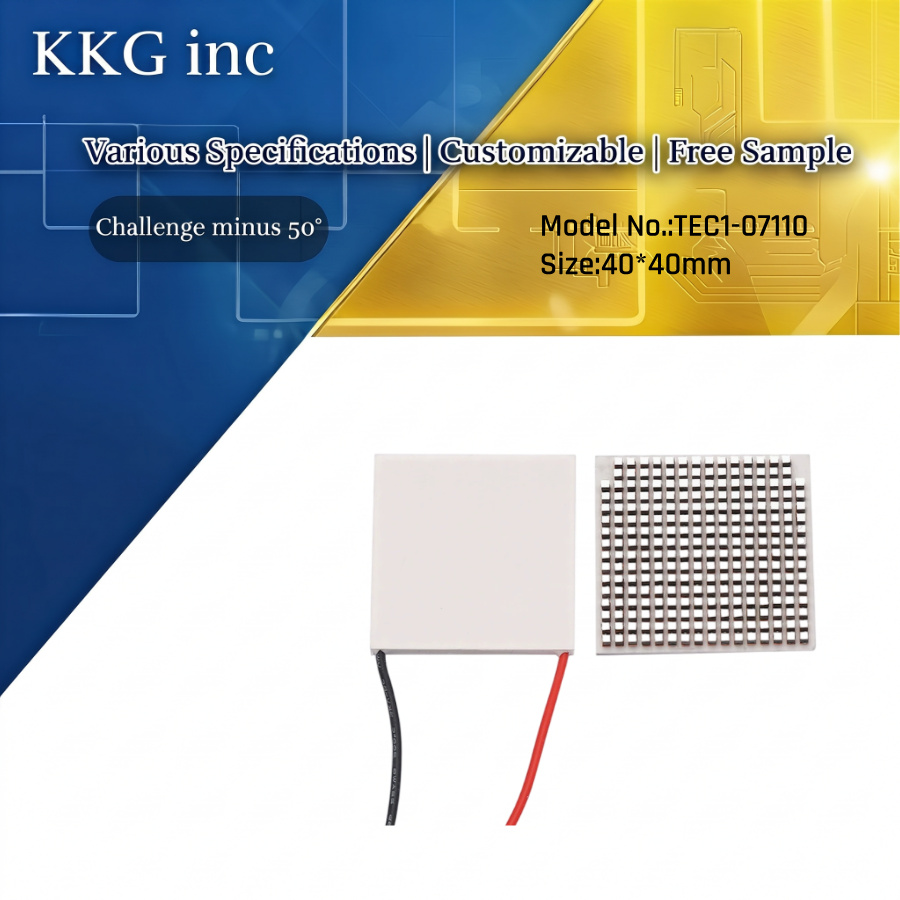

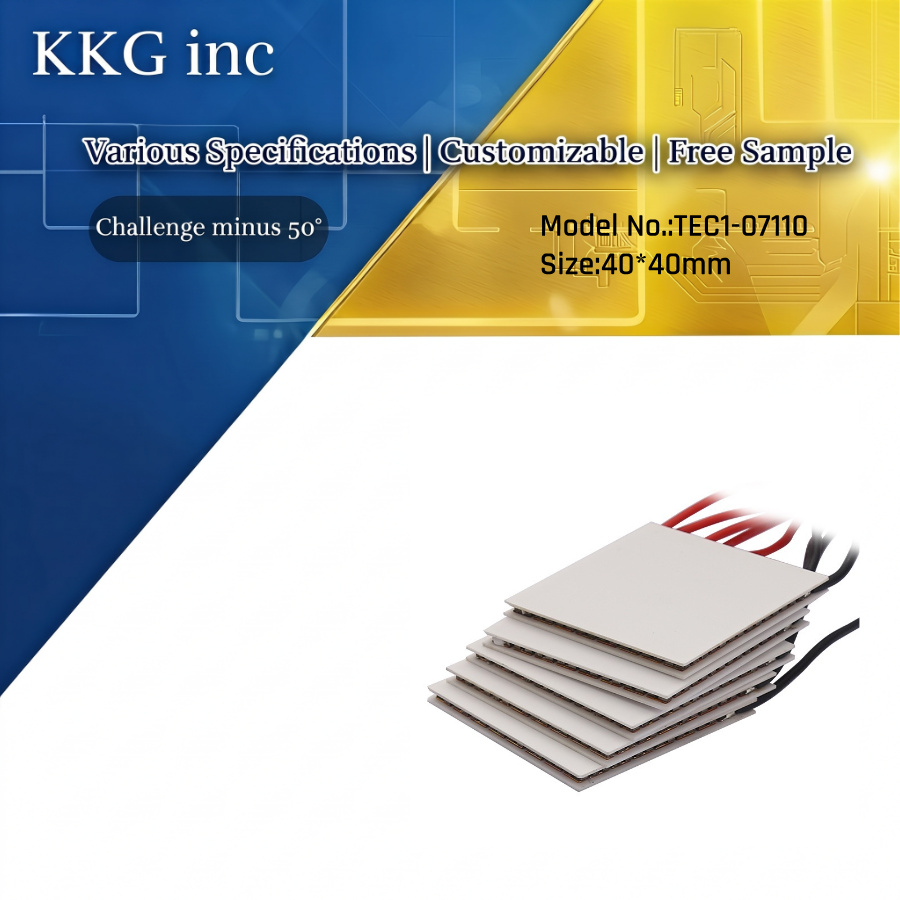

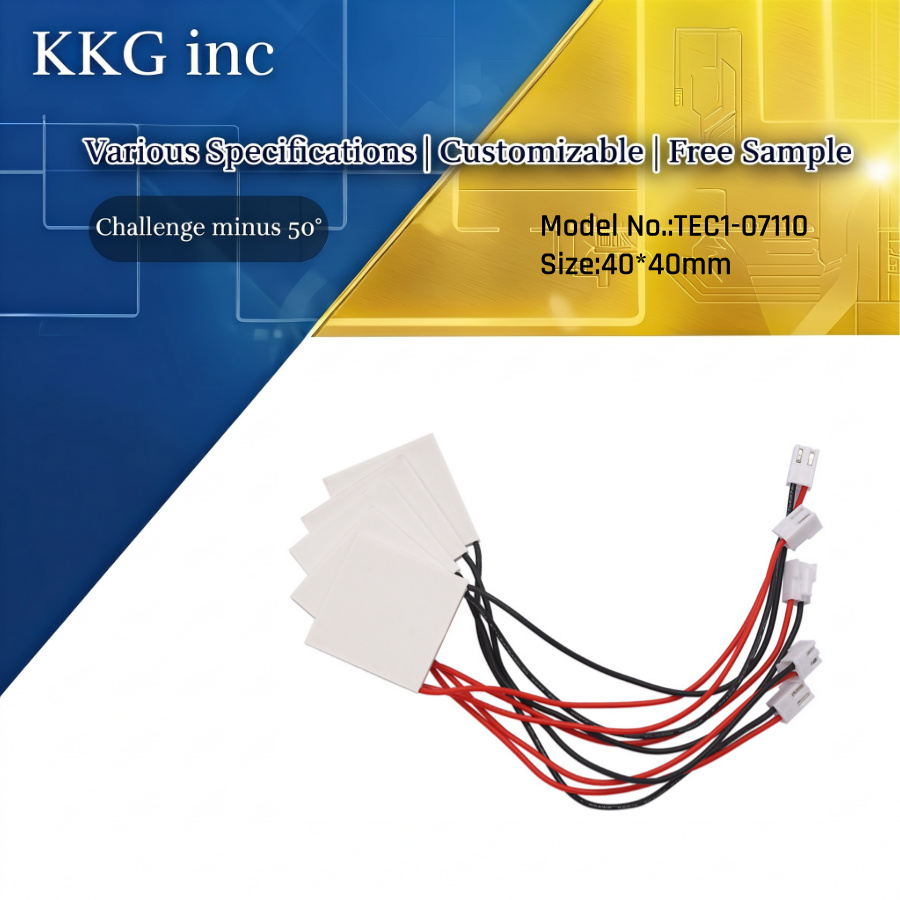

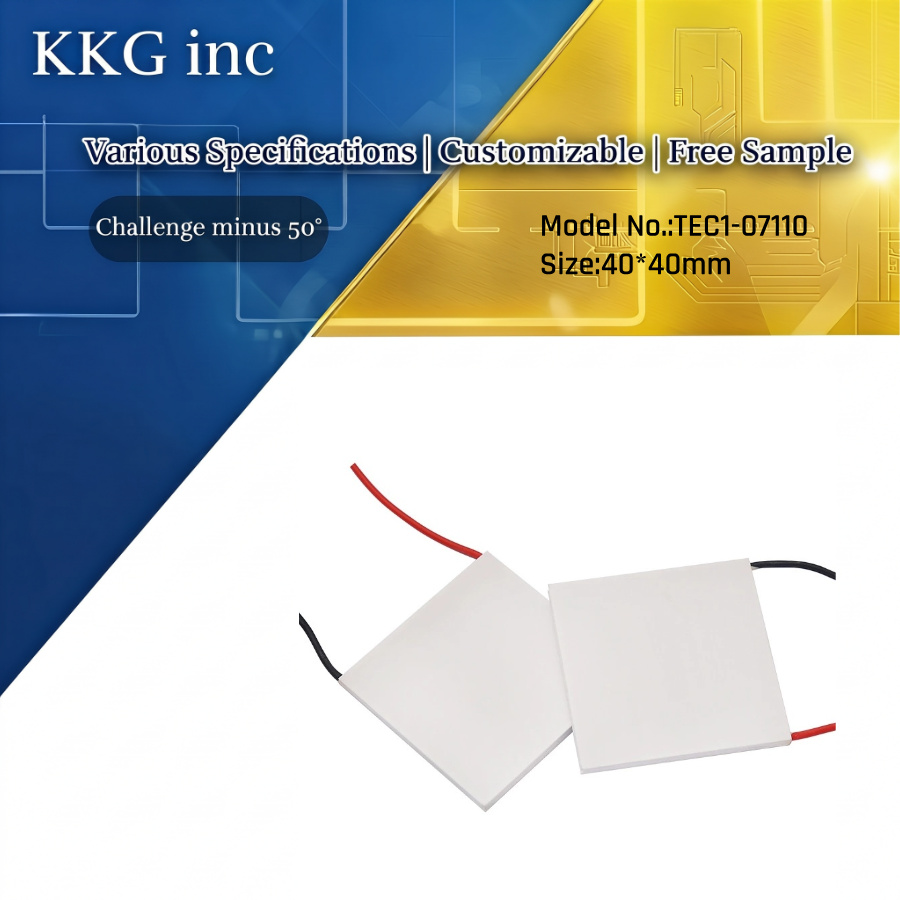

The TEC1-07110 Thermoelectric Cooler 40*40mm is a compact thermoelectric cooling module based on the Peltier effect. It provides solid-state cooling without the need for conventional refrigerants or mechanical compressors.

With a 40×40mm footprint, this thermoelectric cooler can be integrated into compact cooling equipment, electronic temperature-control systems and customized cooling assemblies.

For customers searching for a 12v 15 amp peltier module, the TEC1-07110 can be evaluated according to the required voltage, current, cooling capacity and system heat dissipation conditions.

The module is suitable for both standard applications and customized thermoelectric cooling projects.

🔷Product Features

1. Compact 40×40mm Design

The 40×40mm structure provides a practical solution for equipment with limited installation space.

2. Solid-State Cooling

The Peltier cooling principle provides cooling without compressors or mechanical moving parts.

3. Precise Temperature Control

Thermoelectric cooling modules can be controlled by adjusting the input voltage and current, making them suitable for temperature-control applications.

4. Flexible System Integration

The TEC1-07110 can be integrated with heat sinks, fans, water cooling systems and temperature controllers according to the application.

5. Suitable for Customized Projects

For customers requiring a custom 12v 15a peltier module, parameters such as dimensions, wires, connectors and module configuration can be discussed according to project requirements.

6. Suitable for B2B Applications

The product can be supplied for engineering development, equipment manufacturing, OEM projects and bulk purchasing.

🔷Product Applications

The TEC1-07110 40×40mm thermoelectric cooler can be used in a variety of temperature-control and cooling applications.

Electronic Cooling

Used for cooling electronic components and localized heat sources where compact cooling is required.

Semiconductor Temperature Control

Peltier modules can be integrated into semiconductor testing and temperature-control equipment.

Laser Cooling

Thermoelectric modules can be used for temperature management of laser and optical components.

Optical Equipment

Suitable for temperature stabilization in certain optical and optoelectronic systems.

Laboratory Equipment

Can be integrated into compact laboratory temperature-control equipment.

Portable Cooling Equipment

The compact size makes the module suitable for selected portable cooling designs.

Industrial Temperature Control

Peltier modules can be used as part of industrial thermoelectric cooling and temperature-control systems.

Customized Cooling Equipment

Suitable for OEM and custom cooling assemblies where specific dimensions and electrical parameters are required.

🔷Product Structure

🔷Operation Principle / Work Principle

The TEC1-07110 works according to the Peltier effect.

When direct current passes through the thermoelectric semiconductor elements, heat is transferred from one side of the module to the other.

As a result:

One side becomes cold → absorbs heat

The other side becomes hot → releases heat

If the polarity of the DC power supply is reversed, the cold and hot sides can also be reversed.

A complete thermoelectric cooling system normally consists of:

Power Supply → Peltier Module → Cold-Side Heat Load → Hot-Side Heat Dissipation

The hot side is particularly important. If heat cannot be effectively removed from the hot side, the temperature difference and actual cooling performance will be affected.

Therefore, when using a 12v 15 amp peltier module, the power supply and heat dissipation system should be designed together with the Peltier module.

🔷FAQ

Q1: What is the TEC1-07110 Peltier module?

The TEC1-07110 is a 40×40mm thermoelectric cooling module designed for Peltier-based cooling and temperature-control applications.

Q2: Is the TEC1-07110 a 12V 15A Peltier module?

The actual operating voltage and current should be confirmed from the product datasheet. For applications requiring a peltier module 12v 15 amp, the electrical specification should be checked before ordering.

Q3: Can I use this module for a 12V cooling system?

It depends on the actual electrical specifications of the TEC1-07110 and the requirements of the cooling system. The recommended operating point should be confirmed before installation.

Q4: Can you supply 12v 15 amp Peltier modules in bulk?

Yes. Bulk purchasing can be discussed according to the required specification, quantity, packaging and delivery requirements.

Q5: Are OEM Peltier modules available?

Yes. OEM 12v peltier module projects can be evaluated according to requirements such as dimensions, electrical parameters, wire specifications, connectors and other product details.

Q6: Can I order a custom Peltier module?

Yes. For customers looking for a custom 12v 15a peltier module, customized specifications can be discussed according to the application and system requirements.

Q7: Can you provide wholesale Peltier modules?

Yes. Wholesale 12v 15a peltier module orders can be supported according to the required model, quantity and specifications.

Q8: How do I select the correct Peltier module?

The selection should consider voltage, current, cooling capacity, maximum temperature difference, hot-side temperature, heat load, module dimensions and heat dissipation conditions rather than voltage and current alone.
