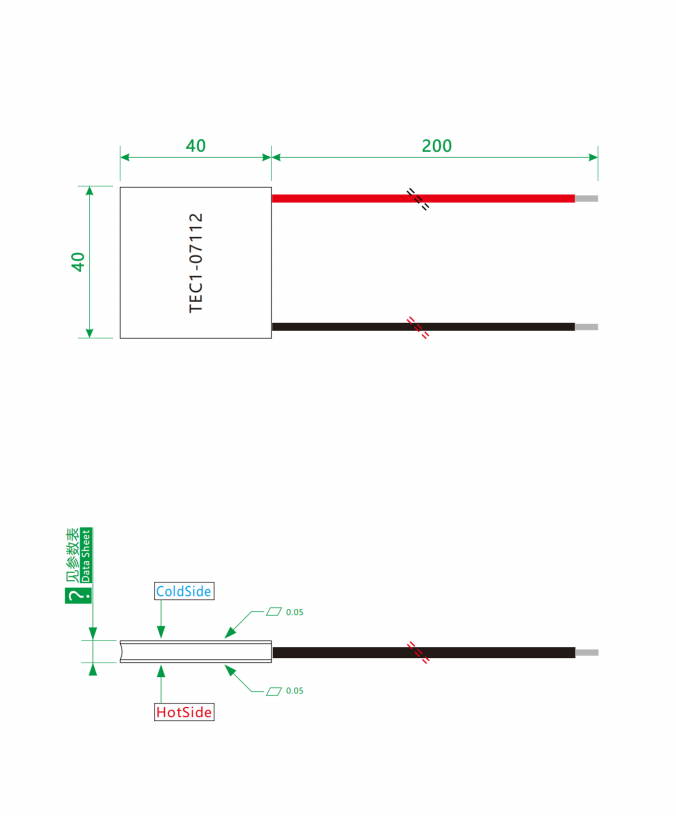

🔷Product Drawing

🔷Basic Performance Spec

🔷Additional Performance Spec

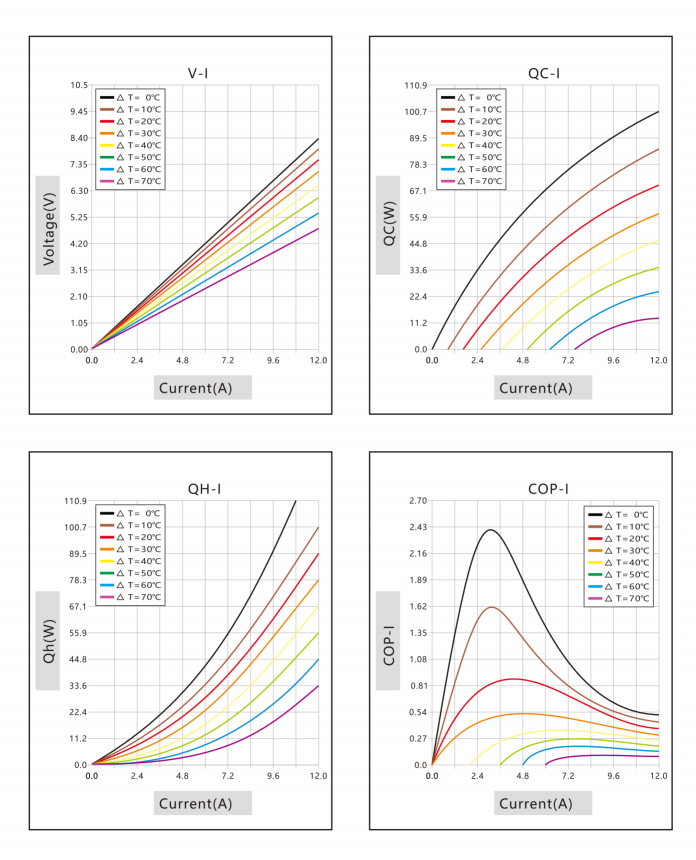

🔷Performance Curve

🔷Product Overview

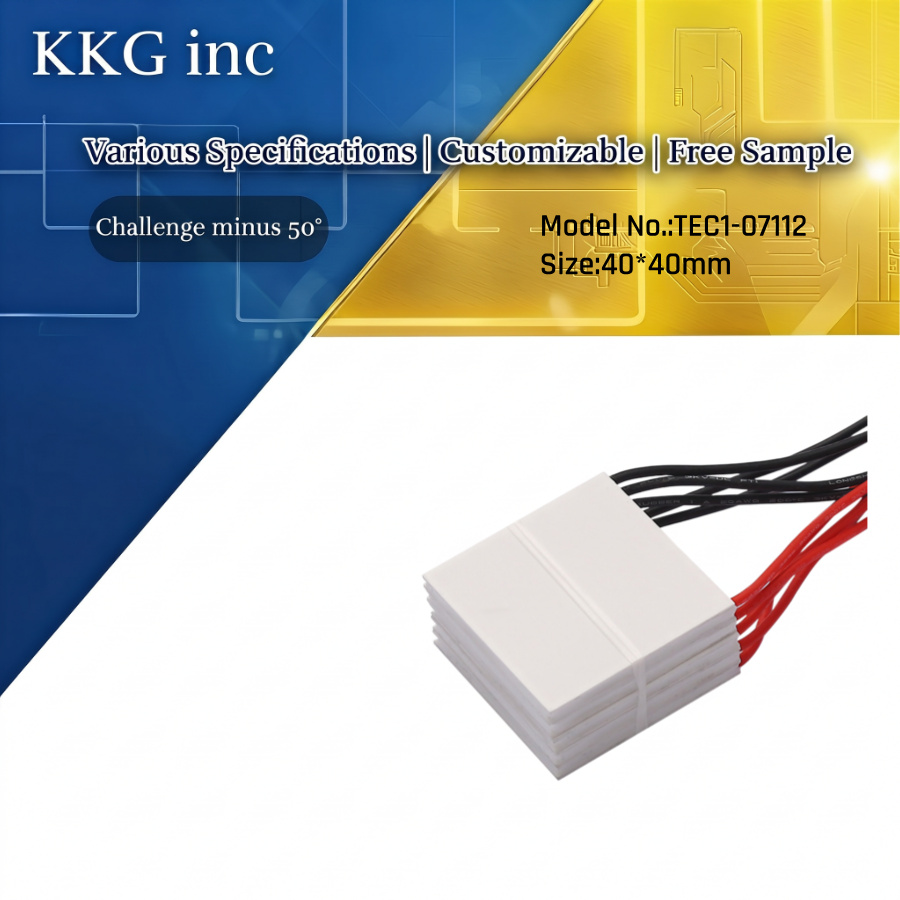

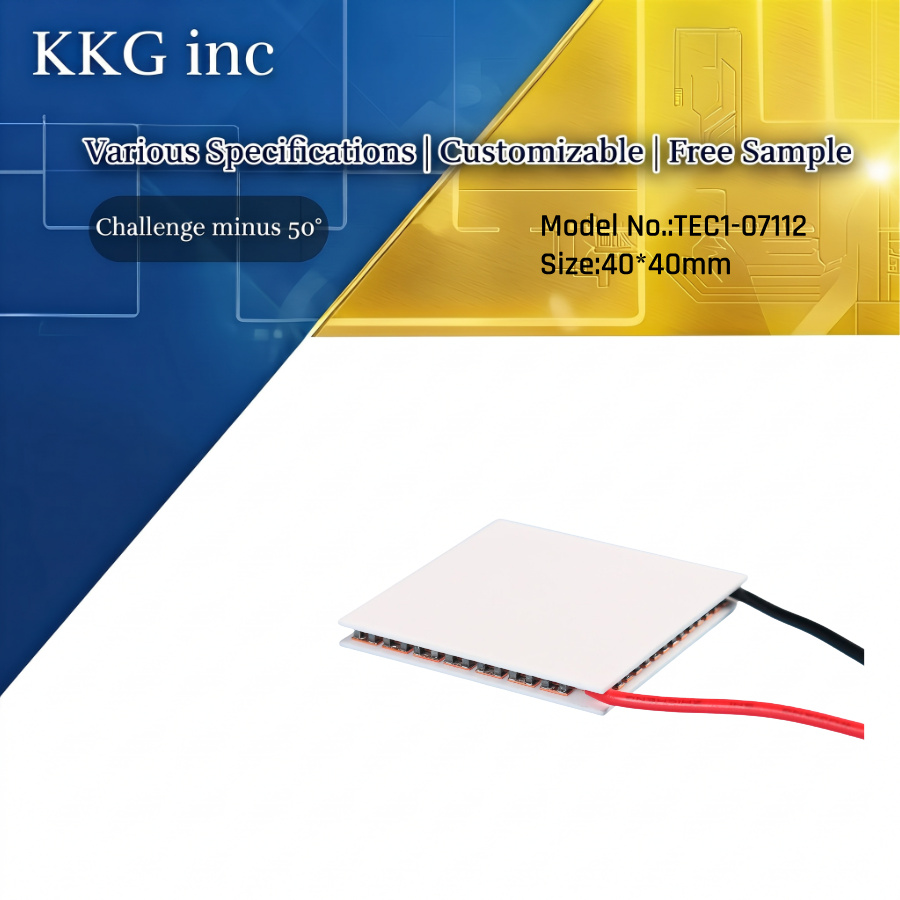

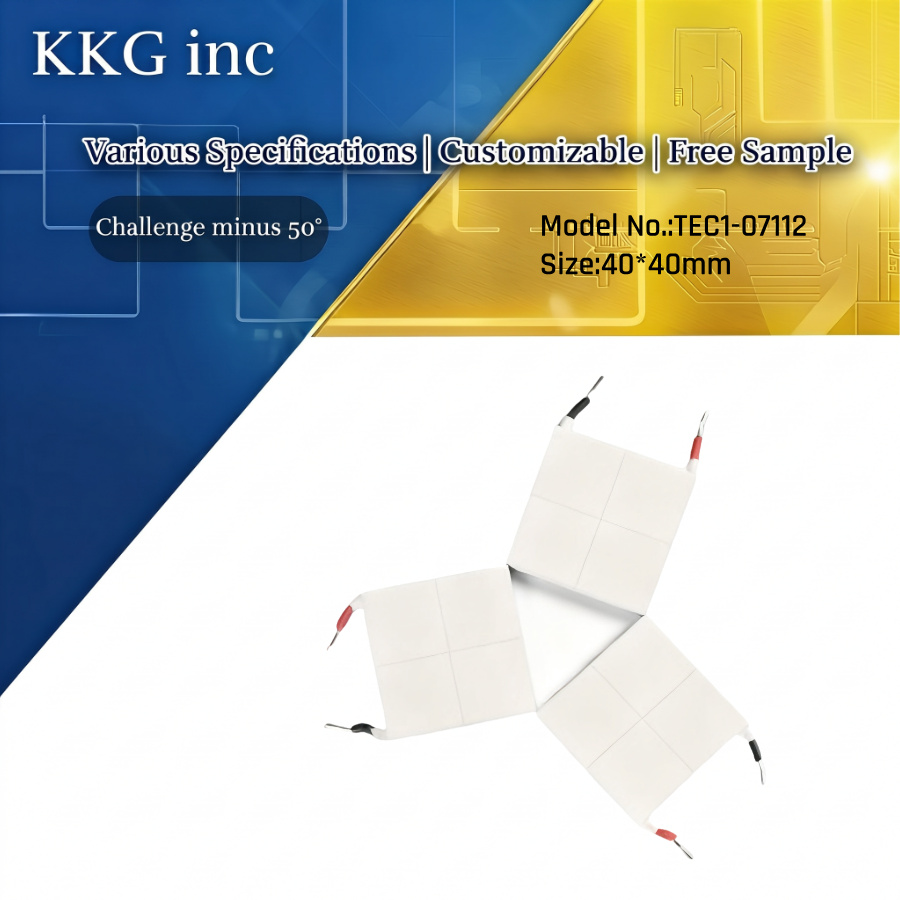

TEC1-07112 Thermoelectric Cooler 40*40mm is a compact TEC module designed for applications that require localized cooling, temperature stabilization or precise thermal management.

Based on the Peltier effect, the module transfers heat from one ceramic surface to the opposite surface when DC current passes through its internal thermoelectric semiconductor elements.

Compared with conventional mechanical refrigeration components, a TEC module has no compressor or refrigerant and can provide compact solid-state temperature control.

The 40×40mm structure makes the TEC1-07112 suitable for equipment where installation space is limited while thermoelectric cooling performance is required.

For B2B customers, the product can also be considered for OEM TEC module, ODM TEC module and custom TEC module projects.

🔷Product Features

1. Compact 40×40mm Size

The 40×40mm structure provides a compact cooling solution for equipment with limited installation space.

2. Solid-State Cooling

The TEC module operates through the Peltier thermoelectric effect without a mechanical compressor.

3. Precise Temperature Control

TEC technology can be combined with temperature sensors and controllers for localized temperature regulation.

4. Flexible Installation

The square module structure makes it convenient to integrate into customized cooling assemblies.

5. Suitable for OEM Applications

The TEC1-07112 can be evaluated for customized equipment and thermal management projects.

6. Custom TEC Module Solutions

For different equipment requirements, customized specifications such as dimensions, wires and performance parameters can be discussed.

🔷Product Applications

The TEC1-07112 40×40mm TEC module can be used in a variety of thermoelectric cooling and temperature-control applications.

Industrial Equipment

• Industrial temperature control equipment

• Compact industrial cooling systems

• Instrument cooling equipment

• Electronic equipment cooling


Optical & Laser Equipment

• Laser cooling systems

• Optical equipment temperature control

• Photonics equipment cooling

• Precision optical instruments


Semiconductor & Electronics

• Semiconductor temperature control

• Electronic component cooling

• PCB thermal management

• Sensor temperature control


Medical & Laboratory Equipment

• Medical instrument cooling

• Laboratory temperature control

• Analytical equipment

• Small refrigeration systems


Consumer & Compact Cooling Equipment

• Mini cooling devices

• Portable cooling equipment

• Small thermoelectric refrigerators

• Electronic cooling systems

🔷Product Structure

🔷Operation Principle / Work Principle

The TEC module works according to the Peltier effect.

When DC current passes through the semiconductor elements inside the TEC module, heat is absorbed on one ceramic surface and released on the opposite surface.

The basic working process can be understood as:

DC Power → Semiconductor Elements → Heat Absorption on Cold Side → Heat Transfer → Heat Release on Hot Side

Therefore, one side of the TEC module becomes cold while the opposite side becomes hot.

The actual cooling performance depends not only on the TEC module itself but also on factors such as:

• Input voltage

• Operating current

• Hot-side temperature

• Heatsink performance

• Thermal interface material

• Ambient temperature

• System insulation

• Temperature control strategy


For this reason, selecting a suitable TEC module should consider the complete cooling system rather than only the module dimensions.

🔷FAQ

Q1: What is a TEC module?

A TEC module is a thermoelectric cooling component that uses the Peltier effect to transfer heat from one side to another when DC power is applied.

Q2: What size is the TEC1-07112?

The TEC1-07112 shown on this product page has a 40×40mm module size.

Q3: Can the TEC1-07112 be customized?

Yes. For OEM and ODM projects, customization can be discussed according to the required dimensions, electrical parameters, wire specifications and application conditions.

Q4: Do you provide TEC module wholesale?

Yes. Bulk purchasing and wholesale requirements can be discussed for suitable TEC module models and specifications.

Q5: Are you a TEC module manufacturer?

For B2B customers, the product can be supplied for manufacturer, distributor, OEM, ODM and bulk purchasing requirements. Customers can discuss product specifications and project requirements directly with the supplier.

Q6: Can you provide a custom TEC module?

Yes. Custom TEC module solutions can be developed according to application requirements, including module dimensions, electrical specifications and wire configurations.

Q7: Where can a 40×40mm TEC module be used?

A 40×40mm TEC module can be considered for industrial cooling, laser cooling, optical equipment, semiconductor temperature control, electronic cooling, medical equipment and other compact thermal management applications.

Q8: How should I select a TEC module?

Engineers should consider cooling capacity, temperature difference, voltage, current, hot-side temperature, heatsink performance, installation dimensions and operating conditions together.
