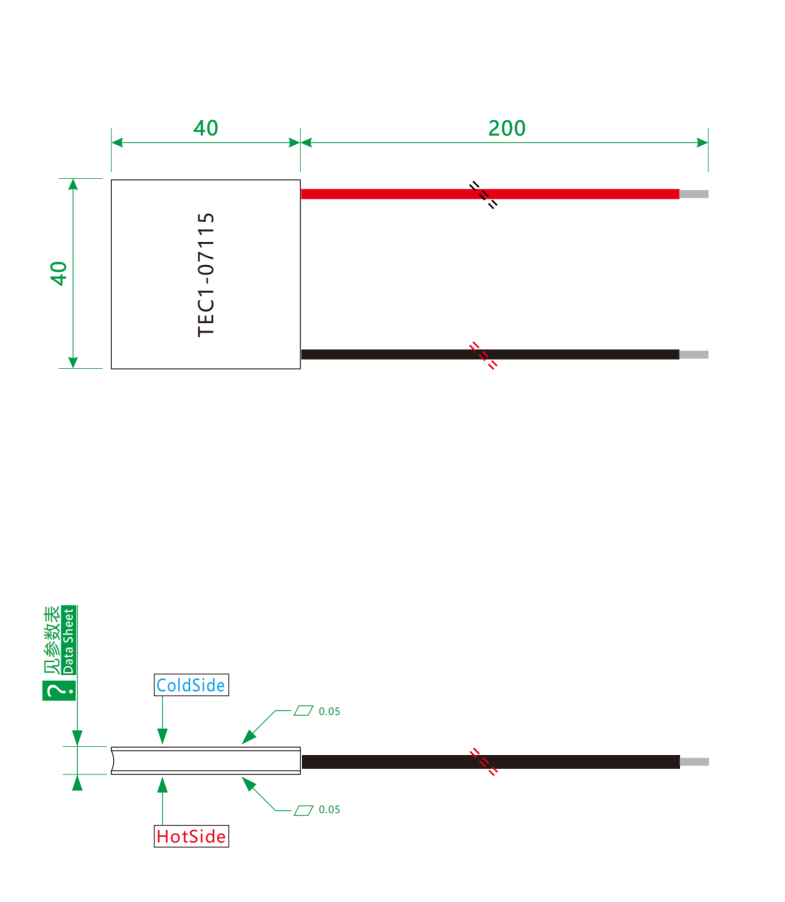

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-07115 | K10 | 60 | 0.44 | 8.5 | 15 | 128 | 40×40×3.4 |
| K12 | 65 | | | | | 40×40×3.6 |
| K14 | 70 | | | | | 40×40×3.8 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.4mm (sintered process) |
| Lead Wire | Super‑soft silicone wire 20AWG / L=200mm (dual wire) |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 4kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh |

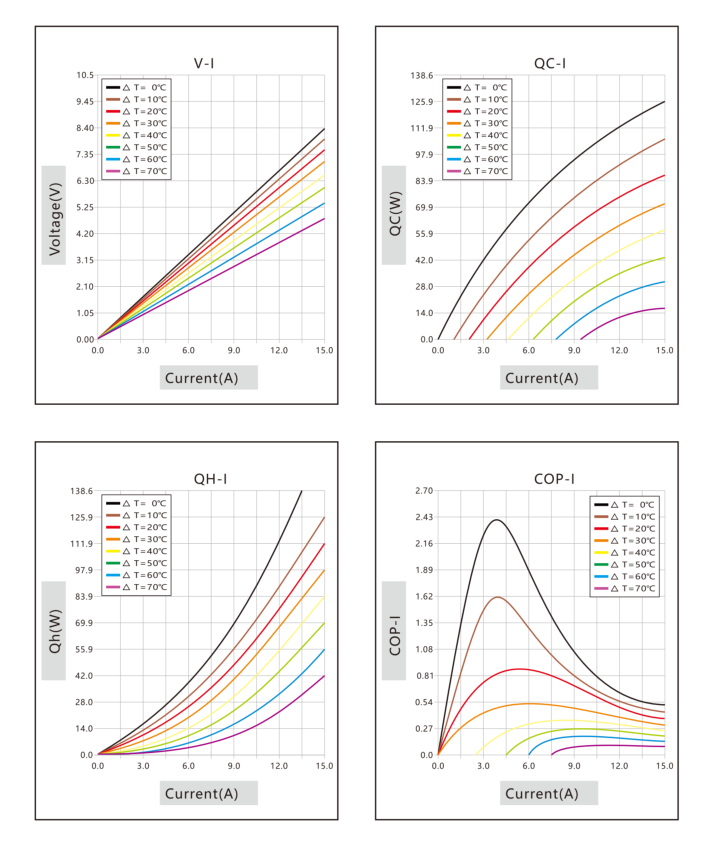

🔷 Performance Curve
![]()
🔷 Product Overview
TEC1‑07115 Thermoelectric Cooler 4040mm is a dual‑function thermoelectric Peltier Heater chip. It can realize both refrigeration and heating by reversing DC power supply. As one of popular 4040 Peltier Heater heating plate, this compact‑size thermoelectric heating element is widely selected by equipment manufacturers instead of large‑size thermoelectric Peltier heater for small‑space temperature‑controlled projects. We are reliable Peltier Heater supplier, offering wholesale thermoelectric Peltier Heater and bulk‑order service.
🔷 Product Features
- Dual‑use cooling & heating: works as thermoelectric cooler and reversible Peltier Heater module
- Standard 40*40mm footprint, easy for mechanical installation
- Solid‑state no‑moving‑part design, low noise and long service life
- Precise temperature adjustment, perfect for semiconductor precise heating
- Support custom Peltier heating plate modification and OEM Peltier Heater module production
- Fast heating‑up speed, stable output for continuous industrial heating task
🔷Product Applications
- Thermoelectric Peltier Heater for industrial heating: industrial small constant‑temperature chamber, heating test station
- Peltier Heater for laser temperature control: laser module constant‑temperature holding
- Peltier Heater for laboratory incubator: lab sample heating & thermal insulation equipment
- Thermoelectric heating module for medical equipment: medical analyzer, biological sensor temperature control
- Small‑size precision thermostat, beauty device heating, mini heating cabinet and other OEM temperature‑controlled machinery

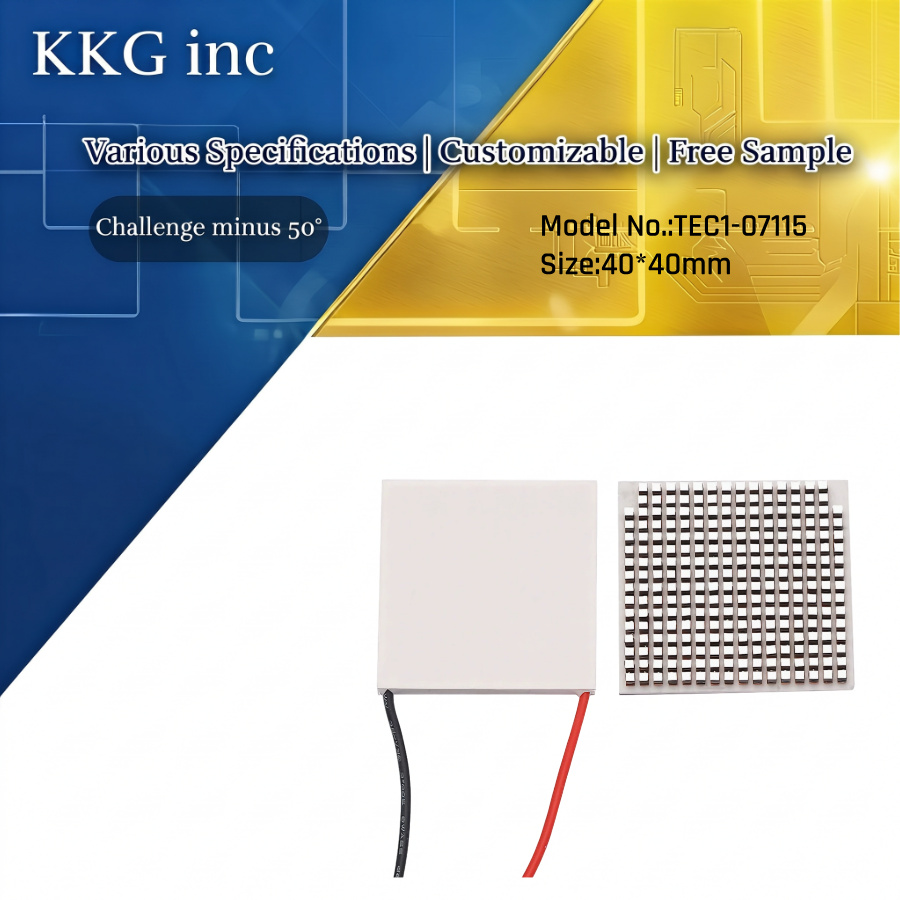

🔷 Product Structure
![]()
🔷Operation Principle/ Work Principle
The TEC1‑07115 thermoelectric chip follows the Peltier effect. When direct‑current flows through the thermocouple pairs, one ceramic side absorbs heat for cooling. Once you reverse the DC polarity, heat will be released on the same side, and the unit turns into a thermoelectric Peltier Heater chip for heating work. Engineers can match power supply to achieve semiconductor precise heating or cooling target.
🔷FAQ
Q1: Can this TEC1‑07115 40*40mm thermoelectric cooler be used as a Peltier Heater module?
A1: Yes, it is reversible. Reversing DC power will switch it from cooling mode to heating mode and become a high‑power Peltier Heater module.
Q2: Do you provide wholesale thermoelectric Peltier Heater for bulk orders?
A2: Absolutely. As a professional Peltier Heater supplier, we support bulk Peltier Heater element manufacturer supply, competitive wholesale price for distributors.
Q3: Can I get a custom Peltier heating plate or OEM Peltier Heater module based on this model?
A3: Yes, custom‑made lead length, wire connector and special surface treatment are available for OEM project.
Q4: Is this 40*40 Peltier Heater heating plate suitable for laboratory incubator heating?
A4: Yes, stable and precise heating output makes it fit for Peltier Heater for laboratory incubator and small medical temperature‑control devices.
