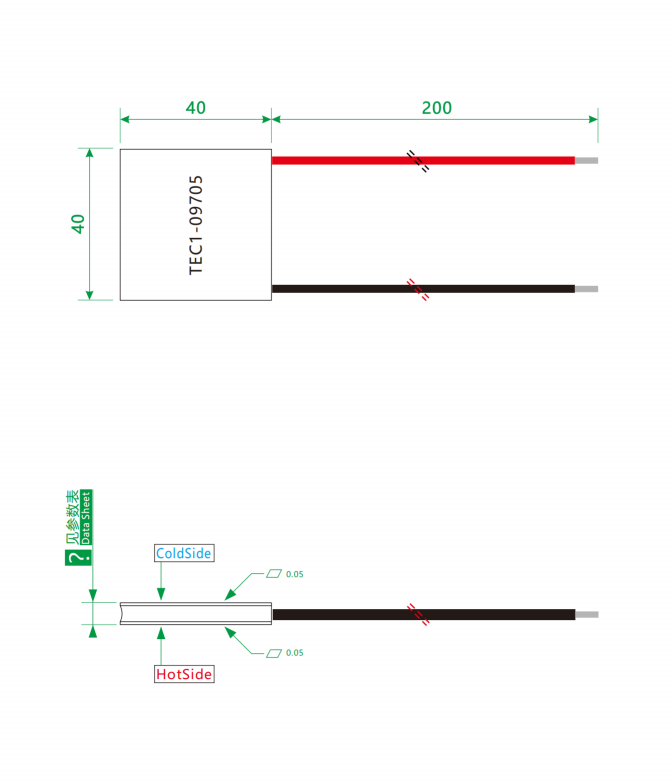

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Type Model | In APE | Max Temp Diff. ▲Tmax (°C) | Internal Resistance ACRohm (Ω) | Max Voltage Umax (V) | Max Current Imax (A) | Max Power Pmax (W) | Size (mm) |
|---|
| TEC1-09705 | K12 | 60 | 1.87 | 12 | 5 | 60 | 40x40x3.6 |
| K20 | 65 | 1.87 | 12 | 5 | 60 | 40x40x4.4 |
| K28 | 70 | 1.87 | 12 | 5 | 60 | 40x40x5.2 |
🔷Additional Performance Spec
| Parameter | Specification |
|---|
| Substrate Specification | 96% Alumina (Al₂O₃) 0.76 + Oxygen-Free Copper 0.4 sintering process |
| Lead Wire Specification | Special soft silicone wire 20AWG / L=200mm |
| Terminal Specification | Standard products have no terminals; can be added upon request |
| Assembly Pressure | 4kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber seal |
| Max Temperature Resistance | Bismuth-tin (Bi-Sn) environmentally friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |

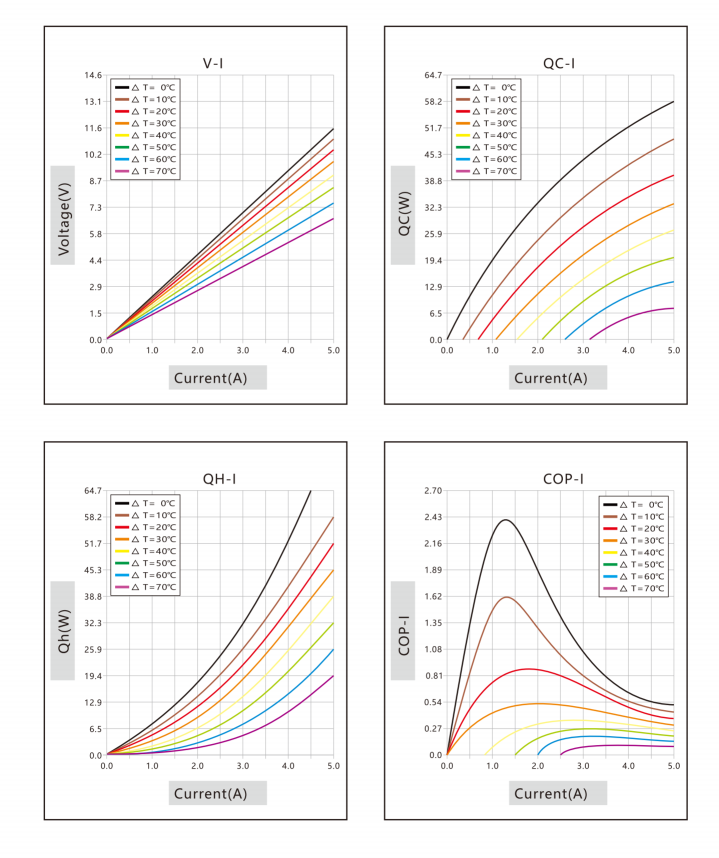

🔷Performance Curve
![]()
🔷 Product Overview
TEC1‑09105 Thermoelectric Cooler 40*40mm is one of our popular thermoelectric peltier module. Unlike large‑size 100x100 high‑power peltier element, this 40*40mm compact‑size thermoelectric cooling chip uses semiconductor thermoelectric effect to realize fast cooling and heating without refrigerant.
It is widely used for semiconductor temperature control, laser cooling, laboratory thermostat, small‑scale industrial chiller, battery thermal management and medical equipment cooling. As a professional thermoelectric cooler supplier, we supply wholesale thermoelectric cooler, OEM TEC module and custom peltier cooling plate service for global buyers.
🔷 Product Features
- Compact 40×40mm square size, easy for compact equipment integration.
- Stable cooling‑heating switch function, solid‑state no‑vibration operation.
- High‑quality ceramic substrate, good insulation and long service life.
- Fast temperature response, precise semiconductor temperature control.
- Support OEM, ODM and bulk wholesale order for industrial projects.
- Environment‑friendly peltier refrigeration module without refrigerant.
🔷Product Applications
- Thermoelectric cooling for industrial chiller
- Peltier module for laser cooling
- Semiconductor temperature control
- Thermoelectric peltier module for medical equipment cooling
- Peltier chip for laboratory thermostat
- Thermoelectric cooler for cabinet temperature control
- Peltier cooling for battery thermal management
🔷 Product Structure
![]()
🔷Operation Principle
The TEC1‑09105 thermoelectric cooler works based on the Peltier effect. When DC current flows through the thermoelectric peltier module, one ceramic side absorbs heat (cold side), the opposite side releases heat (hot side). Reversing the DC current direction will swap cold and hot sides, realizing both cooling and heating function.
🔷FAQ
Q1: Can I buy TEC1‑09105 thermoelectric cooler 40*40mm in bulk?
A1: Yes, we are a thermoelectric peltier module supplier. Wholesale thermoelectric cooler and bulk order are available, we also provide custom peltier cooling plate service.
Q2: Can you make OEM TEC module based on TEC1‑09105?
A2: Custom ODM thermoelectric cooling component service is supported, we can modify wire length, add heat sink assembly as your requirement.
Q3: What equipment is this 40x40mm peltier element fit for?
A3: This thermoelectric cooler is perfect for laser cooling, small industrial chiller, medical cooling device, laboratory thermostat, battery thermal management system.
