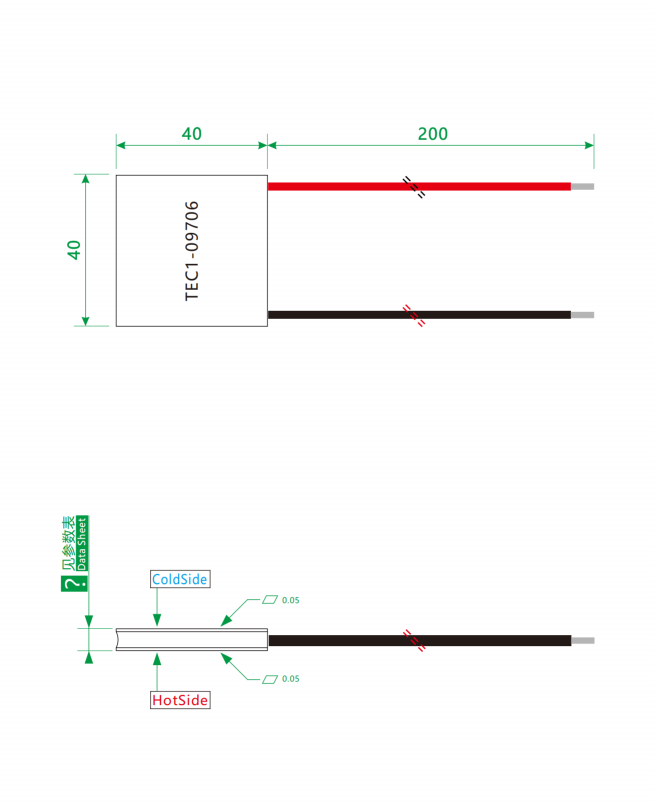

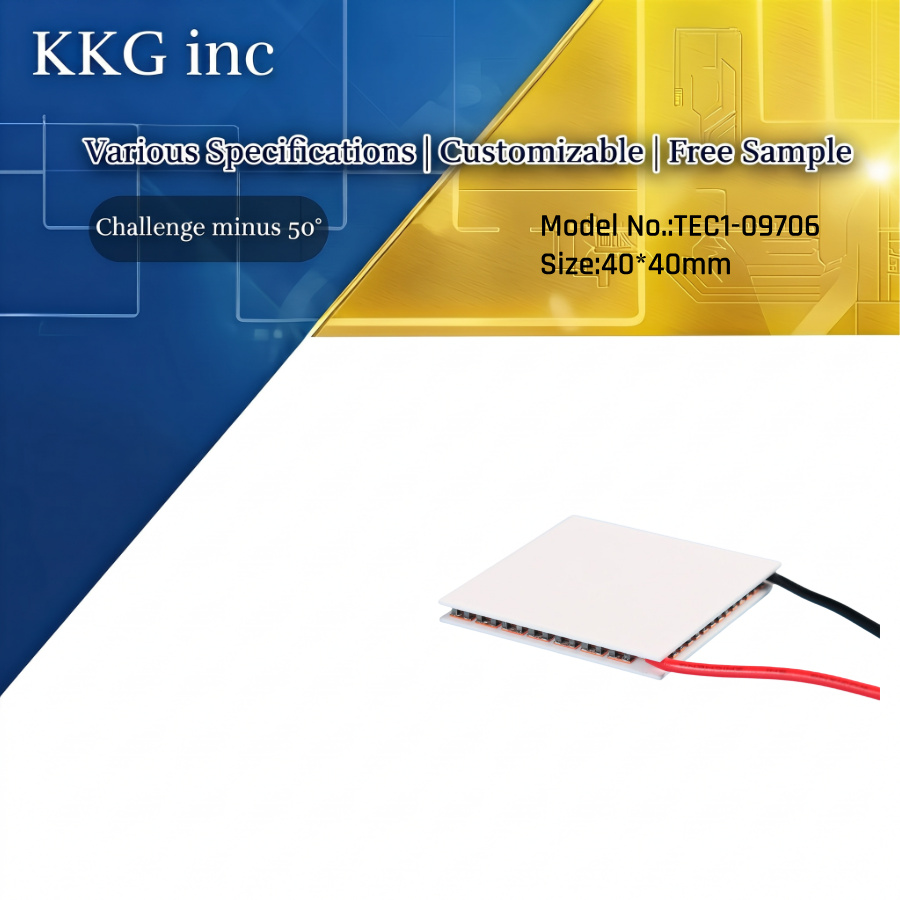

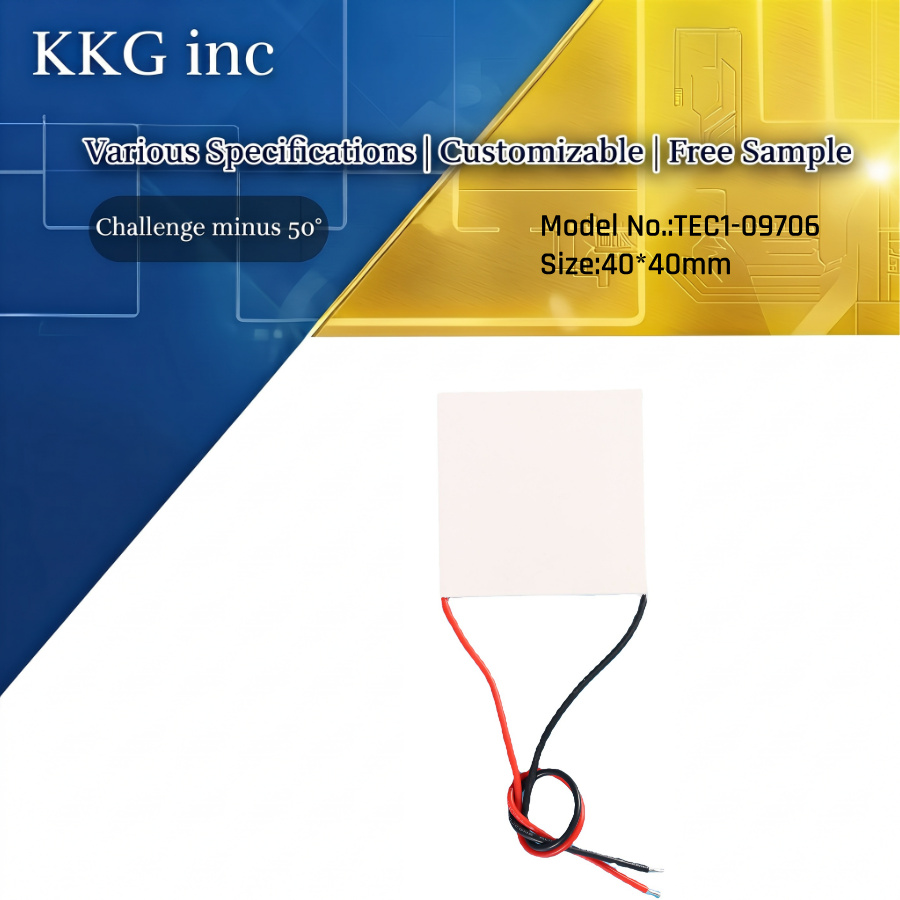

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Type Model | In APE | Max Temp Diff. ▲Tmax (°C) | Internal Resistance ACRohm (Ω) | Max Voltage Umax (V) | Max Current Imax (A) | Max Power Pmax (W) | Size (mm) |
|---|
| TEC1-09706 | K10 | 60 | 1.56 | 12 | 6 | 72 | 40x40x3.4 |
| K18 | 65 | 1.56 | 12 | 6 | 72 | 40x40x4.2 |
| K26 | 70 | 1.56 | 12 | 6 | 72 | 40x40x5.0 |
🔷Additional Performance Spec
| Parameter | Specification |
|---|
| Substrate Specification | 96% Alumina (Al₂O₃) 0.76 + Oxygen-Free Copper 0.4 sintering process |
| Lead Wire Specification | Special soft silicone wire 20AWG / L=200mm |
| Terminal Specification | Standard products have no terminals; can be added upon request |
| Assembly Pressure | 4kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber seal |
| Max Temperature Resistance | Bismuth-tin (Bi-Sn) environmentally friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |

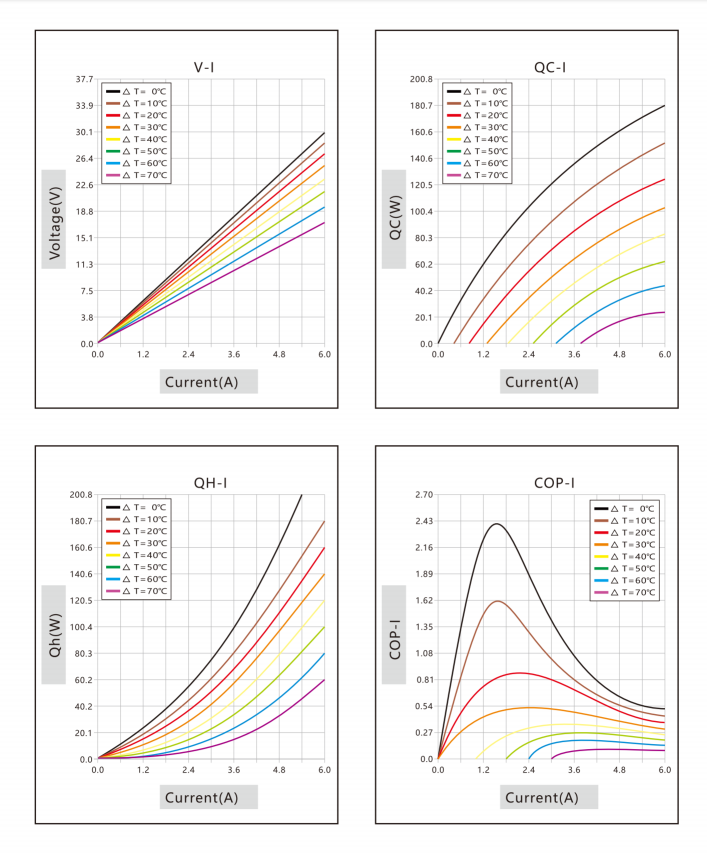

🔷Performance Curve
![]()
🔷 Product Overview
TEC1‑09106 thermoelectric cooler 40*40mm is a popular medium‑power thermoelectric cooler module built with bismuth‑telluride thermoelectric pellets. Unlike large size thermoelectric cooler module such as 100×100 thermoelectric cooler module, this compact 40×40mm unit provides stable cooling output in limited installation space. As a semiconductor temperature control thermoelectric module, it is widely applied for thermoelectric cooling for industrial chiller, laser equipment and small‑scale refrigeration equipment. As a professional thermoelectric cooler module supplier, we provide wholesale high‑power thermoelectric cooling element and bulk purchase thermoelectric cooler module service for global buyers.
🔷 Product Features
- Standard 40×40mm compact size, easy to install inside electronic equipment
- Stable medium‑power cooling output, support long‑time continuous operation
- High‑quality alumina ceramic plate, excellent insulation and thermal conductivity
- Bidirectional heating & cooling function by reversing DC current
- Zero vibration, no noise, no refrigerant, maintenance‑free
- Flexible procurement solutions: wholesale thermoelectric cooler module, OEM thermoelectric cooler module and custom thermoelectric cooling plate service are supported.
🔷Product Applications
- Thermoelectric cooling for industrial chiller
- Thermoelectric cooler module for laser cooling, laser diode temperature stabilization
- Semiconductor temperature control thermoelectric module, electronic component cooling
- Thermoelectric cooler module for medical equipment cooling, diagnostic instruments
- Thermoelectric cooler for laboratory temperature control, small constant‑temperature tank
- Thermoelectric cooling for electronic cabinet temperature regulation
- Thermoelectric cooler for refrigeration equipment, mini‑cooler and cosmetic cryotherapy devices
🔷 Product Structure
![]()
🔷Operation Principle
The TEC1‑09106 thermoelectric cooler module runs based on the Peltier effect. When direct‑current flows into the thermoelectric module, heat will transfer from one ceramic surface to the other. One side absorbs heat and turns cold, while the opposite side releases heat, which must be dissipated by matched heat sink. When you reverse the current direction, this thermoelectric cooling element can switch from cooling mode to heating mode freely.
🔷FAQ
Q1: Can I get bulk purchase thermoelectric cooler module of TEC1‑09106?
A: Yes, we are a professional thermoelectric cooler module supplier. Wholesale thermoelectric cooler module and large‑volume orders are welcome, competitive factory price is available.
Q2: Do you supply OEM thermoelectric cooler module and custom thermoelectric cooling plate?
A: We offer full OEM service for this 40*40mm thermoelectric cooler. Wire length, connector type and surface treatment can be customized as your technical requirements.
Q3: What heat sink should I match with this thermoelectric cooler module?
A: This is a medium‑power thermoelectric cooling element. A sufficient‑capacity heat sink plus cooling fan is strongly recommended. Poor heat dissipation will reduce cooling performance and shorten service life.
Q4: Can TEC1‑09106 replace other 40x40mm thermoelectric cooler module?
A: Please compare voltage, current and cooling parameters before replacement. If you need model‑selection technical support, you can send us your specification requirements.
Get A Free Quote
