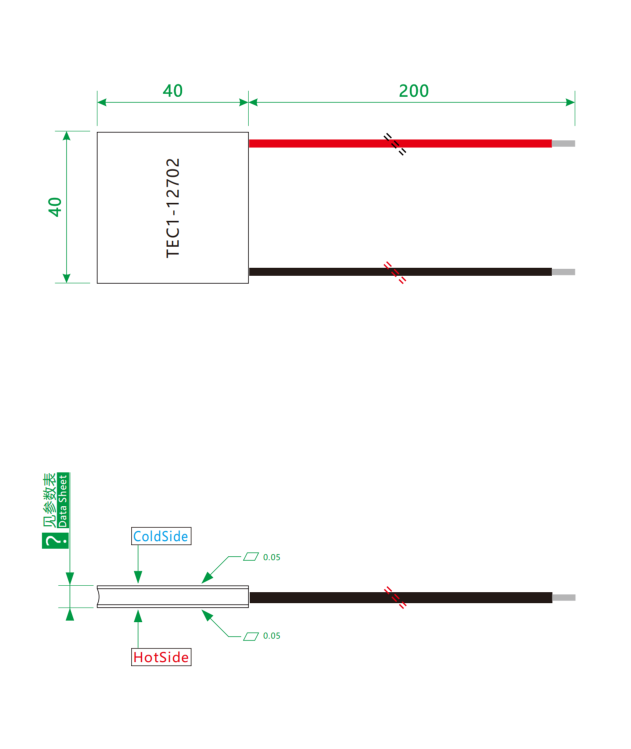

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12702 | K18 | 60 | 5.39 | 15.2 | 2.2 | 33 | 40×40×4.2 |
| K28 | 65 | | | | | 40×40×5.2 |
| K38 | 70 | | | | | 40×40×6.2 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.4mm (sintered process) |
| Lead Wire | Super‑soft silicone wire 22AWG / L=200mm |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 4kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh |
🔷 Performance Curve
![]()
🔷 Product Overview
Our thermoelectric generator module (TEG power generator module) is a solid‑state semiconductor energy‑harvesting component, which converts waste heat, industrial high‑temperature heat, stove heat or solar thermal energy directly into usable electricity. This large‑size 100x100 thermoelectric generator element delivers high‑power output, ideal for off‑grid power supply and waste‑heat recovery projects. We are a professional thermoelectric generator module supplier offering standard and custom thermoelectric generator cooling plate solutions for OEM and wholesale clients.
🔷Product Applications
- Thermoelectric generator for waste heat recovery
- TEG module for industrial heat recovery
- Thermoelectric power generator for stove
- Thermoelectric generator for solar heat power generation
- Off‑grid sensor power supply, remote monitoring equipment power supply
🔷 Product Structure
![]()
🔷Operation Principle
The thermoelectric generator module works based on the Seebeck effect. When a stable temperature difference exists between the hot side and cold side of the TEG power generator module, heat energy will be converted directly into DC electrical power. The bigger the temperature gap, the higher output voltage and power the thermoelectric power generator can produce.
🔷FAQ
Q1: What is a thermoelectric generator module used for?
A: The TEG power generator module is mainly used for waste‑heat recovery, stove power generation, solar thermal power generation and self‑powered remote sensors.
Q2: Can you supply custom thermoelectric generator cooling plate for the TEG module?
A: Yes, we are a thermoelectric generator module supplier, OEM & custom services are supported. We can provide matched cooling plates according to your drawing.
Q3: Do you accept wholesale order of high power thermoelectric power generator?
A: Sure, bulk wholesale TEG power generator is welcomed, competitive factory‑direct price.
