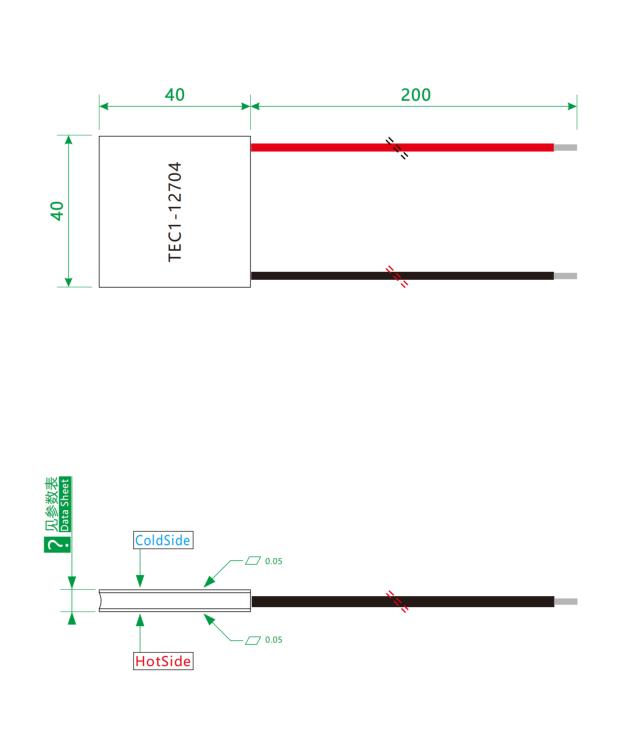

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12704 | K10 | 60 | 2.96 | 15.2 | 4 | 61 | 40×40×3.4 |
| K18 | 65 | | | | | 40×40×4.2 |
| K26 | 70 | | | | | 40×40×5.0 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen‑free Copper 0.4mm (sintered process) |
| Lead Wire | Super‑soft silicone wire 22AWG / L=200mm |
| Terminal | Standard product without terminal (can be installed upon request) |
| Assembly Pressure | 4kg (0.25kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature <120°C, Humidity <60% Rh |

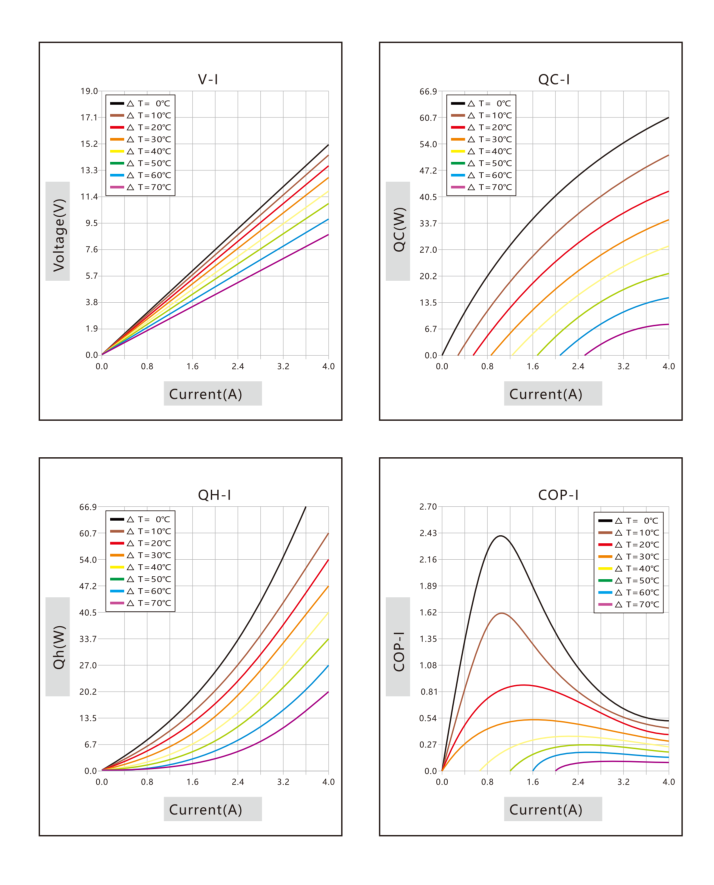

🔷 Performance Curve
![]()

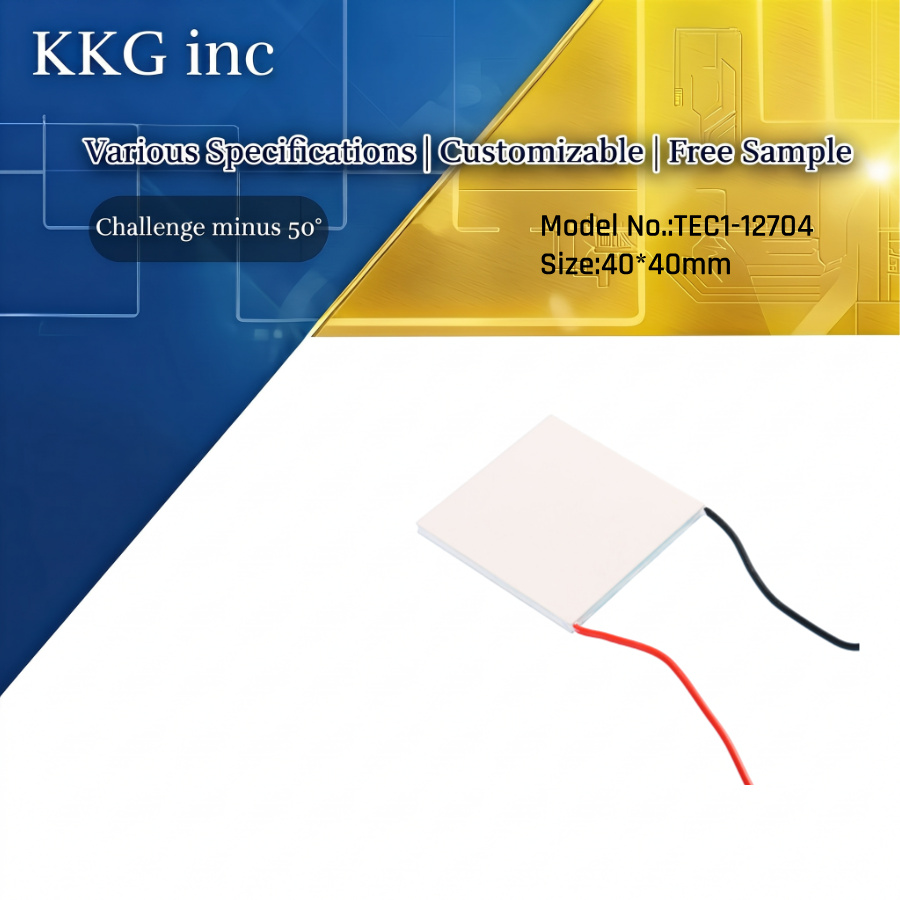

🔷 Product Overview
The TEC1‑12704 40*40mm thermoelectric cooler is a high‑efficiency thermoelectric cooling element, also known as peltier cooler module. This solid‑state thermoelectric cooling element module transfers heat from one ceramic side to another without refrigerant, no vibration and no noise.
Our TEC1‑12704 thermoelectric cooling element is manufactured under strict quality control. With stable cooling performance, it is a cost‑effective peltier solution for medium‑capacity temperature‑control projects. We are a professional thermoelectric cooling element supplier, we can provide wholesale thermoelectric cooling element and OEM service for global buyers.
🔷 Product Features
- High‑power thermoelectric cooling element with stable cooling output
- High efficiency thermoelectric cooling element, fast cooling‑up speed
- Compact 40×40mm ceramic substrate, easy installation
- Solid‑state construction, no moving parts, maintenance‑free
- Bidirectional temperature control: cooling & heating by reversing current
- Support OEM thermoelectric cooling element and custom lead length
🔷Product Applications
This thermoelectric cooling element is widely used for many temperature‑control projects:
✅ Thermoelectric cooling for industrial chiller
✅ Thermoelectric cooling element for laser cooling
✅ Thermoelectric cooling element for semiconductor temperature control
✅ Thermoelectric cooling element for medical refrigeration
✅ Small‑size refrigerator, beverage cooler, incubator
✅ Laboratory constant‑temperature equipment, beauty cooling device
🔷 Product Structure
![]()
🔷Operation Principle
Based on the Peltier effect, when DC current flows through the thermoelectric cooling element module, one side of the peltier cooler absorbs heat and turns cold, while the opposite side releases heat and turns hot. You can switch cooling and heating function by reversing the DC current direction. Unlike compressor refrigeration, this thermoelectric cooling element realizes heat transfer without any refrigerant.
🔷FAQ
Q1: What is the working voltage for TEC1‑12704 thermoelectric cooling element?
A: Its rated working voltage is 12V, the maximum voltage can not exceed 15.4V. Excessive voltage will cause permanent burn‑out of the peltier module.
Q2: Can you provide custom thermoelectric cooling element cooling plate?
A: Yes, we support custom thermoelectric cooling element cooling plate, custom wire length and surface treatment solution. OEM service is available.
Q3: Are you thermoelectric cooling element supplier that supports bulk order?
A: Yes. We supply wholesale thermoelectric cooling element for distributors, system integrators and OEM manufacturers. Large quantity with competitive price.
Q4: Can this 40*40mm thermoelectric cooling element be used for laser cooling?
A: Sure, this high‑efficiency peltier cooler is a very common option for small laser module temperature control.
