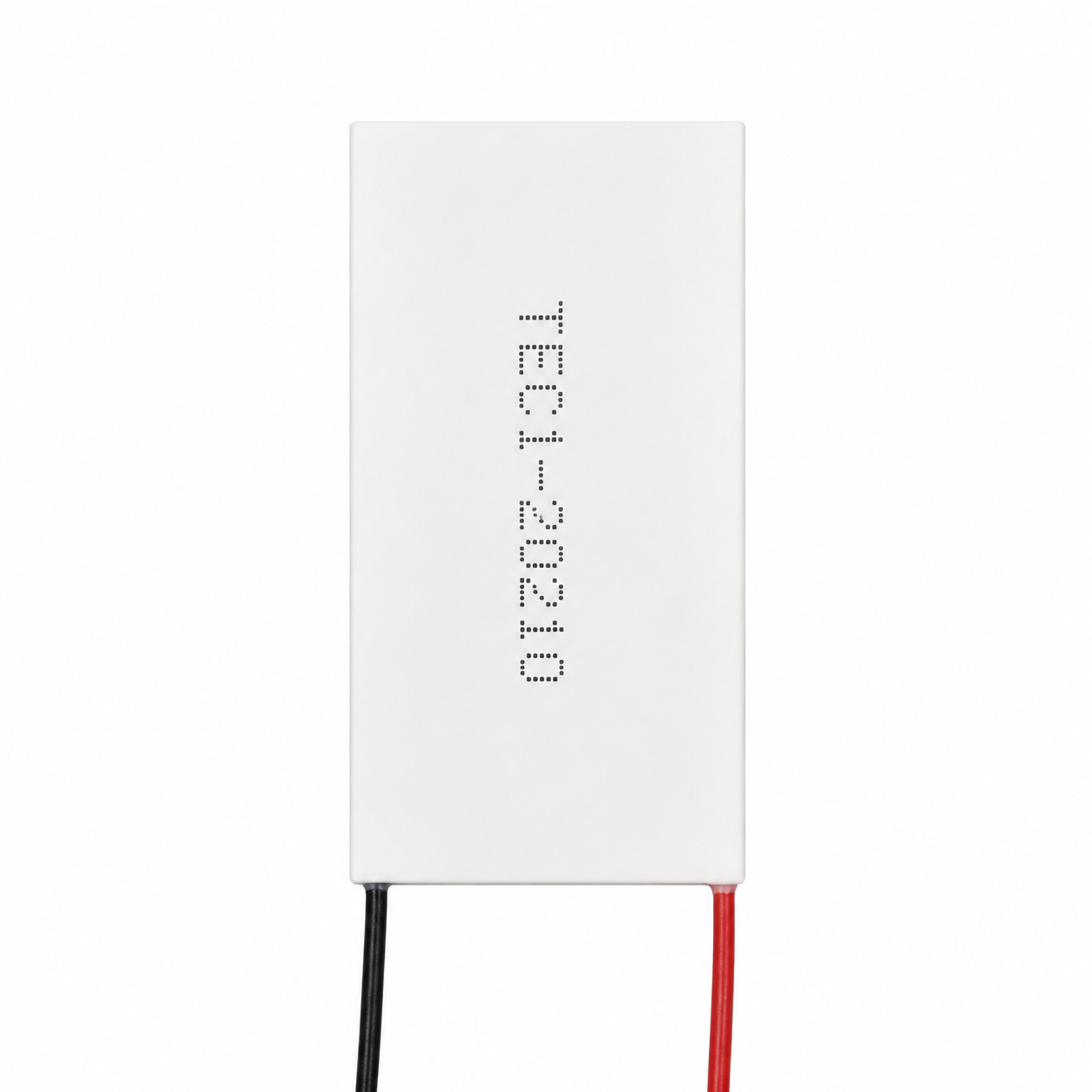

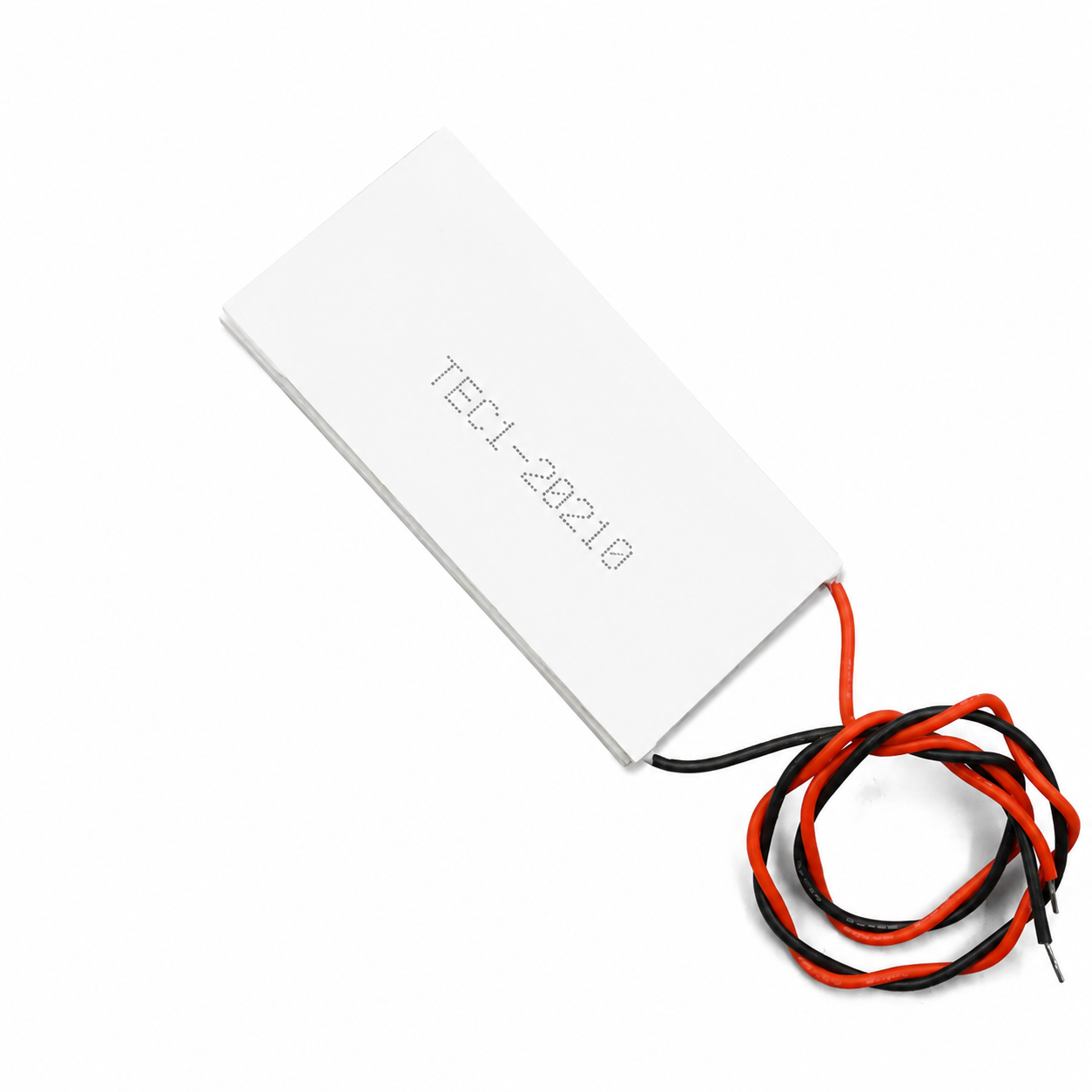

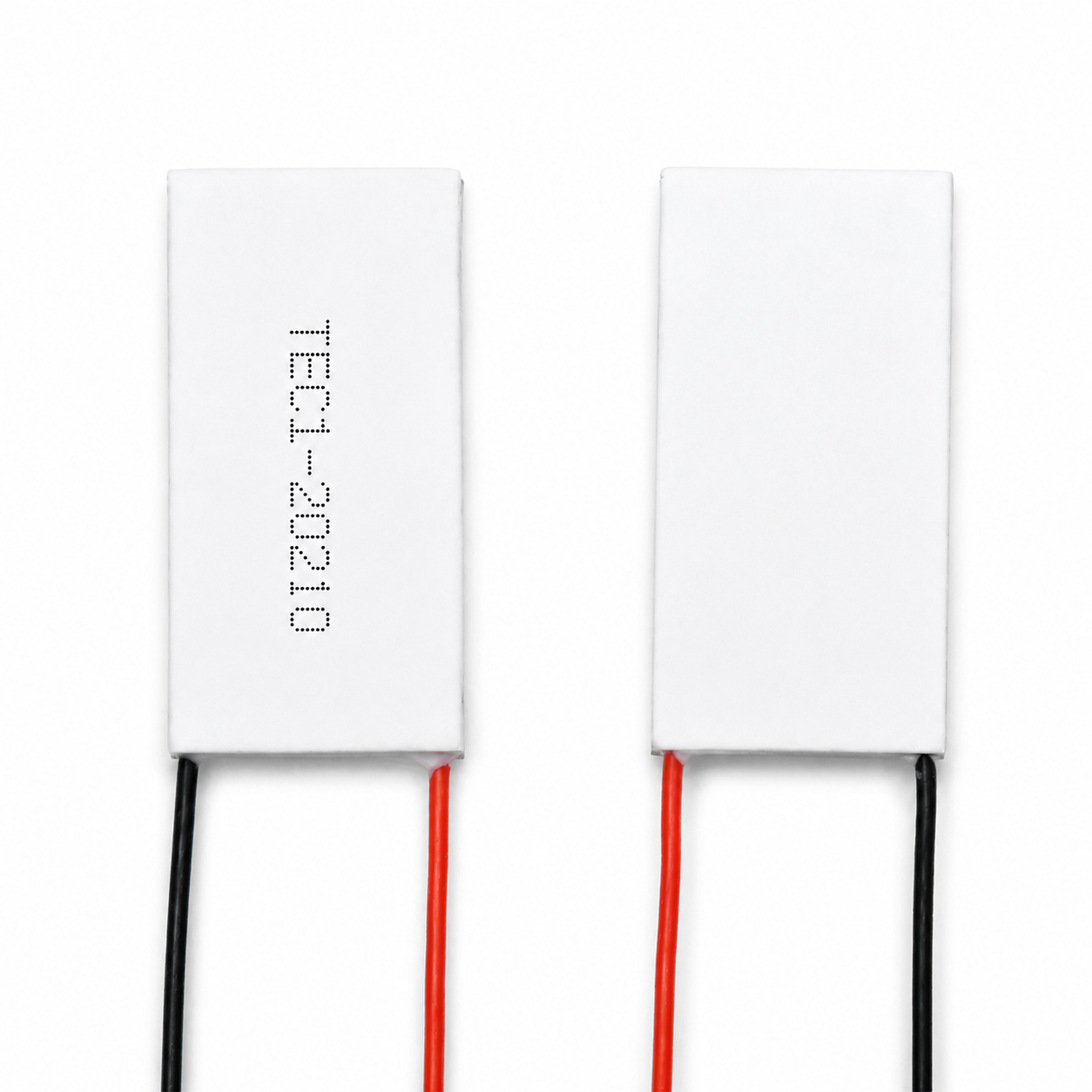

The TEC1-20210 is a flagship industrial semiconductor cooling module designed for extremely large surface areas and extreme, top-tier power density cooling. Measuring 50 × 100 mm, it is currently one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment requiring extreme power density, ultra-high-power laser modules, high-performance medical devices, and other applications demanding extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

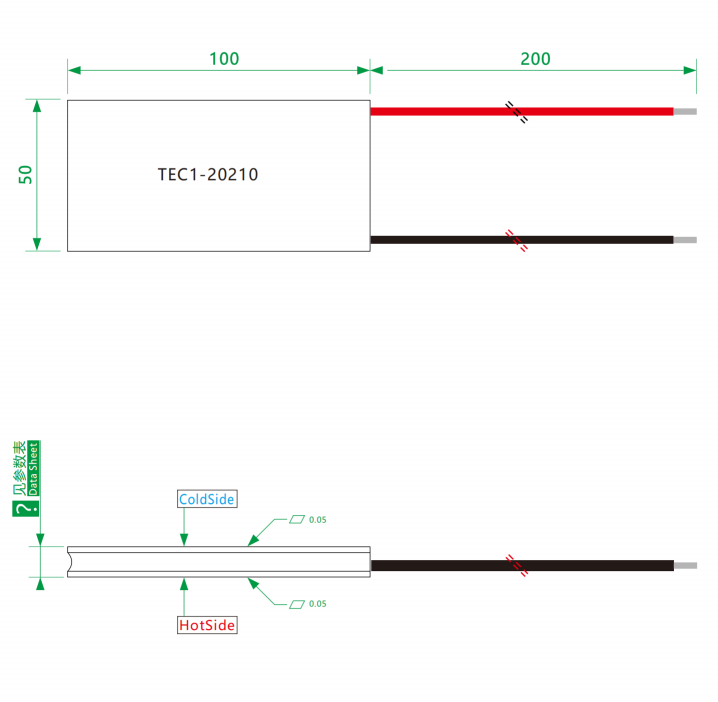

🔷TEG Module Product Drawing
🔷Solid State Cooler Basic Performance Spec
| Type Mode | Chip Model | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-20210 | K10 | 60 | 1.87 | 24.0 | 10.0 | 240 | 50×100×3.4 |
| TEC1-20210 | K18 | 65 | 1.87 | 24.0 | 10.0 | 240 | 50×100×4.2 |
| TEC1-20210 | K26 | 70 | 1.87 | 24.0 | 10.0 | 240 | 50×100×5.0 |
🔷Thermoelectric Power Generator Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate Material | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Silicone wire, 18 AWG, L = 300 mm |
| Terminal Specification | Not included as standard; available upon request |
| Assembly Pressure | 12.5 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealant Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |
🔷Element Peltier Performance Curve
🔷Peltier Cooling Element Product Overview
The TEC1-20210 is a flagship industrial semiconductor cooling module designed for extremely large surface areas and extreme, top-tier power density cooling. Measuring 50 × 100 mm, it is currently one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment requiring extreme power density, ultra-high-power laser modules, high-performance medical devices, and other applications demanding extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful flagship model in the series.
This product is available in three chip configurations—K10, K18, and K26—with thicknesses of 3.4 mm, 4.2 mm, and 5.0 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It features a maximum voltage of 24.0 V, a maximum current of 10.0 A, a maximum cooling power of 240 W, and an internal resistance of just 1.87 Ω.
Its extra-large 50 × 100 mm rectangular package allows it to be embedded inside large industrial equipment and and ultra-high-power laser modules—while ensuring a maximum cooling temperature difference of 70°C and cooling for extreme, top-tier power levels of 240W. The 50mm width and 100mm length provide an extremely generous heat exchange area, facilitating the uniform transfer of cooling capacity to the surface of extremely large-area loads. This product features a 24V high-voltage, 10.0A current drive design, making it highly compatible with common industrial power supplies (24V), telecommunications equipment power supplies, and other platforms. With an ultra-low internal resistance of 1.87Ω—the lowest in this series—Joule heating losses (I²R ≈ 187W) at a current of 10.0A are effectively controlled, allowing more electrical energy to be converted into effective cooling capacity and delivering outstanding energy efficiency. The substrate utilizes a sintering process combining 96% alumina ceramic (0.76 mm) and 0.4 mm oxygen-free copper. The relatively thick copper layer ensures uniform heat dissipation across the extra-large 100 mm × 50 mm surface area, preventing localized hot spots. It comes standard with 18 AWG silicone-coated leads (300 mm in length), capable of safely carrying the high current of 10.0 A. The 704 silicone rubber perimeter seal provides excellent moisture, dust, and shock resistance. The all-solid-state design ensures precise operation with zero noise and zero vibration. The recommended mounting pressure is up to 12.5 kg (0.25 kg/cm²), ensuring a tight fit between the extra-large cooling plate, the heat sink, and the surface being cooled, effectively reducing contact thermal resistance and withstanding vibrations and impacts in industrial environments.
This product is typically used in applications such as temperature control for large industrial laser modules operating at extreme, top-tier power levels; heat dissipation for large industrial equipment; high-performance medical devices; and high-power communication base stations. It is the premier flagship choice for cooling requirements involving extremely large areas and extreme, top-tier power density.
🔷TEC Cooling System Product Selection
| 模型 | 热电偶对 | Umax（伏特） | Imax（安培） | DTmax（°C） | 瓦特 | 电阻器（Ω） | 长度（mm） | 宽度（mm） |
| TEC-03102-30x6x3.25 | 31 | 3.8 | 2.2 | 67 | 4.6 | 1.37 | 30 | 6 |
| TEC-03102-30x6x3.3 | 31 | 3.8 | 2.7 | 66 | 5.7 | 1.11 | 30 | 6 |
| TEC-03104-30x6x3.3 | 31 | 3.8 | 4.3 | 66 | 8.9 | 0.71 | 30 | 6 |
| TEC-06102-30x5.7x3.1 | 61 | 7.4 | 2 | 67 | 8.1 | 3 | 30 | 5.7 |
| TEC-06503-30x7x2.55 | 65 | 7.9 | 3.4 | 67 | 15 | 1.85 | 30 | 7 |
| TEC-06302-38x7.6x3.04 | 63 | 7.6 | 2.4 | 67 | 10 | 2.59 | 38 | 7.6 |
| TEC-03102-30x8x3.8 | 31 | 3.8 | 2.9 | 67 | 6.1 | 1.03 | 30 | 8 |
| TEC-07102-30x8x2.9 | 71 | 8.6 | 2.7 | 67 | 12.7 | 2.6 | 30 | 8 |
| TEC-06502-8x40x3 | 65 | 7.9 | 2.4 | 67 | 10.7 | 2.59 | 8 | 40 |
| TEC-05304-30x9.8x3.1 | 53 | 6.4 | 4.2 | 67 | 15.1 | 1.22 | 30 | 9.8 |
| TEC-01704-10x10x3.1 | 17 | 2.1 | 4.1 | 68 | 4.7 | 0.4 | 10 | 10 |
| TEC-03101-10x10x3 | 31 | 3.8 | 1.4 | 68 | 2.9 | 2.2 | 10 | 10 |
| TEC-06303-60x10x3.7 | 63 | 7.6 | 3.4 | 67 | 14.4 | 1.81 | 60 | 10 |
| TEC-04901-12x12x2.9 | 49 | 5.9 | 1.5 | 67 | 5 | 3.15 | 12 | 12 |
| TEC-03102-15x15x4 | 31 | 3.8 | 2.5 | 66 | 5.3 | 1.19 | 15 | 15 |
| TEC-03102-15x15x3.8 | 31 | 3.8 | 2.8 | 66 | 5.9 | 1.07 | 15 | 15 |
| TEC-04904-15x15x3.1 | 49 | 5.9 | 4.2 | 67 | 13.9 | 1.13 | 15 | 15 |
| TEC-04804-15x15x3.32 | 48 | 5.8 | 4.3 | 66 | 13.7 | 1.1 | 15 | 15 |
| TEC-04902-18x18x4 | 49 | 5.9 | 2.4 | 67 | 7.8 | 2.02 | 18 | 18 |
| TEC-04902-20x20x4 | 49 | 5.9 | 2.1 | 66 | 6.8 | 2.32 | 20 | 20 |
| TEC-04903-20x20x3.6 | 49 | 5.9 | 3.1 | 66 | 10.1 | 1.55 | 20 | 20 |
| TEC-07102-20x20x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 20 | 20 |
| TEC-07103-20x20x3.5 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 20 | 20 |
| TEC-06311-20x40x3.05 | 63 | 7.6 | 11.2 | 67 | 47.3 | 0.55 | 20 | 40 |
| TEC-06311-40x20x3.05 | 63 | 7.6 | 11.2 | 67 | 47.3 | 0.55 | 40 | 20 |
| TEC-07102-23x23x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 23 | 23 |
| TEC-07103-23x23x3.5 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 23 | 23 |
| TEC-04903-25x25x4.2 | 49 | 5.9 | 3.9 | 67 | 12.9 | 1.22 | 25 | 25 |
| TEC-07102-30x30x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 30 | 30 |
| TEC-07103-30x30x3.7 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 30 | 30 |
| TEC-07103-30x30x4 | 71 | 8.6 | 3.6 | 66 | 17.4 | 1.9 | 30 | 30 |
| TEC-12701-30x30x4.55 | 127 | 15.4 | 1.3 | 67 | 11.4 | 9.25 | 30 | 30 |
| TEC-12702-30x30x4.2 | 127 | 15.4 | 2 | 67 | 17.4 | 6.08 | 30 | 30 |
| TEC-12702-30x30x4.07 | 127 | 15.4 | 2.2 | 67 | 18.9 | 5.6 | 30 | 30 |
| TEC-12703-30x30x3.7 | 127 | 15.4 | 3.4 | 66 | 28.9 | 3.65 | 30 | 30 |
| TEC-12704-30x30x3.4 | 127 | 15.4 | 4.2 | 66 | 36.2 | 2.92 | 30 | 30 |
| TEC-12702-40x40x4.2 | 127 | 15.4 | 2.8 | 66 | 24.1 | 4.38 | 40 | 40 |
| TEC-12703-40x40x3.9 | 127 | 15.4 | 3.4 | 66 | 28.9 | 3.65 | 40 | 40 |
| TEC-12704-40x40x3.4 | 127 | 15.4 | 4.2 | 66 | 36.2 | 2.92 | 40 | 40 |
| TEC-12704-40x40x4 | 127 | 15.4 | 4.8 | 66 | 41.1 | 2.57 | 40 | 40 |
| TEC-12705-40x40x3.65 | 127 | 15.4 | 5.6 | 66 | 48 | 2.2 | 40 | 40 |
| TEC-12706-40x40x3.95 | 127 | 15.4 | 6.6 | 67 | 55.9 | 1.89 | 40 | 40 |
| TEC-12707-40x40x4 | 127 | 15.4 | 7.4 | 67 | 62.9 | 1.68 | 40 | 40 |
| TEC-12708-40x40x3.6 | 127 | 15.4 | 8.8 | 67 | 74.9 | 1.41 | 40 | 40 |
| TEC-12716-40x40x3.2 | 127 | 15.4 | 16.3 | 66 | 139 | 0.76 | 40 | 40 |
| TEC-06303-40x20x3.6 | 63 | 7.6 | 3 | 3.4 | 22.8 | 1.98 | 40 | 20 |
🔷Thermoelectric Cooling Device Operation Principle
The TEC1-20210 utilizes the Peltier effect to achieve thermoelectric cooling. At its core, multiple pairs of P-type (Bi₂Te₃-Sb₂Te₃ hole-type) and N-type (Bi₂Te₃-Bi₂Se₃ electron-type) semiconductor grains are connected in series via metal bus bars to form a thermoelectric stack, which is sandwiched between two layers of highly thermally conductive ceramic substrates. With 202 pairs of crystals, this is an ultra-large-scale thermoelectric stack design. It features a large number of thermocouple pairs, capable of generating a significant temperature difference and cooling capacity at moderate current levels.
When a forward DC voltage (up to 24.0 V) is applied, a high current of 10.0 A drives carriers to exchange energy at the PN junction interface—the cold end absorbs phonon energy and cools, while the hot end releases energy and heats up. Heat is continuously “pumped” from the cold end to the hot end.
The ultra-low internal resistance of 1.87 Ω is a core advantage of this product; it is the model with the lowest internal resistance in this series, effectively controlling Joule heating loss (I²R ≈ 187 W) at a high current of 10.0 A. The 0.4 mm thick copper layer helps evenly dissipate the high heat load of 240 W across the extra-large 100 mm × 50 mm surface area. This product achieves a maximum temperature difference of 70 °C (K26 model) when the hot end reaches 40 °C, while the cold end can drop to as low as approximately -30 °C.
The TEC1-20220 is the ultimate flagship industrial semiconductor heat sink designed for ultra-large-area, top-tier extreme power density cooling. Measuring 50 × 100 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful, ultimate flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20215 is the ultimate flagship industrial semiconductor heat sink designed for ultra-large-area, top-tier extreme power density cooling. Measuring 50 × 100 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful, ultimate flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20212 is the ultimate flagship industrial semiconductor heat sink designed for ultra-large-area, top-tier extreme power density cooling. Measuring 50 × 100 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful, ultimate flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20208 is a flagship industrial semiconductor cooling module designed for extremely large surface areas and extreme, top-tier power density cooling. Measuring 50 × 100 mm, it is currently one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment requiring extreme power density, ultra-high-power laser modules, high-performance medical devices, and other applications demanding extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20206 is a semiconductor cooling plate designed for ultra-large-area, ultra-high-power industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is currently one of the largest models in this series. Featuring an ultra-large rectangular symmetrical packaging design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring ultra-large-area temperature control and extremely high thermal loads, such as large-scale industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control and capable of handling extremely high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20205 is a semiconductor cooling plate designed for ultra-large-area, ultra-high-power industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is currently one of the largest models in this series. Featuring an ultra-large rectangular symmetrical packaging design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring ultra-large-area temperature control and extremely high thermal loads, such as large-scale industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control and capable of handling extremely high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20204 is a semiconductor cooling plate designed for ultra-large-area, high-power, industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is one of the largest models in the series. Featuring an ultra-large, rectangular, symmetrical package design, it provides an exceptionally large heat exchange area and is optimized for equipment requiring extensive temperature control and high thermal loads, such as large-scale industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring extensive temperature control over a large area and handling high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20203 is a semiconductor cooling module designed for ultra-large-area, high-power, industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is one of the largest models in the series. Featuring an ultra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area and is optimized for large industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control with moderate power requirements. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
