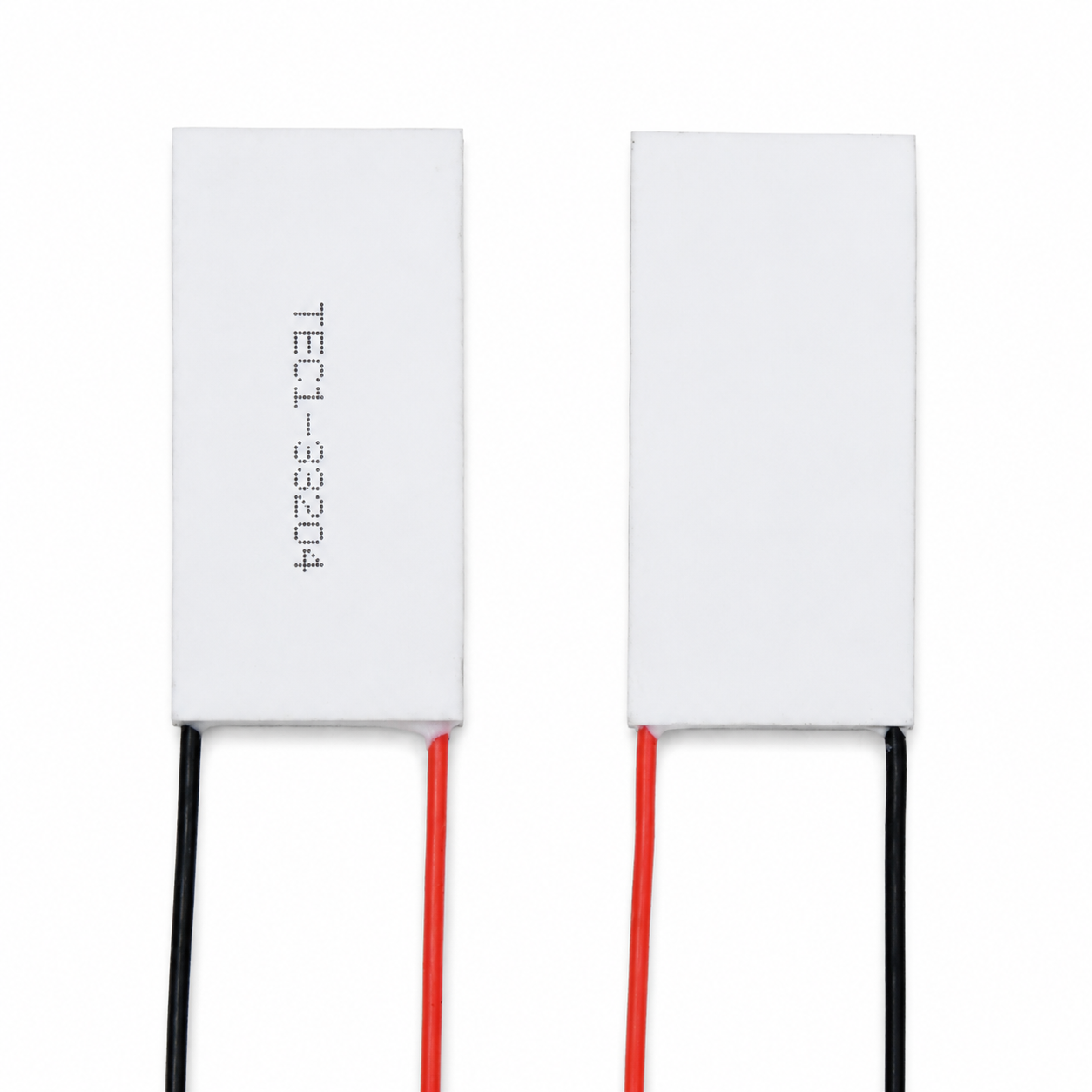

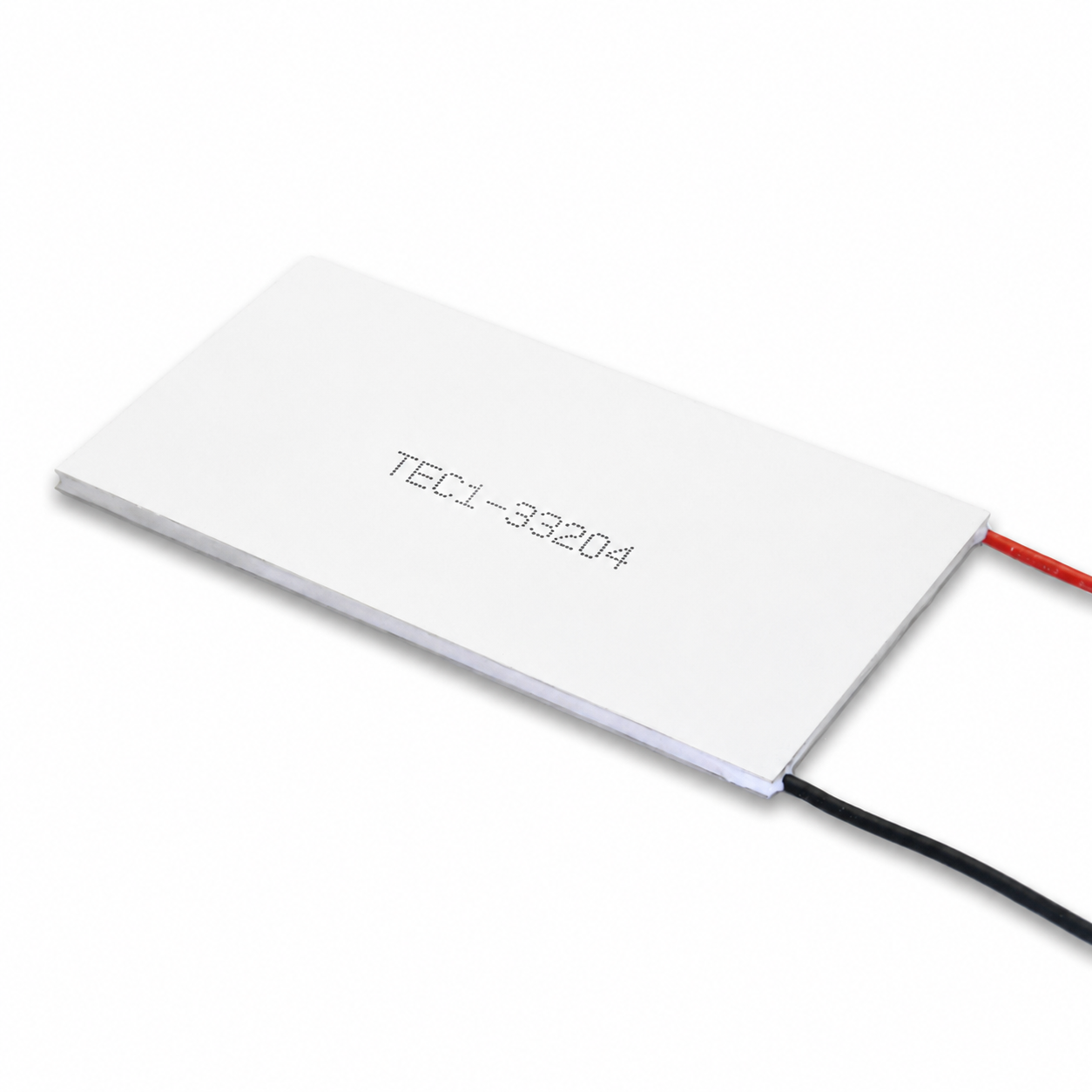

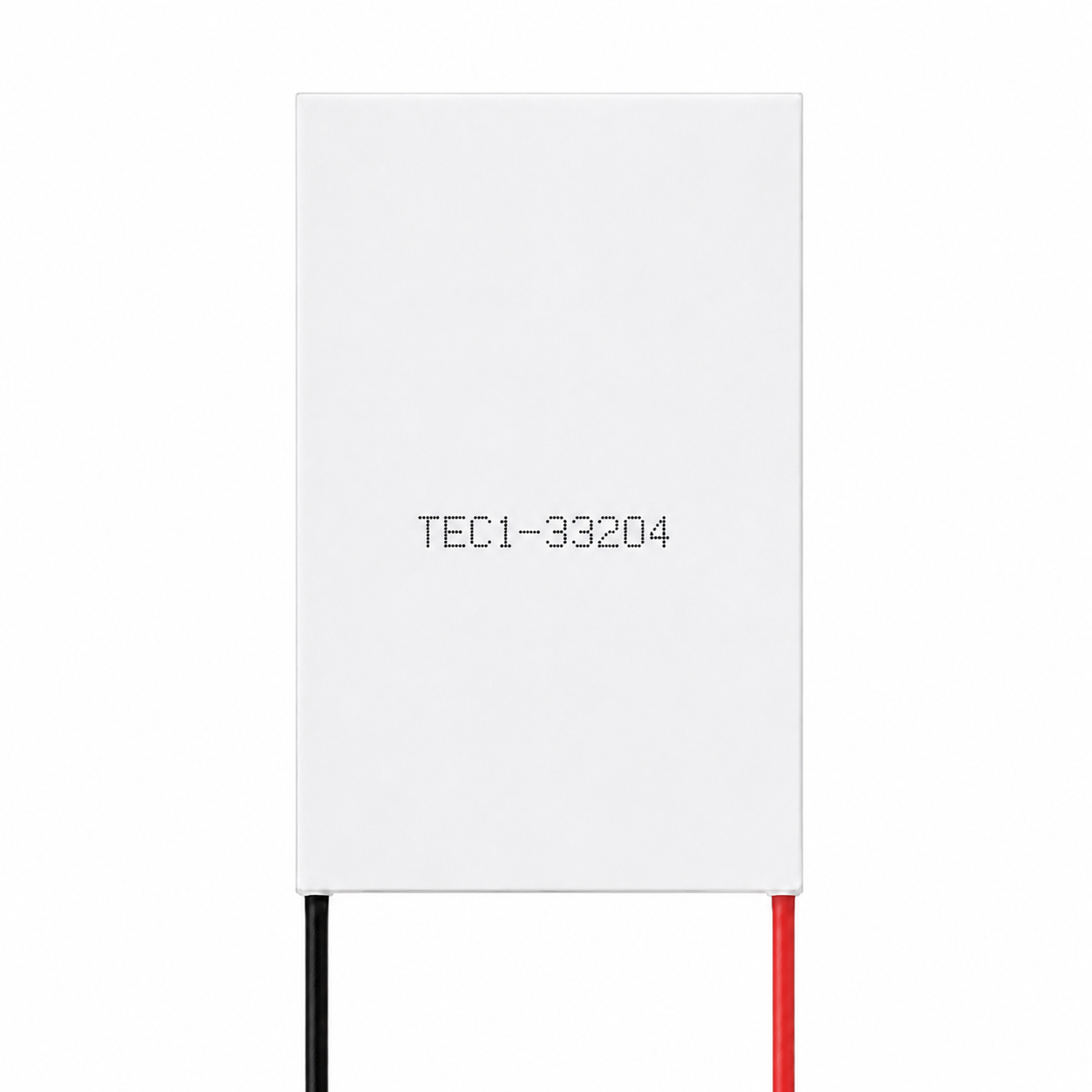

The TEC1-33204 is a flagship industrial semiconductor cooling module designed for ultra-large-area, high-power, and high-voltage precision temperature control. With dimensions of 60 × 120 mm, it is one of the largest models in the series. Featuring an ultra-large rectangular symmetrical package design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring large-area temperature control and high thermal loads, such as high-power industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring extensive thermal control and handling high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

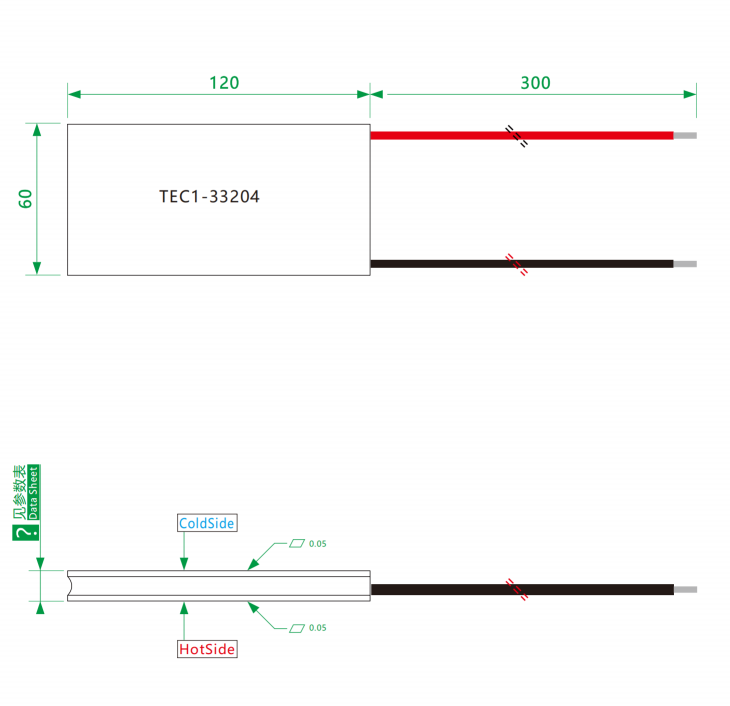

| Type Mode | Chip Model | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-33204 | K20 | 60 | 7.77 | 39.8 | 4.0 | 159 | 60×120×4.4 |
| TEC1-33204 | K30 | 65 | 7.77 | 39.8 | 4.0 | 159 | 60×120×5.4 |
| TEC1-33204 | K40 | 70 | 7.77 | 39.8 | 4.0 | 159 | 60×120×6.4 |
| Parameter | Specification |
|---|---|
| Substrate Material | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Silicone wire, 20 AWG, L = 300 mm |
| Terminal Specification | Not included as standard; available upon request |
| Assembly Pressure | 18.0 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealant Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |
The TEC1-33204 is a flagship industrial semiconductor cooling module designed for ultra-large-area, high-power, and high-voltage precision temperature control. With dimensions of 60 × 120 mm, it is one of the largest models in the series. Featuring an ultra-large rectangular symmetrical package design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring large-area temperature control and high thermal loads, such as high-power industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring extensive thermal control and handling high thermal loads.
This product is available in three crystal configurations—K20, K30, and K40—with thicknesses of 4.4 mm, 5.4 mm, and 6.4 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It features a maximum voltage of 39.8 V, a maximum current of 4.0 A, a maximum cooling power of 159 W, and an internal resistance of 7.77 Ω.
The extra-large 60×120mm rectangular package allows it to be embedded inside extra-large industrial equipment, high-power laser modules, and similar applications—while ensuring a maximum cooling temperature difference of 70°C and high-power cooling of 159W, the 60mm width and 120mm length provide an extremely generous heat exchange area, helping to evenly distribute cooling capacity across the surface of extra-large loads. This product features a drive design rated for an ultra-high voltage of 39.8 V and a current of 4.0 A, making it highly compatible with common industrial power supplies (40 V) and telecommunications equipment power platforms, eliminating the need for complex power conversion. The high internal resistance of 7.77 Ω ensures precise current control, enabling the drive circuit to achieve high-precision constant-current regulation and thereby deliver stable temperature control. The substrate is manufactured using a sintering process combining 96% alumina ceramic (0.76 mm) and 0.4 mm oxygen-free copper. The relatively thick copper layer ensures uniform heat diffusion across the extra-large 120 mm × 60 mm surface area, preventing localized hot spots. It comes standard with 20 AWG silicone rubber leads (300 mm in length), capable of safely carrying a 4.0 A current. The 704 silicone rubber perimeter seal provides excellent moisture, dust, and shock resistance. The all-solid-state design ensures precise operation with zero noise and zero vibration. The recommended mounting pressure is up to 18.0 kg (0.25 kg/cm²), ensuring that the extra-large cooling plate is tightly bonded to the heat sink and the surface being cooled, effectively reducing contact thermal resistance and withstanding vibrations and impacts in industrial environments.
This product is typically used in applications such as temperature control for high-power, extra-large industrial laser modules; medical imaging equipment; temperature stabilization for industrial analytical instruments; heat dissipation for telecommunications base station equipment; industrial laser processing equipment; and large-scale medical diagnostic equipment. It is the ideal choice for precision temperature control requirements involving extra-large, high-voltage, and high-power applications in spacious environments.
| 模型 | 热电偶对 | Umax（伏特） | Imax（安培） | DTmax（°C） | 瓦特 | 电阻器（Ω） | 长度（mm） | 宽度（mm） |
|---|---|---|---|---|---|---|---|---|
| TEC-03102-30x6x3.25 | 31 | 3.8 | 2.2 | 67 | 4.6 | 1.37 | 30 | 6 |
| TEC-03102-30x6x3.3 | 31 | 3.8 | 2.7 | 66 | 5.7 | 1.11 | 30 | 6 |
| TEC-03104-30x6x3.3 | 31 | 3.8 | 4.3 | 66 | 8.9 | 0.71 | 30 | 6 |
| TEC-06102-30x5.7x3.1 | 61 | 7.4 | 2 | 67 | 8.1 | 3 | 30 | 5.7 |
| TEC-06503-30x7x2.55 | 65 | 7.9 | 3.4 | 67 | 15 | 1.85 | 30 | 7 |
| TEC-06302-38x7.6x3.04 | 63 | 7.6 | 2.4 | 67 | 10 | 2.59 | 38 | 7.6 |
| TEC-03102-30x8x3.8 | 31 | 3.8 | 2.9 | 67 | 6.1 | 1.03 | 30 | 8 |
| TEC-07102-30x8x2.9 | 71 | 8.6 | 2.7 | 67 | 12.7 | 2.6 | 30 | 8 |
| TEC-06502-8x40x3 | 65 | 7.9 | 2.4 | 67 | 10.7 | 2.59 | 8 | 40 |
| TEC-05304-30x9.8x3.1 | 53 | 6.4 | 4.2 | 67 | 15.1 | 1.22 | 30 | 9.8 |
| TEC-01704-10x10x3.1 | 17 | 2.1 | 4.1 | 68 | 4.7 | 0.4 | 10 | 10 |
| TEC-03101-10x10x3 | 31 | 3.8 | 1.4 | 68 | 2.9 | 2.2 | 10 | 10 |
| TEC-06303-60x10x3.7 | 63 | 7.6 | 3.4 | 67 | 14.4 | 1.81 | 60 | 10 |
| TEC-04901-12x12x2.9 | 49 | 5.9 | 1.5 | 67 | 5 | 3.15 | 12 | 12 |
| TEC-03102-15x15x4 | 31 | 3.8 | 2.5 | 66 | 5.3 | 1.19 | 15 | 15 |
| TEC-03102-15x15x3.8 | 31 | 3.8 | 2.8 | 66 | 5.9 | 1.07 | 15 | 15 |
| TEC-04904-15x15x3.1 | 49 | 5.9 | 4.2 | 67 | 13.9 | 1.13 | 15 | 15 |
| TEC-04804-15x15x3.32 | 48 | 5.8 | 4.3 | 66 | 13.7 | 1.1 | 15 | 15 |
| TEC-04902-18x18x4 | 49 | 5.9 | 2.4 | 67 | 7.8 | 2.02 | 18 | 18 |
| TEC-04902-20x20x4 | 49 | 5.9 | 2.1 | 66 | 6.8 | 2.32 | 20 | 20 |
| TEC-04903-20x20x3.6 | 49 | 5.9 | 3.1 | 66 | 10.1 | 1.55 | 20 | 20 |
| TEC-07102-20x20x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 20 | 20 |
| TEC-07103-20x20x3.5 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 20 | 20 |
| TEC-06311-20x40x3.05 | 63 | 7.6 | 11.2 | 67 | 47.3 | 0.55 | 20 | 40 |
| TEC-06311-40x20x3.05 | 63 | 7.6 | 11.2 | 67 | 47.3 | 0.55 | 40 | 20 |
| TEC-07102-23x23x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 23 | 23 |
| TEC-07103-23x23x3.5 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 23 | 23 |
| TEC-04903-25x25x4.2 | 49 | 5.9 | 3.9 | 67 | 12.9 | 1.22 | 25 | 25 |
| TEC-07102-30x30x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 30 | 30 |
| TEC-07103-30x30x3.7 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 30 | 30 |
| TEC-07103-30x30x4 | 71 | 8.6 | 3.6 | 66 | 17.4 | 1.9 | 30 | 30 |
| TEC-12701-30x30x4.55 | 127 | 15.4 | 1.3 | 67 | 11.4 | 9.25 | 30 | 30 |
| TEC-12702-30x30x4.2 | 127 | 15.4 | 2 | 67 | 17.4 | 6.08 | 30 | 30 |
| TEC-12702-30x30x4.07 | 127 | 15.4 | 2.2 | 67 | 18.9 | 5.6 | 30 | 30 |
| TEC-12703-30x30x3.7 | 127 | 15.4 | 3.4 | 66 | 28.9 | 3.65 | 30 | 30 |
| TEC-12704-30x30x3.4 | 127 | 15.4 | 4.2 | 66 | 36.2 | 2.92 | 30 | 30 |
| TEC-12702-40x40x4.2 | 127 | 15.4 | 2.8 | 66 | 24.1 | 4.38 | 40 | 40 |
| TEC-12703-40x40x3.9 | 127 | 15.4 | 3.4 | 66 | 28.9 | 3.65 | 40 | 40 |
| TEC-12704-40x40x3.4 | 127 | 15.4 | 4.2 | 66 | 36.2 | 2.92 | 40 | 40 |
| TEC-12704-40x40x4 | 127 | 15.4 | 4.8 | 66 | 41.1 | 2.57 | 40 | 40 |
| TEC-12705-40x40x3.65 | 127 | 15.4 | 5.6 | 66 | 48 | 2.2 | 40 | 40 |
| TEC-12706-40x40x3.95 | 127 | 15.4 | 6.6 | 67 | 55.9 | 1.89 | 40 | 40 |
| TEC-12707-40x40x4 | 127 | 15.4 | 7.4 | 67 | 62.9 | 1.68 | 40 | 40 |
| TEC-12708-40x40x3.6 | 127 | 15.4 | 8.8 | 67 | 74.9 | 1.41 | 40 | 40 |
| TEC-12716-40x40x3.2 | 127 | 15.4 | 16.3 | 66 | 139 | 0.76 | 40 | 40 |
| TEC-06303-40x20x3.6 | 63 | 7.6 | 3 | 3.4 | 22.8 | 1.98 | 40 | 20 |
The TEC1-33215 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, top-tier, extreme power density, high-voltage precision temperature control. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for top-tier, ultra-high-power industrial equipment, high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-33212 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, top-tier, extreme power density, high-voltage precision temperature control. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for top-tier, ultra-high-power industrial equipment, high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control over a large area and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-33210 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, extreme high-power-density, high-voltage precision temperature control. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for top-tier, ultra-high-power industrial equipment, high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control over large areas and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-33208 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, extreme-level power density, and high-voltage precision temperature control. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for top-tier, ultra-high-power industrial equipment, high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control over large areas and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-33206 is a top-of-the-line industrial semiconductor cooling module designed for ultra-large-area, high-power-density, high-voltage precision temperature control. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for ultra-large industrial equipment operating at extreme power levels, high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-33205 is a flagship industrial semiconductor cooling module designed for ultra-large-area, ultra-high-power, and high-voltage precision temperature control. With dimensions of 60 × 120 mm, it is currently one of the largest models in this series. Featuring an ultra-large rectangular symmetrical package design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring ultra-large-area temperature control and extremely high thermal loads, such as ultra-high-power industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control and capable of handling extremely high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-33203 is a flagship industrial semiconductor cooling module designed for ultra-large-area, ultra-high-voltage, low-power precision temperature control. With dimensions of 60 × 120 mm, it is one of the largest models in the series. Featuring an ultra-large rectangular symmetrical package design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring large-area temperature control with limited power consumption, such as ultra-large industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control with limited power budgets. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-19525 is the ultimate flagship industrial semiconductor heat sink designed for ultra-large-area, top-tier extreme power density cooling. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful, ultimate flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
