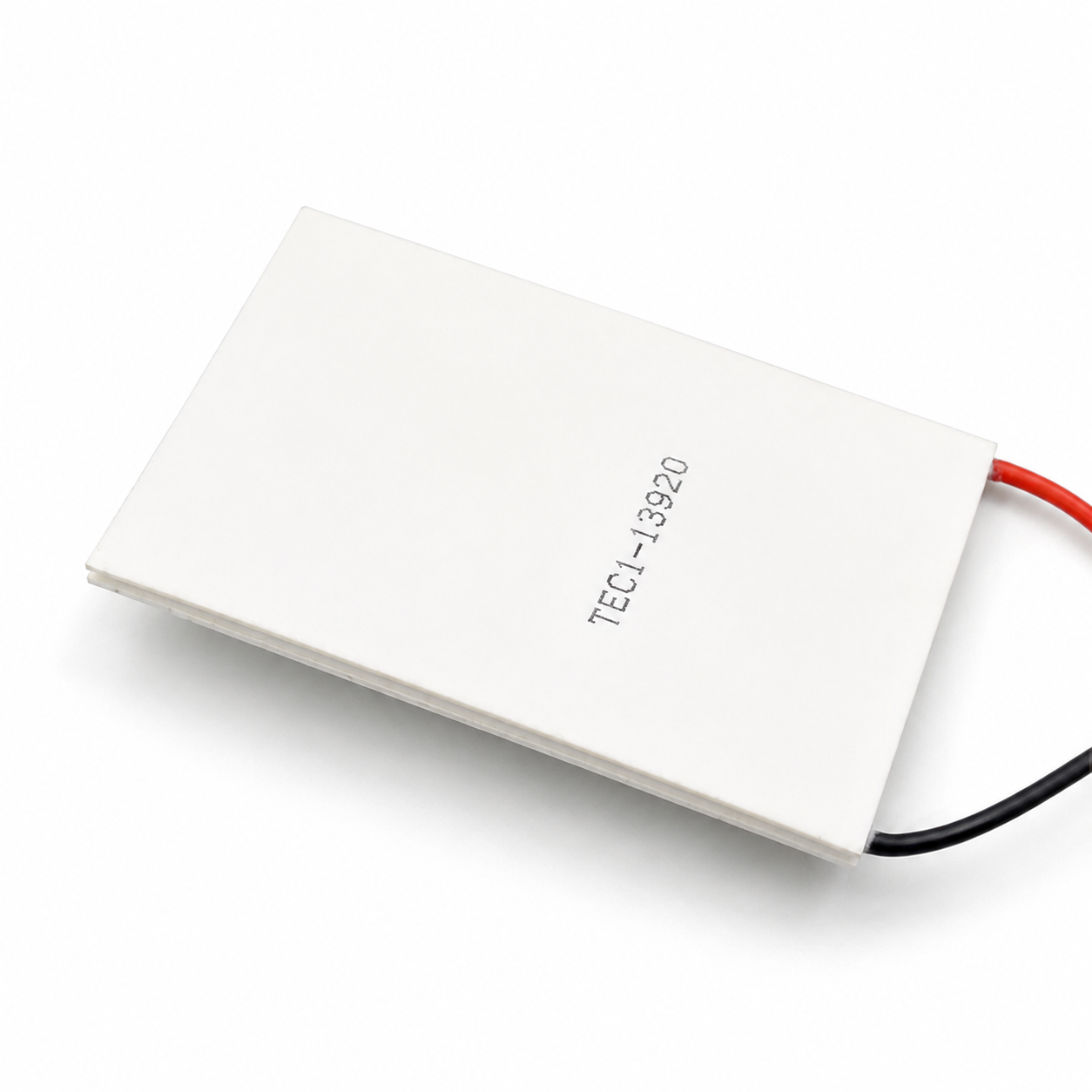

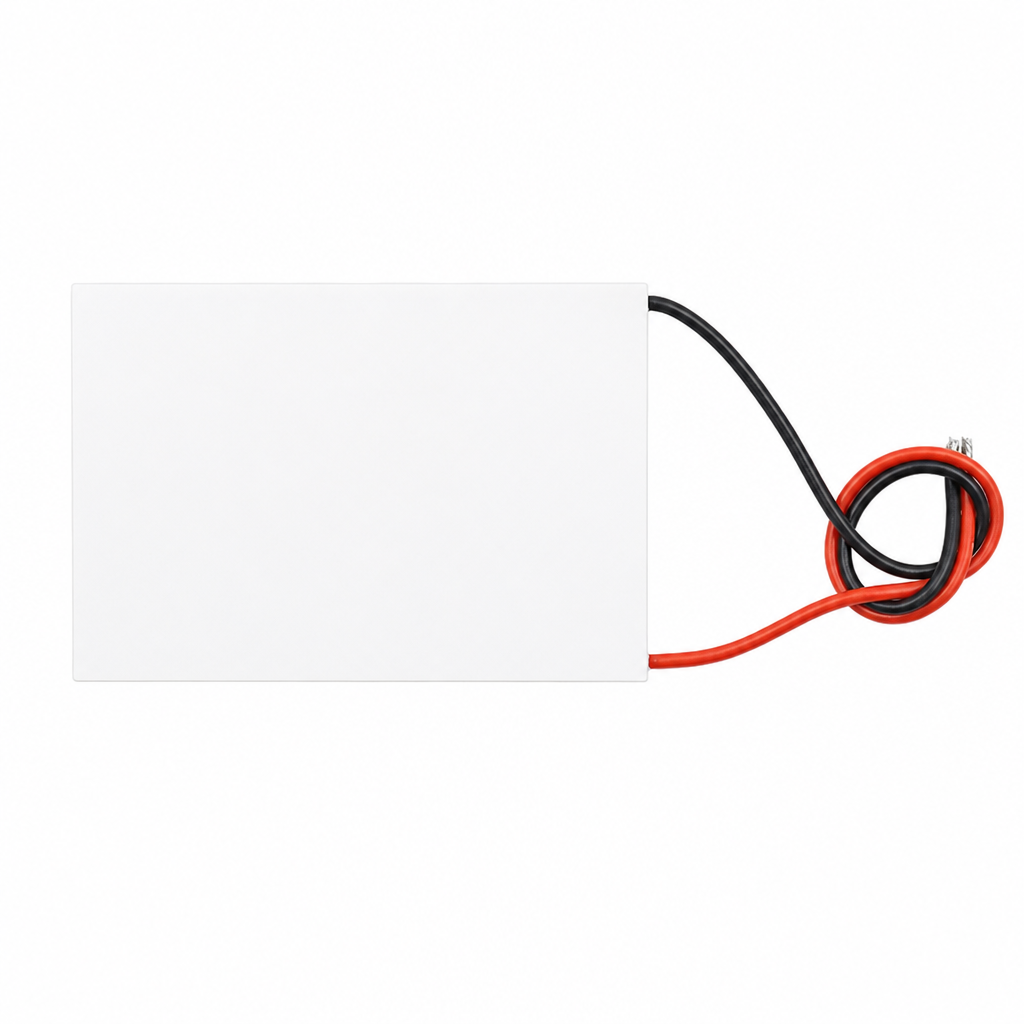

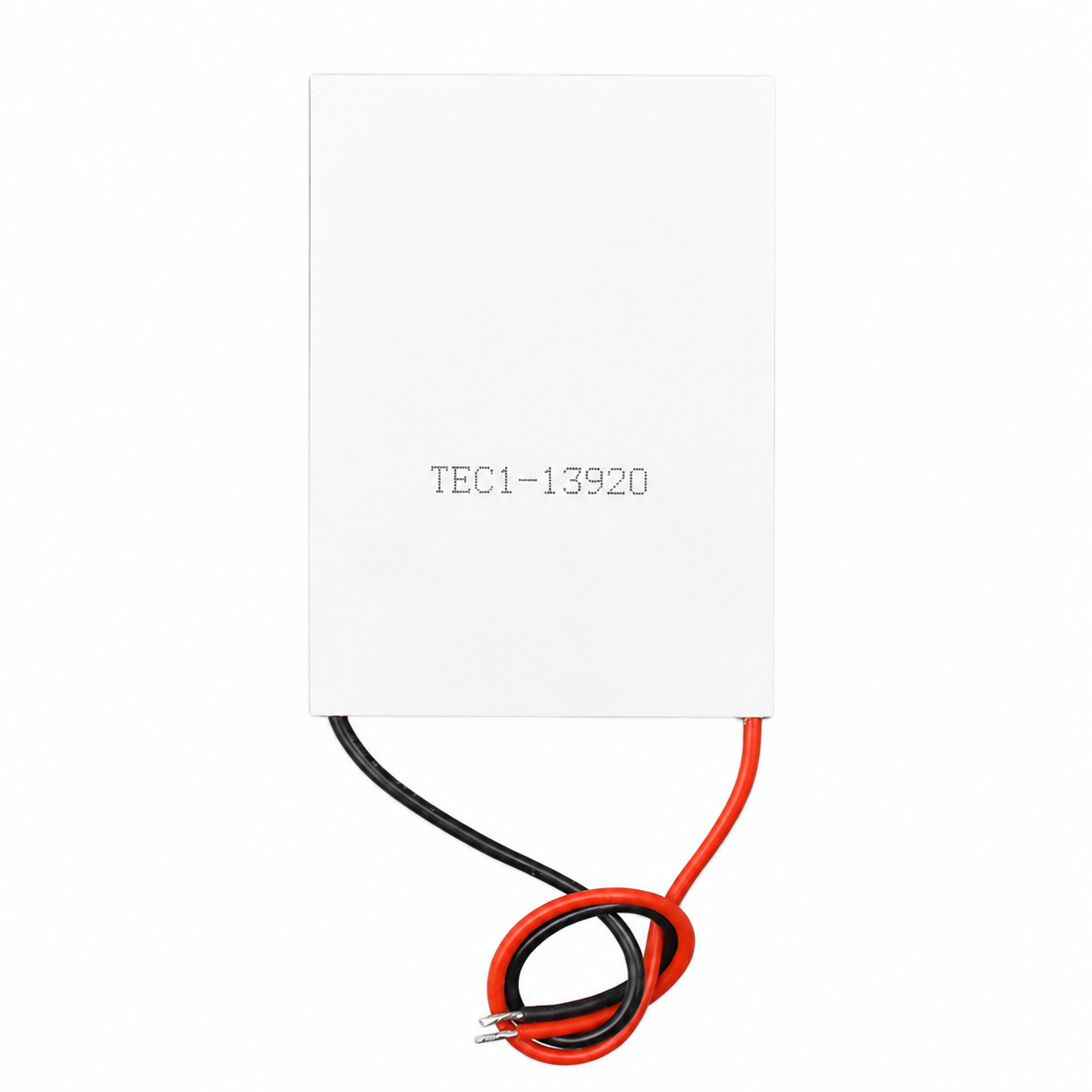

The TEC1-13920 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, low-voltage, top-tier extreme power density precision temperature control. Measuring 80 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
| Type Mode | Chip Model | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-13920 | K14 | 60 | 0.65 | 16.6 | 20.0 | 332 | 80×120×4.3 |
| TEC1-13920 | K26 | 65 | 0.65 | 16.6 | 20.0 | 332 | 80×12×5.5 |
| TEC1-13920 | K38 | 70 | 0.65 | 16.6 | 20.0 | 332 | 80×120×6.70 |
🔷Peltier Module Cooler Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate Material | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Silicone wire, 18 AWG, L = 300 mm |
| Terminal Specification | Not included as standard; available upon request |
| Assembly Pressure | 24.0 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealant Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |
The TEC1-13920 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, low-voltage, top-tier extreme power density precision temperature control. Measuring 80 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control and handling extremely high thermal loads, it is the most powerful flagship model in the series.

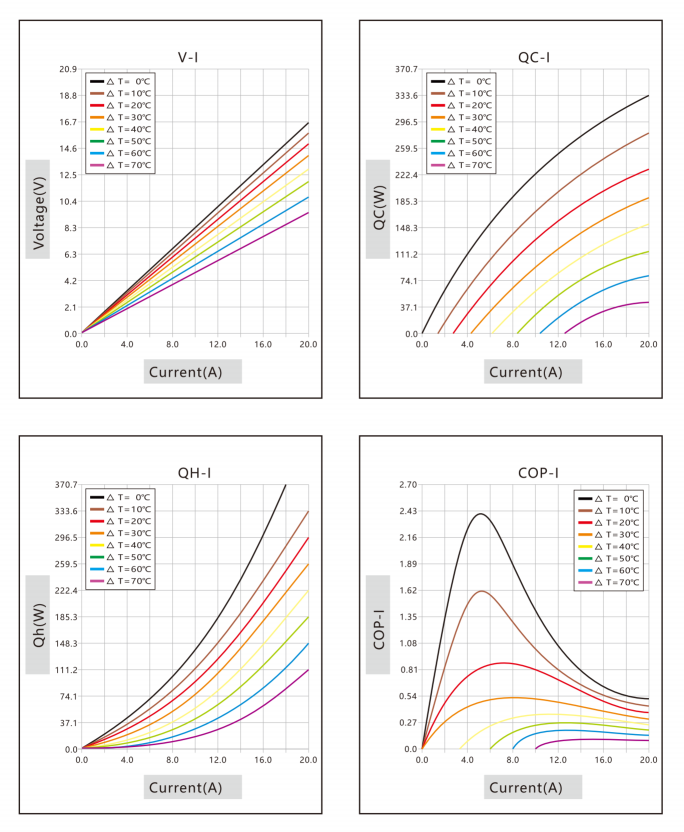

This product is available in three crystal configurations—K14, K26, and K38—with thicknesses of 4.3 mm, 5.5 mm, and 6.7 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It features a maximum voltage of 16.6 V, a maximum current of 20.0 A, a maximum cooling power of 332 W, and an internal resistance of just 0.65 Ω.

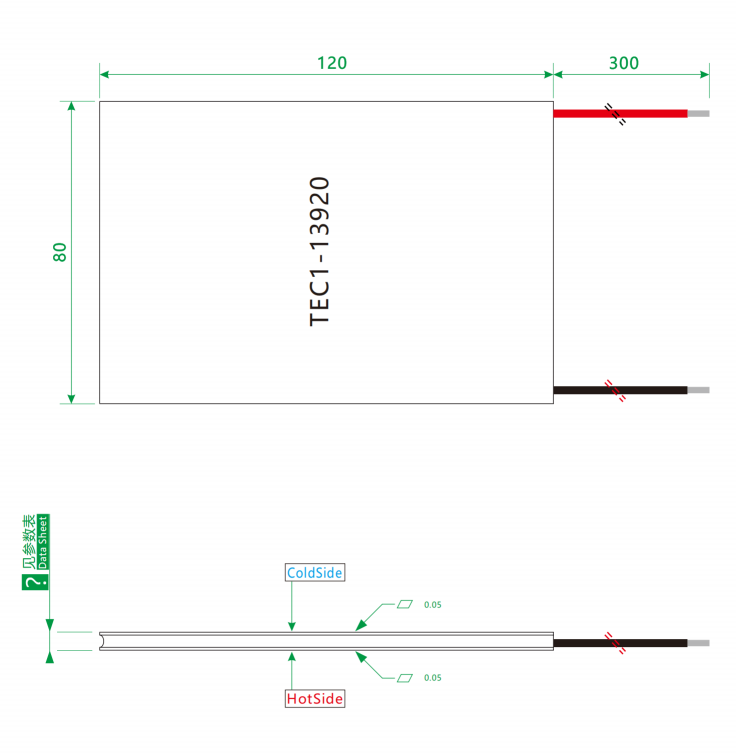

Its extra-large 80 × 120 mm rectangular package allows it to be embedded inside high-end, high-power industrial equipment, and ultra-high-power laser modules—while ensuring a maximum cooling temperature difference of 70°C and extreme power cooling of 332W. The 80mm width and 120mm length provide an extremely generous heat exchange area, facilitating uniform heat transfer to the surface of very large loads. This product features a 16.6V low-voltage, 20.0A drive design, making it compatible with common industrial power supplies (12V/24V requiring conversion) and telecommunications equipment power supply platforms. With an ultra-low internal resistance of 0.65Ω—the lowest in this series—Joule heat loss (I²R ≈ 260W) at 20.0A is effectively controlled, allowing more electrical energy to be converted into effective cooling capacity and delivering outstanding energy efficiency. The substrate utilizes a sintering process combining 96% alumina ceramic (0.76 mm) and 0.4 mm oxygen-free copper. The relatively thick copper layer ensures uniform heat dissipation across the extra-large 120 mm × 80 mm surface area, preventing localized hot spots. It comes standard with 18 AWG silicone-coated leads (300 mm in length), capable of safely handling the high current of 20.0 A. The 704 silicone rubber perimeter seal provides excellent moisture, dust, and shock resistance. The all-solid-state design ensures precision operation with zero noise and zero vibration. The recommended mounting pressure is up to 24.0 kg (0.25 kg/cm²), ensuring a tight fit between the extra-large cooling plate, the heat sink, and the surface being cooled, effectively reducing contact thermal resistance and withstanding vibrations and impacts in industrial environments.
This product is typically used in applications such as temperature control for top-tier, high-power large industrial laser modules, heat dissipation for large industrial equipment, high-performance medical devices, and high-power communication base stations. It is the premier flagship choice for cooling applications requiring extreme power density in extra-large, high-surface-area spaces.
