The TEC1-24104 is a high-performance single-stage thermoelectric cooling Peltier module designed for precise active temperature control and solid-state thermal management. Featuring a 60×60mm large-area cooling surface and 241 thermocouple pairs, this thermoelectric cooler delivers reliable medium-power cooling and heating performance without compressors, refrigerants, or moving mechanical parts. With outstanding cooling efficiency, fast thermal response, and reversible temperature adjustment, the module enables accurate constant-temperature control for various industrial, commercial, and laboratory applications. Its solid-state structure ensures silent operation, high stability, and long service life, making it a standard and cost-effective solution for modern precision thermal systems.

1. 60*60mm Peltiers Core Specifications

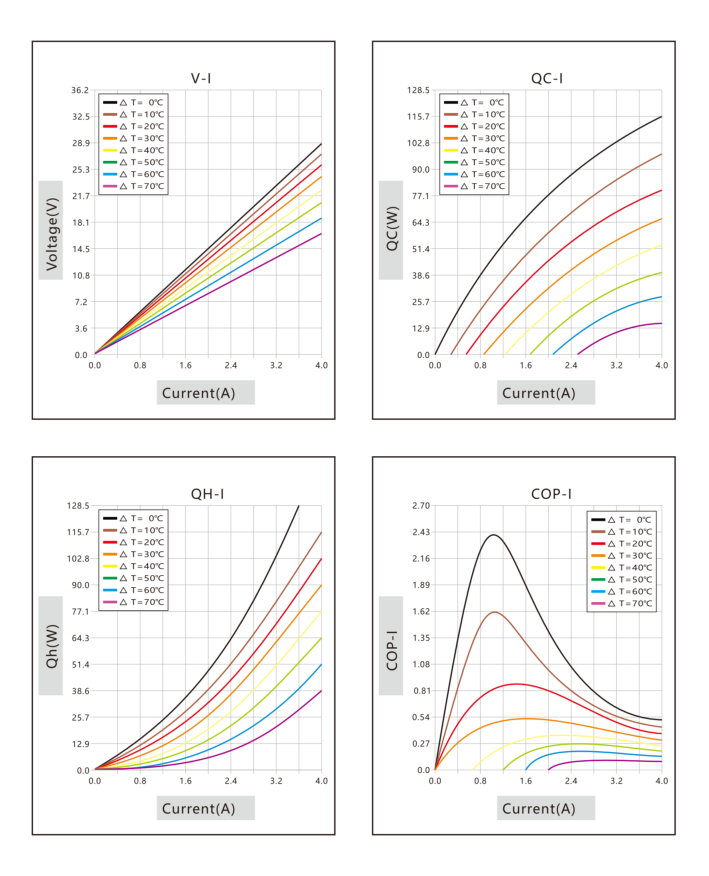

All technical parameters are tested under standard ambient conditions (hot side temperature Th=27℃) to ensure accuracy and consistency. The TEC1-24104 features a maximum operating current of 4.0A and a maximum voltage of 29.2V. It achieves a maximum cooling power of 67.48W and a maximum temperature difference of 68℃ under no-load conditions, providing stable and efficient heat dissipation and cooling capacity for medium-load scenarios. The module features a standard dimension of 60×60mm with strict flatness and thickness tolerances, ensuring tight and uniform fitting with heat sinks and water cooling assemblies. Its internal resistance is stabilized at approximately 4.1Ω with excellent batch consistency. The working temperature range covers -50℃ to 100℃, adapting to complex and variable operating environments.

2. Coolers Structural Design & Manufacturing Technology

Adopting advanced single-stage laminated packaging technology, the TEC1-24104 module is built with high-purity thermoelectric crystal grains with uniform arrangement and high energy conversion efficiency. Double-layer high-density alumina ceramic substrates are applied on both sides, offering superior thermal conductivity, electrical insulation, high-temperature resistance, and structural rigidity. The overall sealing structure uses high-temperature resistant silicone glue to fully encapsulate internal components, effectively preventing damage from moisture, dust, and oil contamination. The integrated solid-state structure eliminates mechanical wear, vibration noise, and fatigue failure, delivering excellent shock resistance and environmental adaptability for long-term continuous operation.

3. Product Performance Advantages of 60×60mm thermoelectric cooling module

High Cooling Efficiency: Equipped with 241 pairs of thermocouples and a 60mm large heat exchange area, the module balances cooling power and temperature difference performance, providing faster cooling response and higher thermal conversion efficiency than conventional modules of the same size.

Dual-Way Temperature Control: The Peltier module supports bidirectional cooling and heating. Forward current realizes rapid cooling, while reverse current achieves stable heating, meeting diversified constant-temperature maintenance requirements.

Excellent Compatibility & Stability: Standard electrical parameters match mainstream industrial temperature control drive systems. The flat and regular surface ensures perfect contact with heat sinks, reducing thermal resistance and improving overall heat exchange uniformity. With consistent internal resistance and stable output performance, it supports mass installation and long-term continuous operation.

Eco-Friendly & Low Maintenance: Adopting fully solid-state cooling technology without refrigerant emission or mechanical friction, the module is environmentally friendly, pollution-free, and maintenance-free throughout its service cycle.

4. Quality & Compliance Standards

The TEC1-24104 Peltier cooler is manufactured in strict accordance with international thermoelectric module industry standards and electronic product safety specifications. All raw materials and production processes comply with environmental and RoHS compliance requirements. Each finished module undergoes strict batch testing including electrical performance inspection, temperature difference verification, insulation voltage testing, and dimensional calibration. Stable performance, reliable insulation, and consistent quality ensure full compliance for commercial, industrial, and medical device supporting applications.

🔷 Product Applications

The TEC1-24104 is a single-stage high-power thermoelectric Peltier cooler with a 60×60mm large ceramic surface and 241 thermocouple pairs. Featuring stable medium cooling capacity, wide temperature difference range, solid-state reliability, vibration resistance, and reversible cooling/heating function, this module is widely adopted in precision temperature control systems across industrial, commercial, laboratory, medical, and mobile equipment fields. Without compressors, refrigerants, or moving parts, the module provides clean, silent, and maintenance-free thermal management solutions that fully comply with global electronic product safety and environmental standards.

1. Peltier Cooler For Laboratory Precision Temperature Control Systems

The TEC1-24104 module delivers uniform heat exchange and stable temperature output, making it highly suitable for laboratory precision instrument thermal management. It is commonly applied in small laboratory thermostatic chambers, experimental sample low-temperature preservation units, reagent constant-temperature maintenance devices, optical instrument temperature stabilization systems, and analytical testing equipment. Its fast thermal response and low-temperature fluctuation ensure consistent experimental accuracy and repeatable test data. The vibration-free and low-noise design meets strict laboratory environmental requirements for continuous 24-hour operation.

2.Peltier module For Industrial Equipment Thermal Management

For industrial scenarios requiring long-duration continuous operation, the TEC1-24104 provides reliable active cooling and constant-temperature control. The 60×60mm large contact area effectively reduces thermal resistance and improves overall heat dissipation uniformity. Typical industrial applications include industrial precision detector temperature control, automation sensor module cooling, industrial chassis local heat dissipation, laser equipment auxiliary cooling, machine tool monitoring component temperature stabilization, and mini liquid cooling circulation systems. The module’s sealed packaging structure offers excellent dustproof, moisture-proof, and anti-aging performance, adapting to complex industrial working conditions and preventing equipment temperature drift and overheating failure.

3. Commercial & Consumer Thermostatic Equipment

With green environmental protection, zero refrigerant, silent operation, and simple structural integration advantages, the TEC1-24104 is widely used in medium-sized commercial refrigeration and constant-temperature devices. Typical applications include commercial mini refrigerators, intelligent thermostatic storage cabinets, desktop low-temperature holding equipment, beverage constant-temperature control modules, small supermarket display cooling devices, and self-service equipment internal heat dissipation systems. Supporting bidirectional cooling and heating conversion, the module enables intelligent temperature adjustment for all seasons, meeting energy-saving and lightweight design requirements of modern commercial appliances.

4. Thermoelectric Cooling Module For Medical and Biological Instrumentation

The TEC1-24104 Peltier module features clean operation, non-polluting materials, stable insulation performance, and high operational safety, complying with general medical auxiliary equipment standards. It is commonly used in mini medical low-temperature storage devices, biological sample thermostatic holding equipment, biochemical analysis instrument temperature control units, and portable medical cooling systems. As an auxiliary electronic thermal management component, it provides precise and stable temperature control without direct contact with human bodies or medical reagents, ensuring safe and compliant application in medical-grade supporting systems.

5.Thermoelectric Cooling Element For Vehicle and Mobile Thermal Control Systems

Thanks to its strong shock resistance, wide working temperature range, and adaptability to unstable voltage environments, the module is ideal for vehicle-mounted and outdoor mobile devices. Typical applications include car mini refrigerators, vehicle thermostatic fresh-keeping boxes, vehicle-mounted instrument heat dissipation systems, and field portable temperature-control equipment. It maintains stable cooling and heating performance under bumpy, high-low temperature alternating, and fluctuating power conditions, satisfying mobile thermal management demands.

6. TEC Coolers For Environmental Humidity & Temperature Regulation Equipment

By utilizing the reversible thermoelectric effect, the TEC1-24104 can realize both cooling dehumidification and heating insulation. It is widely integrated in small constant temperature and humidity cabinets, intelligent moisture-proof storage boxes, file preservation equipment, and miniature environmental test chambers. It effectively controls surface condensation, stabilizes ambient temperature, and improves the stability and service life of precision stored goods and electronic devices.

7. Compliance Application Statement

1. The TEC1-24104 is a professional industrial thermoelectric electronic component, designed for system integration rather than standalone cooling equipment use.

2. The product contains no hazardous substances, complies with RoHS and general electronic environmental protection standards, and supports compliant mass production for civilian, commercial, and industrial terminal products.

3. To ensure safe and standardized operation, the module must be installed with matched heat dissipation structures, insulation protection, and temperature control circuits. Bare operation under water immersion, strong corrosion, flammable and explosive environments is prohibited.

4. All listed application scenarios are conventional, industry-recognized, and legally compliant, without exaggerated functional descriptions, fully suitable for official product manuals, enterprise technical documents, and cross-border e-commerce product descriptions.

🔷Product Structure

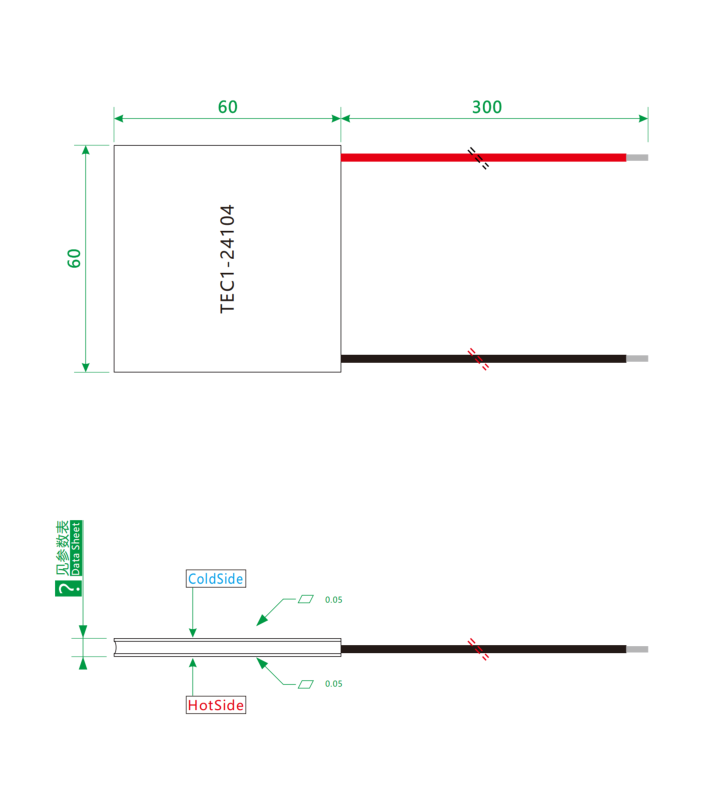

The TEC1-24104 is a standard single-stage solid-state thermoelectric cooling module engineered with a mature laminated assembly structure, featuring a 60×60mm large-format flat outer dimension and 241 pairs of high-performance thermoelectric couples.

🔷 Operation Principle

The TEC1-24104 thermoelectric cooling module operates based on the fundamental physical phenomenon known as the Peltier Effect, which realizes active heat transfer and precise temperature control through solid-state electrothermal conversion. Different from traditional compression refrigeration systems that rely on mechanical motion and chemical refrigerants, this module achieves bidirectional cooling and heating purely by adjusting DC input current and voltage, delivering clean, stable, and responsive thermal management without mechanical noise, vibration, or fluid consumption. As a single-stage thermoelectric component with 241 pairs of PN semiconductor junctions and a 60×60mm large heat-exchange surface, the product features uniform heat conversion efficiency and consistent temperature control performance for medium-power precision cooling scenarios.

1. Basic Thermoelectric Conversion Theory

The core working principle relies on carrier heat transfer inside semiconductor materials. The TEC1-24104 module consists of densely arranged N-type and P-type thermoelectric grains. When a direct current passes through the series-connected PN junction array, electrons and holes generate directional migration inside the semiconductor crystals. During carrier movement, heat energy is continuously absorbed from one side and released from the other side, forming a stable temperature difference between the two ceramic substrate surfaces.

Under standard DC driving conditions, the current direction determines the thermal direction: one surface acts as the cold side to absorb ambient heat for cooling, while the other surface acts as the hot side to export accumulated heat for heat dissipation. Reversing the input current will swap the cold and hot sides, enabling reversible heating function. This bidirectional adjustable characteristic is the core theoretical basis for constant-temperature maintenance of the TEC1-24104 module.

2. Internal Heat Transfer Mechanism

With 241 groups of high-consistency thermoelectric couples working synchronously, the TEC1-24104 forms a uniform and efficient internal heat transfer network. After power-on, each PN junction independently completes heat absorption and heat release circulation. The 60×60mm large-area flat structure ensures synchronous thermal response of the entire working surface, effectively avoiding local temperature imbalance and heat concentration caused by insufficient coverage of small-size modules.

The high-thermal-conductivity alumina ceramic substrates on both sides serve as thermal transition layers. The cold-side ceramic quickly collects environmental heat and conducts it to the internal semiconductor grains; the hot-side ceramic rapidly exports the converted heat to external heat dissipation structures such as heat sinks and water-cooling plates. This continuous closed-loop heat migration realizes sustained cooling and temperature reduction of the target working environment.

3. Temperature Difference and Power Regulation Principle

The cooling capacity and temperature difference of the TEC1-24104 are linearly adjustable within the rated working range by modifying the input DC voltage and current. When the working current increases gradually, the carrier migration speed accelerates, the single-cycle heat transfer capacity increases, and the module outputs higher cooling power to form a larger temperature difference. When the current decreases, the cooling power drops accordingly to achieve low-power constant-temperature operation.

Under the standard test condition (Th=27℃), the module reaches its optimal working efficiency within the rated current range, achieving a maximum temperature difference of 68℃ and stable medium-power cooling output. Reasonable power adjustment can effectively avoid excessive current-induced thermal saturation and performance attenuation, ensuring long-term stable and low-loss operation of the module.

4. Constant-Temperature Control Logic

Cooperating with an external professional temperature control circuit, the TEC1-24104 realizes intelligent closed-loop constant-temperature control. The temperature sensor feeds back real-time ambient temperature data to the control system. When the actual temperature is higher than the set value, the module increases cooling power to reduce the temperature; when the temperature is lower than the set threshold, the system adjusts current or reverses polarity to switch to heating mode. This real-time dynamic adjustment maintains high-precision constant-temperature status within a fixed range.

5. Working Characteristics and Compliance Principle Statement

The TEC1-24104 adopts pure solid-state electric-thermal conversion working mode, with no mechanical moving parts, no refrigerant consumption, no chemical emissions, and no operating noise. The working principle conforms to green energy-saving and environmental protection standards, fully complying with RoHS and international electronic product safety specifications.

It must be noted that the thermoelectric module generates heat while working. To ensure normal operation and service life, the hot side must be equipped with a matched heat dissipation device. Professional driving and heat dissipation configuration can prevent thermal accumulation failure and ensure that the module works within the compliant and safe parameter range for a long time.
