🔷Basic Performance Spec
| Type Mode | Chip | ▲Tmax(°C) | ACR ohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
|---|
| TEC1-24110 | K10 | 60 | 2.26 | 29 | 10 | 290 | 60x60x3.4 |
| K12 | 65 | | | | | 60x60x3.6 |
| K14 | 70 | | | | | 60x60x3.8 |
🔷Additional Performance Spec
| Specification Item | Description |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen-Free Copper 0.4mm, sintered process |
| Lead Wire | Extra-soft silicone wire, 18 AWG, L = 300mm |
| Terminal | Standard product without terminals; can be installed upon request |
| Assembly Pressure | 9 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |
🔷Performance Curve
🔷Product Overview

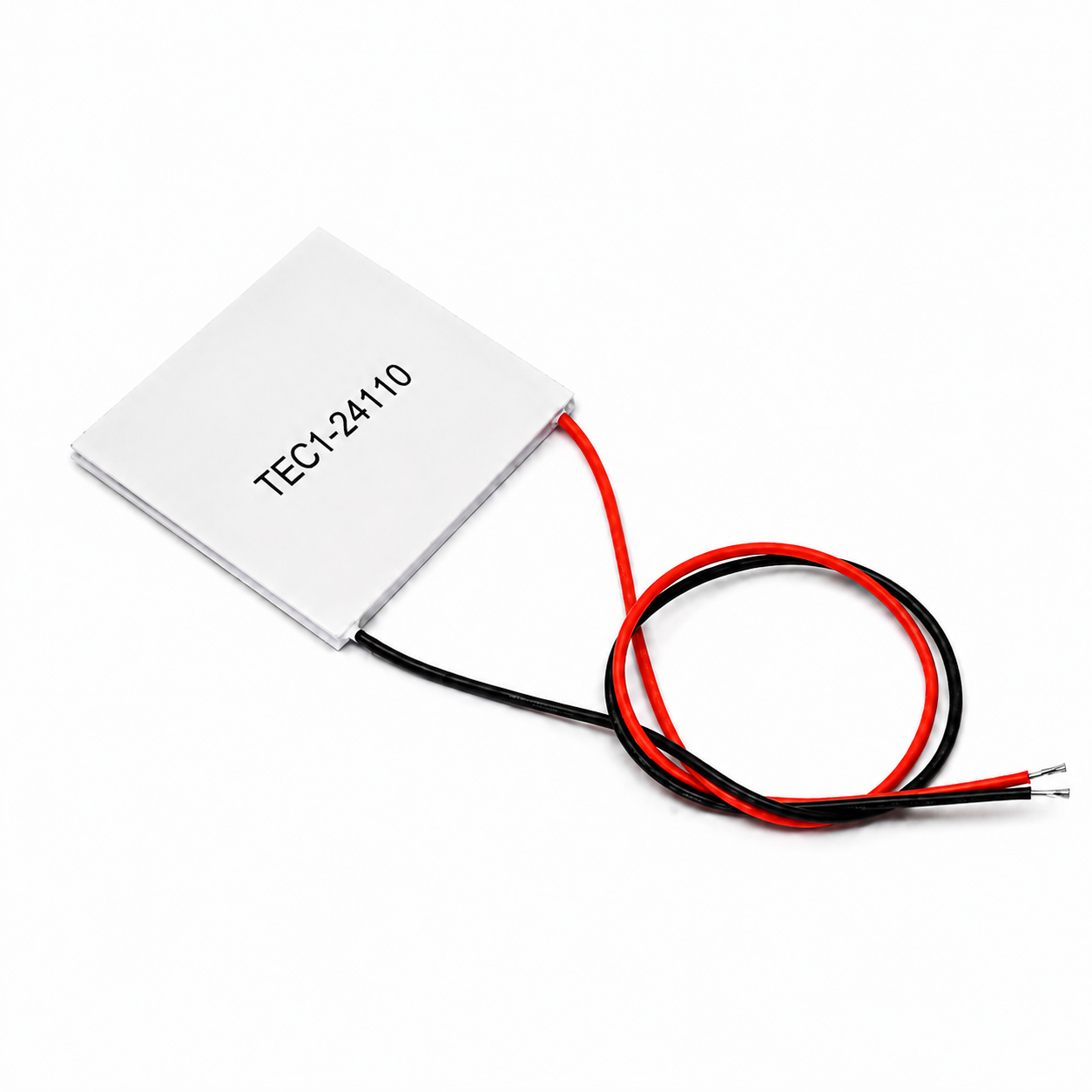

TEC1‑24110 is a max-power 60×60mm single stage peltier cooler, belonging to high current thermoelectric cooling module series. Different from large size 100×100 peltier element and compact small-size peltier, this model balances installation space and peak cooling power. It supports bidirectional cooling and heating via reversing DC power. Widely used in industrial chiller, laser cooling, semiconductor temperature control, peltier refrigeration system and high-load lab equipment thermal control. As a professional peltier manufacturer, we support wholesale thermoelectric cooler, bulk peltier element supply and OEM custom specification peltier module.
🔷Product Features
Max-power 60×60mm single stage peltier design, peak cooling power up to 290W
Rated 29V 10A high current, equipped with 18 AWG heavy-duty lead wire for stable power transmission

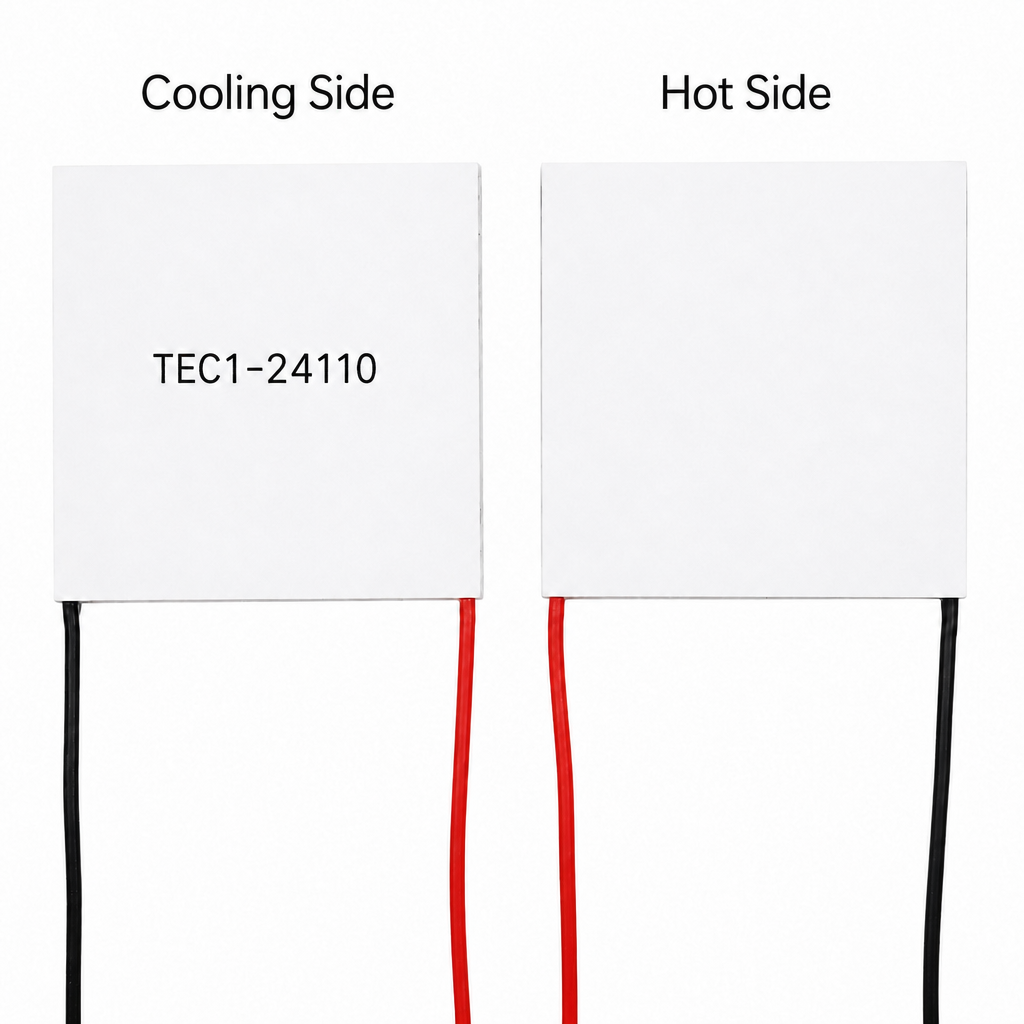

High delta T performance, reliable bidirectional cooling and heating
High strength alumina ceramic substrate, excellent insulation and thermal conductivity
Suitable for heavy-load continuous thermal control projects
Support OEM custom lead, connector and custom peltier cooling plate assembly

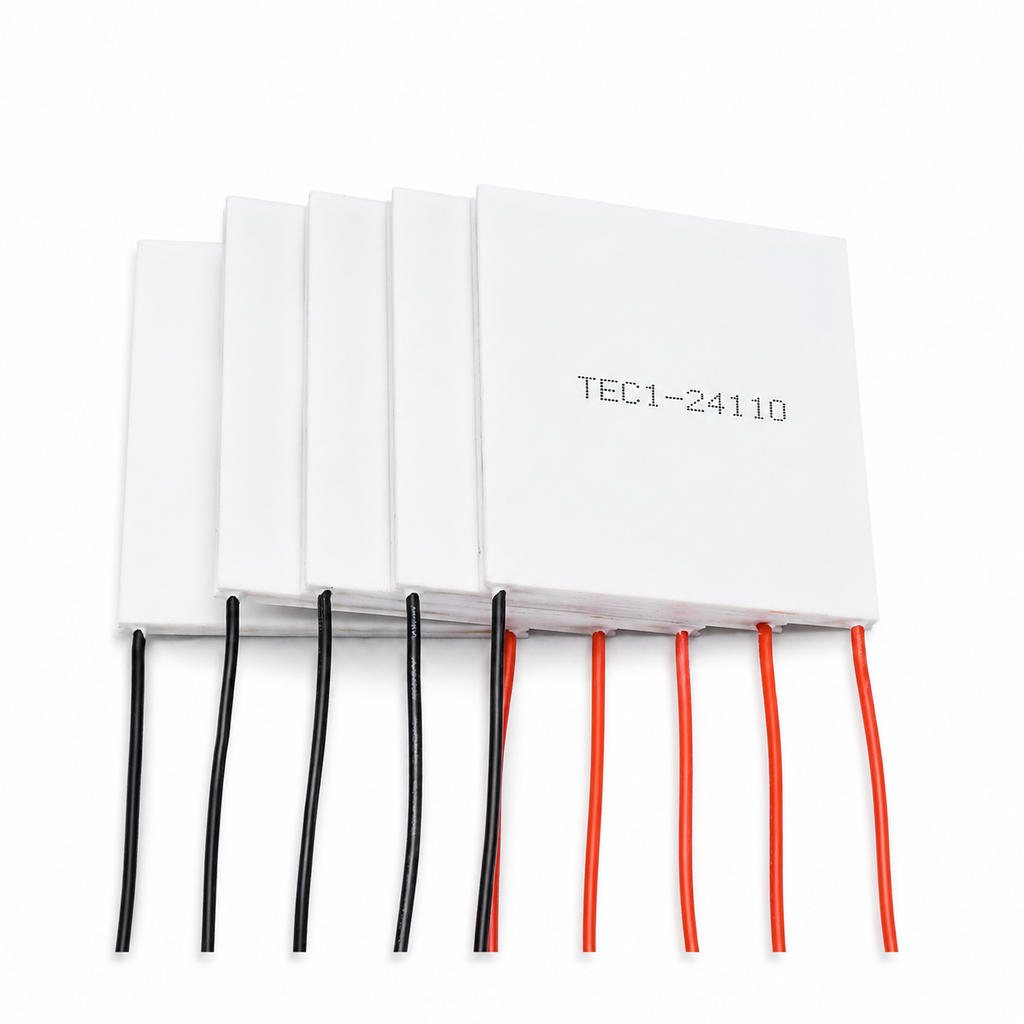

Factory direct supply, available for wholesale and bulk peltier procurement
🔷Product Structure
TEC1‑24110 peltier cooler adopts classic sandwich laminated structure. Upper and lower layers are high thermal conductivity alumina ceramic substrates. The inner layer consists of bismuth telluride thermoelectric grain array and copper conductive electrodes. Surrounding sealing layers prevent moisture penetration and mechanical damage, extending the service life of the high current peltier module under long-time working conditions.
🔷Product Packaging
Standard anti-static shockproof packaging for TEC1‑24110 thermoelectric cooling module, with buffer protection to avoid damage during logistics. Custom packaging solutions can be provided for wholesale and bulk order customers.
🔷FAQ
Q: Can TEC1‑24110 work continuously under full 10A rated current?
A: Short-term full-current testing is supported. For long-term stable operation, we recommend running at 70%-80% rated current to reduce thermal stress and extend module lifespan.
Q: Can you customize this thermoelectric cooling module for special cooling equipment?
A: Yes, we provide OEM service. Custom wire length, terminal connector, surface processing and custom peltier cooling plate assembly are available according to customer drawings.
Q: What power supply do I need to drive TEC1‑24110 peltier cooler normally?
A: The matched DC power supply needs to stably output up to 29V and continuous 10A current. Power supply with insufficient current output cannot achieve the full cooling performance of this high current peltier module.
Q: Can I get samples of TEC1‑24110 thermoelectric cooling module for testing?
A: Sample orders are acceptable, sample cost and freight will be quoted separately.
Q: Are you a peltier module supplier or trading company?
A: We are a professional peltier manufacturer with mature production lines, supporting wholesale thermoelectric cooler and bulk peltier element supply.
