🔷Thermoelectric Cooling Element Basic Performance Spec
| Type Mode | Chip | ▲Tmax(°C) | ACR ohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
|---|
| TEC1-24108 | K10 | 60 | | | | | 60x60x3.4 |
| K12 | 65 | 2.83 | 29 | 8 | 232 | 60x60x3.6 |
| K14 | 70 | | | | | 60x60x3.8 |
🔷Thermoelectric Cooling Device Additional Performance Spec
| Specification Item | Description |
|---|
| Substrate | 96% Alumina 0.76mm + Oxygen-Free Copper 0.4mm, sintered process |
| Lead Wire | Extra-soft silicone wire, 18 AWG, L = 300mm |
| Terminal | Standard product without terminals; can be installed upon request |
| Assembly Pressure | 9 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

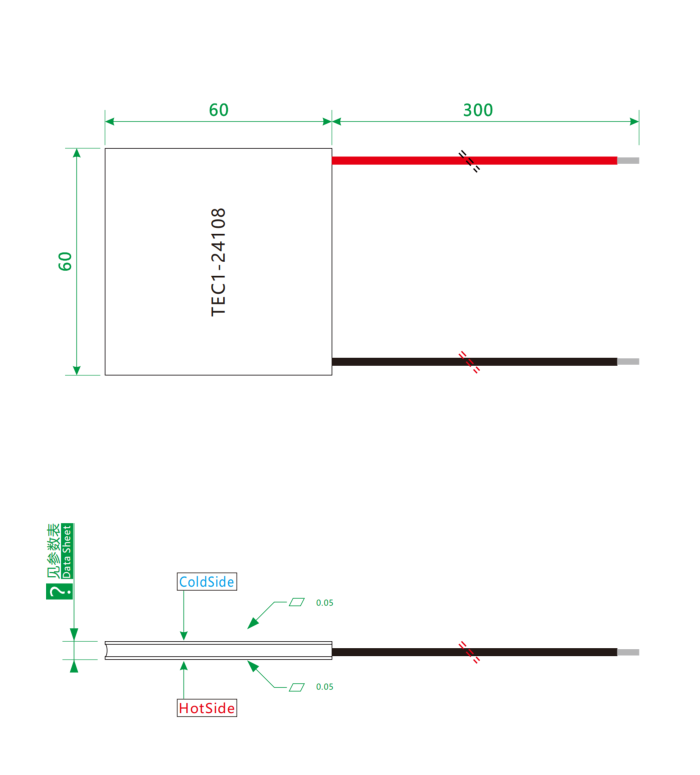

🔷Thermoelectric Generator Modules Product Drawing
![]()
🔷Thermoelectric Generator Modules Product Drawing
![]()
🔷Peltier Cooling Element Product Overview Peltier

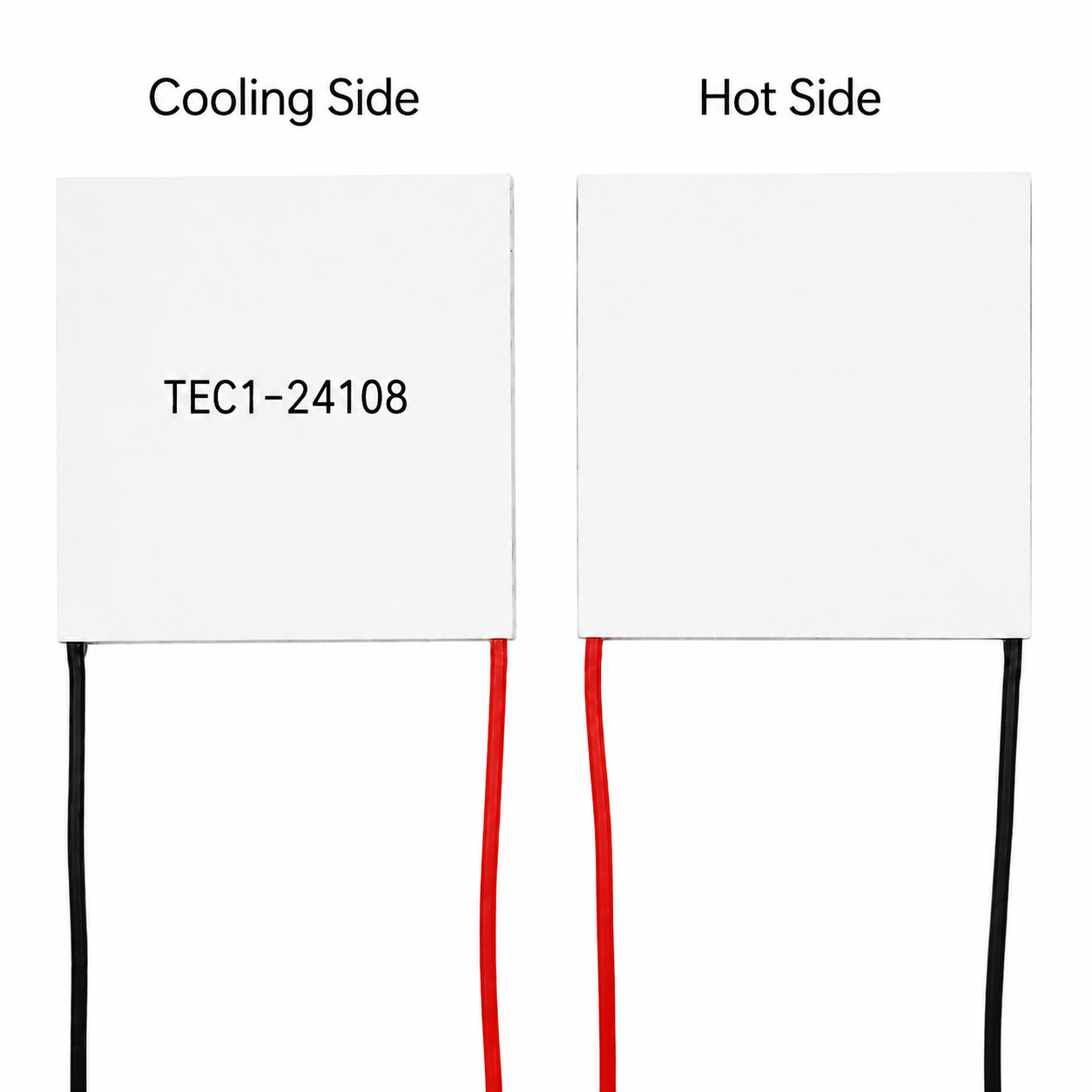

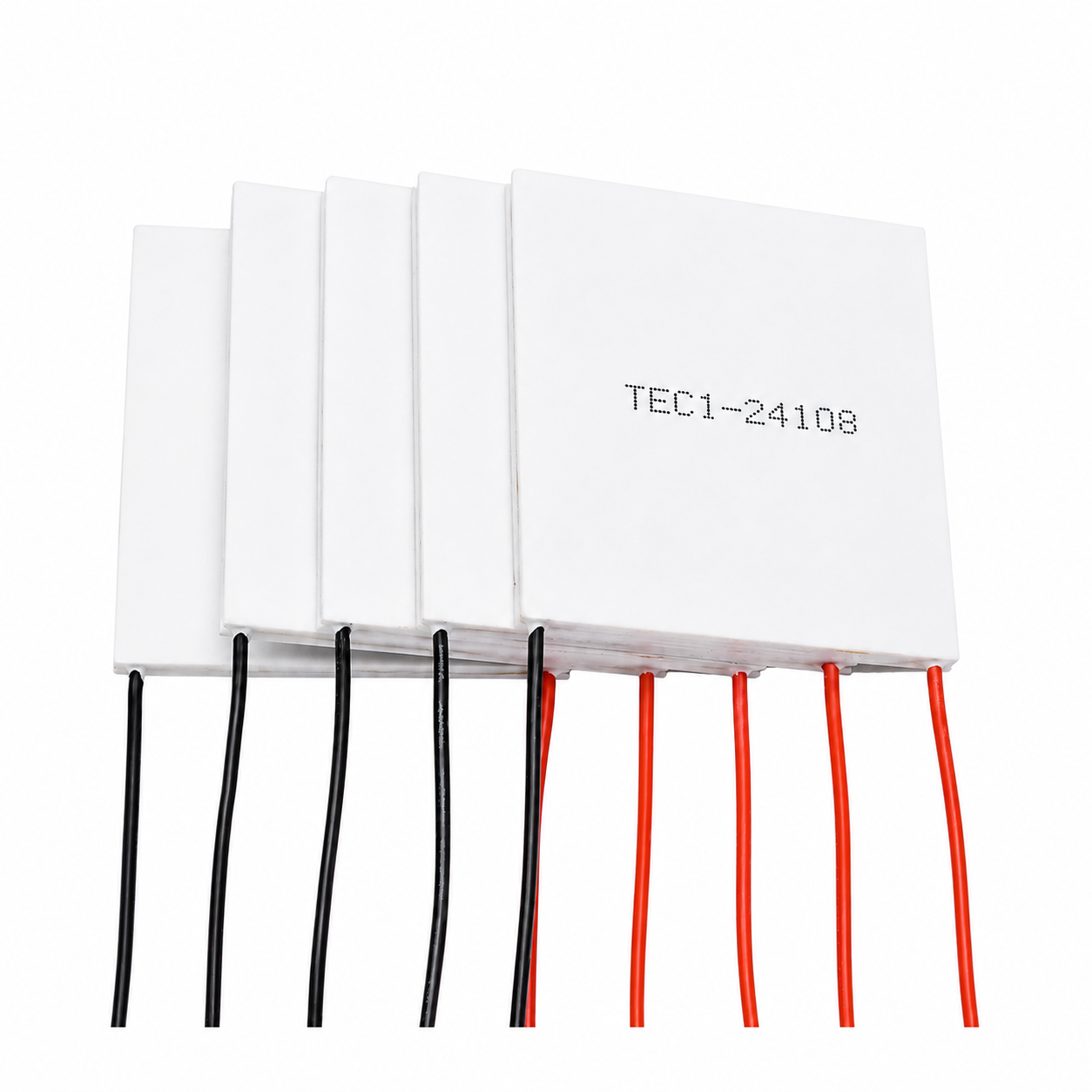

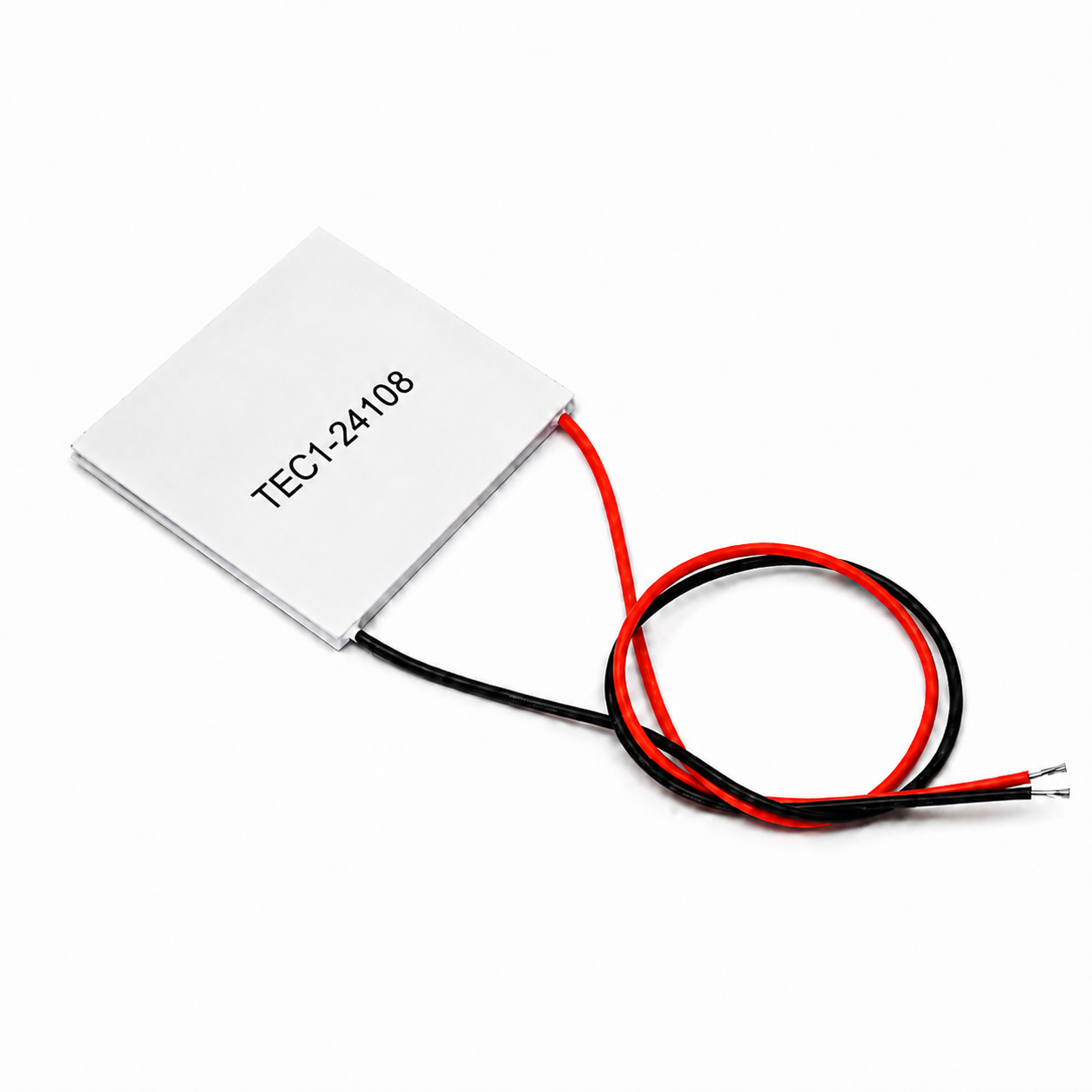

The TEC1-24108 is a high-power single-stage thermoelectric Peltier cooler with a standard dimension of 60×60mm, designed for industrial-grade precision thermal management and solid-state temperature control scenarios. Adopting high-quality bismuth telluride thermoelectric materials and high-insulation alumina ceramic substrates, this module features excellent thermal conductivity, stable electrical performance, and reliable structural flatness, ensuring efficient and consistent heat transfer in long-term continuous operation.
Working on the classic Peltier effect, this DC-powered thermoelectric module realizes active heat transfer without any compressors, refrigerants, or moving parts. It supports reversible cooling and heating functions by switching the power supply polarity, enabling bidirectional temperature regulation to meet diverse constant-temperature control demands. The enlarged 60×60mm large-area contact surface provides more uniform heat distribution and higher load-bearing capacity compared with small-size Peltier modules, effectively improving overall cooling/heating efficiency and avoiding local temperature deviation.
Built with strict industrial production and testing standards, the TEC1-24108 Peltier cooler boasts low noise, zero vibration, fast thermal response, and outstanding durability. It is fully RoHS compliant, meeting environmental and safety certification requirements for global cross-border sales. Widely adaptable to matched heat sinks and intelligent temperature controllers, this module is a core thermal control component for commercial, industrial, laboratory, and customized DIY cooling and heating equipment.
Important Operational Note: A professional heat dissipation device (heat sink + cooling fan/water cooling system) must be installed on the hot side during operation. Insufficient heat dissipation will cause overheating and permanent damage to the module.
🔷Product Applications
Thanks to its large‑size 60×60 mm heat‑transfer surface, high cooling capacity and reversible cooling‑heating performance, the TEC1‑24108 thermoelectric module is well‑suited for medium‑to‑high‑load thermal‑control projects that require uniform temperature distribution across a wide mounting area.
TEC1‑24108 Peltier For Industrial Equipment & Precision Instrument Temperature Stabilization
This Peltier cooler is widely used for constant‑temperature control of industrial enclosures, electronic cabinet cooling, laser diode temperature stabilization, optical component heat management and sensor temperature calibration equipment. Its vibration‑free operation will not interfere with high‑precision electronic and optical systems, delivering long‑run stable thermal regulation for continuous‑shift industrial devices.
60×60mm Peltier Cooler For Medical & Laboratory Thermostatic Devices
It serves as a core refrigeration component for laboratory cooling plates, small‑size constant‑temperature baths, reagent storage boxes, biological sample preservation equipment and diagnostic instrument thermal systems. The bidirectional cooling‑heating function allows users to maintain precise set‑point temperatures for sensitive test samples in medical and scientific research scenarios.
TEC Cooler for Liquid Cooling & Circulating Water Chiller Systems
With a large heat‑exchange contact area, the 60×60 mm TEC1‑24108 module performs excellently for small‑capacity liquid cooling systems, water circulation chillers and industrial fluid temperature control. It can rapidly cool circulating water or other heat‑transfer liquids without bulky compressor refrigeration units.
Peltier Effect for Commercial Refrigeration & Portable Constant‑Temperature Equipment
Ideal for thermoelectric cold plates, custom‑built solid‑state refrigerators, beverage coolers, cosmetic cryotherapy machines, beauty skin‑care cooling instruments and small‑scale constant‑temperature cabinets. The no‑refrigerant design meets green‑product requirements for consumer and commercial end‑products.
Thermoelectric Cooling Module for Custom‑Built Projects & DIY Thermal‑Management Solutions
Popular among engineers and hobbyists for large‑area cold‑plate builds, high‑power thermostatic test platforms, home‑made cooling‑heating test benches and other non‑standard thermal‑control prototypes. When paired with NTC temperature sensors and digital thermostatic controllers, closed‑loop automatic temperature control can be easily achieved.
🔷 FAQ
Q: What makes TEC1‑24108 different from other 60×60mm peltier modules?
A: TEC1‑24108 is a high‑current 8A version with 18 AWG heavy‑duty leads, delivering 232W max cooling power. It suits high‑load projects such as liquid chillers and beauty cryotherapy equipment.
Q: Can I run this 8A thermoelectric module for 24‑hour continuous operation?
A: Yes, 24‑hour continuous operation is available, but you must keep sufficient hot‑side heat dissipation. Operating continuously close to 8A rated current will accelerate module aging; running at 70‑80% rated current extends service life greatly.
Q: Is TEC1‑24108 suitable for liquid cooling chiller builds?
A: Yes. Its large‑area 60×60mm ceramic surface works well for small‑capacity liquid circulating chillers. Please note that the liquid‑contact side still needs proper thermal interface and reliable hot‑side heat removal.
Q: Can I use a PWM temperature controller with this high‑current peltier cooler?
A: PWM controllers are compatible, but your controller must support 8A continuous output. Low‑current controllers cannot drive TEC1‑24108 to full performance.
Q: What wire gauge comes with TEC1‑24108?
A: Standard lead wire is heavy‑duty 18 AWG extra‑soft silicone wire for high‑current transmission. Custom terminal connectors can be added upon request.
Q: Does the price support fixed price?
A: Not supported, the offer will be adjusted according to market price and exchange rate changes.
Q: Can you produce according to customer samples?
A: Yes. We can develop new moulds or modify existing products to meet your requirements.
